TANGO25 Series
Manufacturer: Siretta
Beta
⌘K

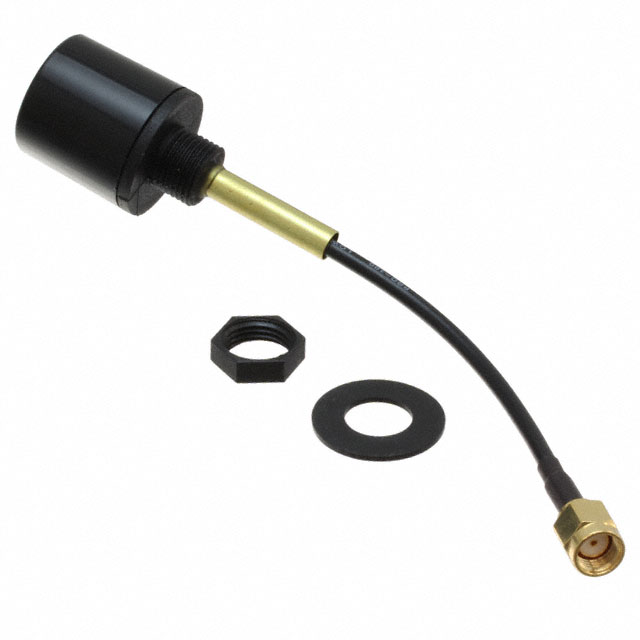

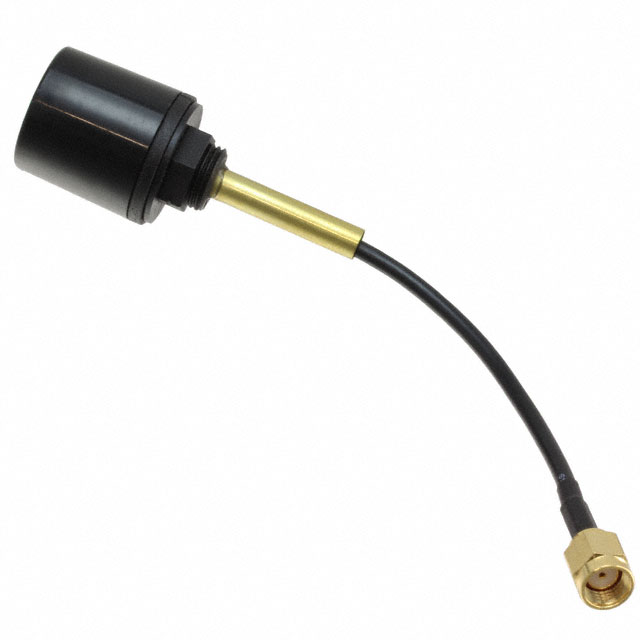

RF ANT 2.4GHZ PUCK RP-SMA MALE
| Part | Height (Max) [diameter] | Height (Max) [diameter] | Number of Bands | Mounting Type | Frequency (Center/Band) | Applications | RF Family/Standard | VSWR | Gain | Frequency Range [Max] | Frequency Range [Min] | Termination | Ingress Protection | Height (Max) [z] | Height (Max) [z] | Frequency Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siretta | 0.591 in | 15 mm | 1 | Panel Mount | 2.4 GHz | Bluetooth WLAN Zigbee™ | 802.15.4 Bluetooth WiFi | 1.5 | 3 dBi | 2.5 GHz | 2.4 GHz | RP-SMA Male | ||||
 Siretta | 2 | Panel Mount | Bluetooth WLAN Zigbee™ | 802.15.4 Bluetooth WiFi | 2 | 5 dBi | 2.5 GHz 5.8 GHz | 2.4 GHz 5.1 GHz | RP-SMA Male | IP65 | 0.866 in | 22 mm | Wide Band |
