CNN0 Series

Manufacturer: Techflex

Catalog

EXPAND SLEEVE 1/4" X 1000' BLK

Part	Type Attributes	Liquid Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Color	Features	Wall Thickness	Wall Thickness	Abrasion Protection	Operating Temperature [Min]	Operating Temperature [Max]	Type	Material	Length	Length	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Length [x]	Length [x]

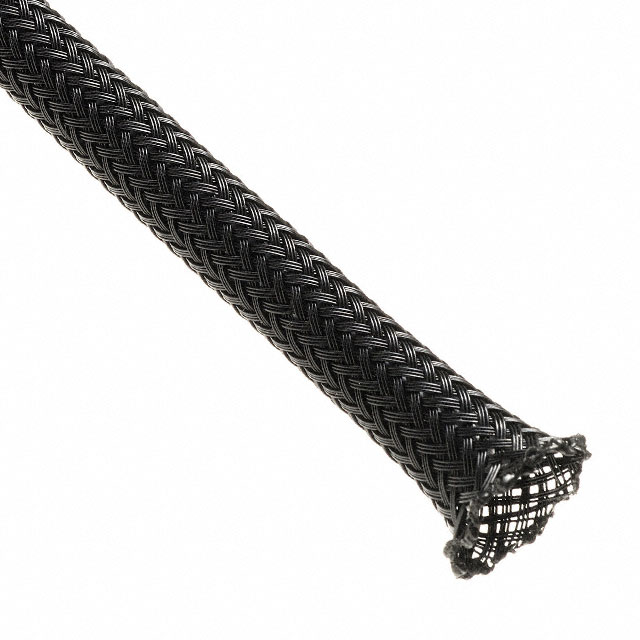

Techflex CNN0.25BK1000	Expandable	Gasoline Resistant	11.13 mm	0.438 "	Black	Chemical Resistant Clean Cut EMI Resistant Shielded	0.028 in	0.71 mm	Abrasion and Cut Resistant	-45 °C	150 °C	Sleeve	Carbonized Halogen Free Nylon	304.8 m	1000 ft

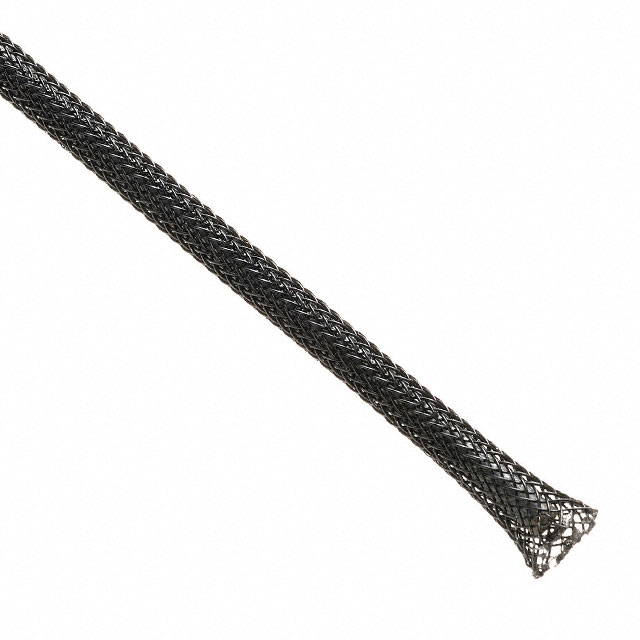

Techflex CNN0.13BK1000	Expandable	Gasoline Resistant	6.35 mm	0.25 in	Black	Chemical Resistant Clean Cut EMI Resistant Shielded	0.028 in	0.71 mm	Abrasion and Cut Resistant	-45 °C	150 °C	Sleeve	Carbonized Halogen Free Nylon	304.8 m	1000 ft	3.18 mm	0.125 in

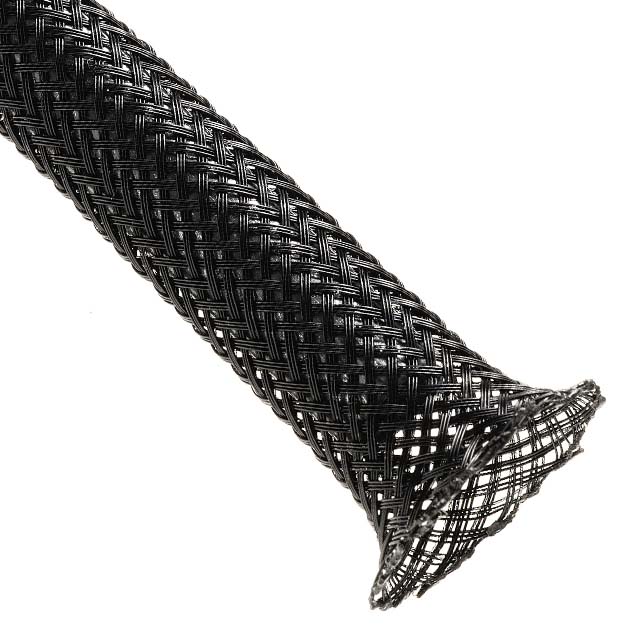

Techflex CNN0.38BK500	Expandable	Gasoline Resistant	15.88 mm	0.625 in	Black	Chemical Resistant Clean Cut EMI Resistant Shielded	0.028 in	0.71 mm	Abrasion and Cut Resistant	-45 °C	150 °C	Sleeve	Carbonized Halogen Free Nylon			9.53 mm	0.375 in	152.4 m	500 ft
