DM Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
D-SUB STANDARD CONNECTORS D*M HIGH RELIABLE D-SUB CONNECTORS
| Part | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Flange Feature | Contact Type | Termination | Contact Finish | Number of Rows [custom] | Features | Number of Positions | Current Rating (Amps) | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Connector Style | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Primary Material | Shell Material, Finish | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Backset Spacing | Backset Spacing | Shell Material, Finish [custom] | Shell Material, Finish [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

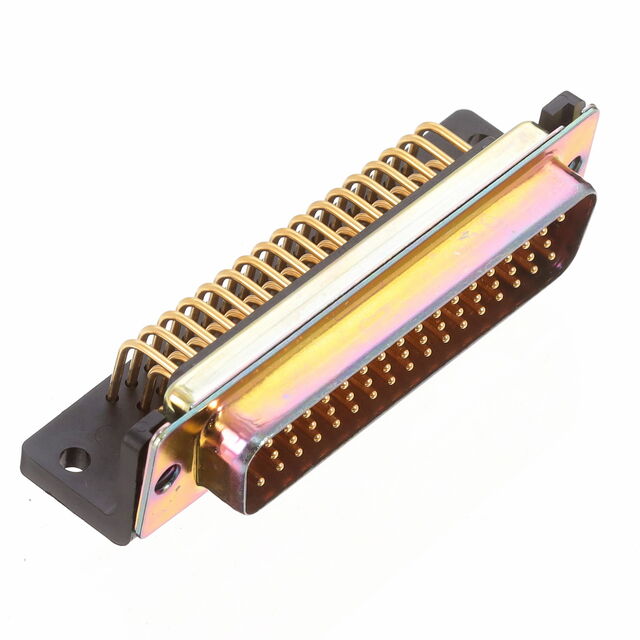

 ITT Cannon, LLC | Polycyclohexylenedimethylene Terephthalate (PCT) | Copper Alloy | -55 C | 150 °C | Black | Housing/Shell (Unthreaded) | Signal | Solder | Gold | 3 | Mounting Brackets | 50 | 7.5 A | Panel Mount Right Angle Through Hole | 5 | D DD | UL94 V-0 | D-Sub | Plug Male Pins | 50 µin | 1.27 µm | ||||||||
 ITT Cannon, LLC | Board Side (4-40) | Signal | Solder | Gold | 2 | Grounding Indents Mounting Brackets | 25 | 7.5 A | Panel Mount Right Angle Through Hole | UL94 V-0 | D-Sub | Plug Male Pins | 30 Áin | 0.76 Ám | Metal | Steel Tin-Nickel Plated | B DB | 3 | |||||||||||
ITT Cannon, LLC | Housing/Shell (Unthreaded) | Signal | Solder | Gold | 2 | 25 | 7.5 A | Panel Mount Right Angle Through Hole | UL94 V-0 | D-Sub | Plug Male Pins | Metal | B DB | 3 | 7.2 mm | 0.283 in | Yellow Chromate Plated Zinc | Steel | |||||||||||
ITT Cannon, LLC | Housing/Shell (Unthreaded) | Signal | Solder | Gold | 3 | 50 | 7.5 A | Panel Mount Right Angle Through Hole | 5 | D DD | UL94 V-0 | D-Sub | Plug Male Pins | Metal | 11.68 mm | 0.46 " | Yellow Chromate Plated Zinc | Steel | |||||||||||
ITT Cannon, LLC | |||||||||||||||||||||||||||||
ITT Cannon, LLC | |||||||||||||||||||||||||||||
ITT Cannon, LLC | |||||||||||||||||||||||||||||
ITT Cannon, LLC | Housing/Shell (Unthreaded) | Signal | Solder | Gold | 3 | 50 | 7.5 A | Panel Mount Right Angle Through Hole | 5 | D DD | UL94 V-0 | D-Sub | Receptacle Female Sockets | Metal | 11.68 mm | 0.46 " | Yellow Chromate Plated Zinc | Steel | |||||||||||
ITT Cannon, LLC | |||||||||||||||||||||||||||||
ITT Cannon, LLC | Housing/Shell (Unthreaded) | Signal | Solder | Gold | 2 | 25 | 7.5 A | Panel Mount Right Angle Through Hole | UL94 V-0 | D-Sub | Plug Male Pins | Metal | B DB | 3 | 7.2 mm | 0.283 in | Yellow Chromate Plated Zinc | Steel |
