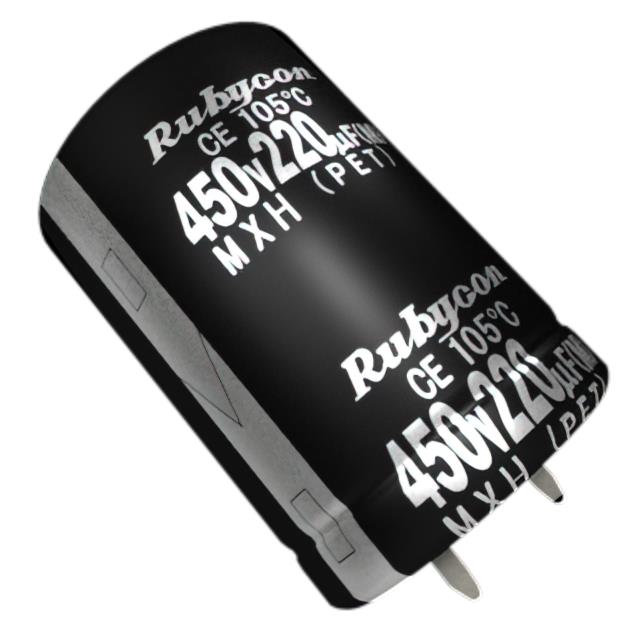

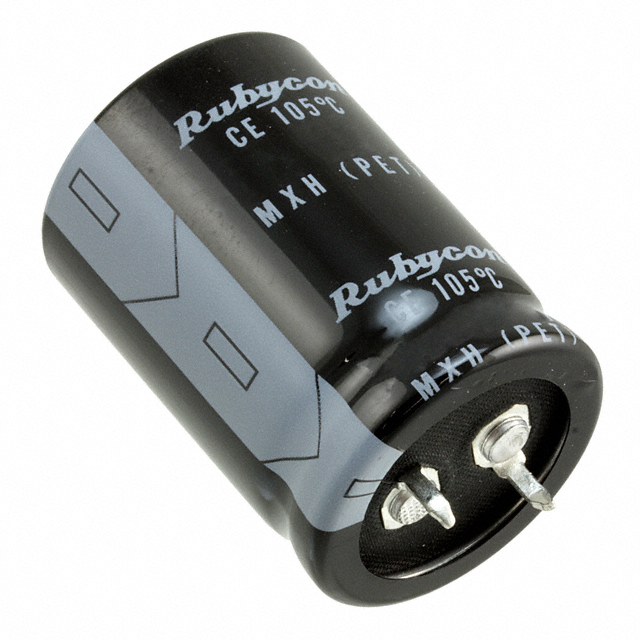

MXH Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN GENERAL PURPOSE ELECTROLYTIC CAPACITORS

Part	Polarization	Ripple Current @ High Frequency	Capacitance	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Applications	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Package / Case	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension
Rubycon 420MXH390MEFCSN25X50	Polar	2.702 A	390 µF	0.394 in	10 mm	1.93 A	2.047 in	52 mm	Through Hole	General Purpose	20 %	0.984 "	25 mm	2000 Hrs	Radial Can - Snap-In	420 V	105 ░C	-25 °C
Rubycon 550MXH68MEFCSN25X25			68 µF	0.394 in	10 mm	690 mA	1.063 in	27 mm	Through Hole	General Purpose	20 %	0.984 "	25 mm	3000 Hrs	Radial Can - Snap-In	550 V	105 ░C	-25 °C
Rubycon 600MXH82MEFCSN25X35		1.134 A	0.082 mF	0.394 in	10 mm	810 mA			Through Hole	General Purpose	20 %	0.984 "	25 mm	3000 Hrs	Radial Can - Snap-In	600 V	105 ░C	-25 °C	37 mm	1.457 in
Rubycon 600MXH68MEFCSN22X35	Polar		68 µF	0.394 in	10 mm	690 mA			Through Hole	General Purpose	20 %	0.866 "	22 mm	3000 Hrs	Radial Can - Snap-In	600 V	105 ░C	-25 °C	37 mm	1.457 in
Rubycon 475MXH470MEFCSN35X50	Polar	2.926 A	470 µF	0.394 in	10 mm		2.047 in	52 mm	Through Hole	General Purpose	20 %	1.378 "	35 mm	2000 Hrs	Radial Can - Snap-In	475 V	105 ░C	-25 °C
Rubycon 600MXH150MEFCSN25X55		1.708 A	150 µF	0.394 in	10 mm	1.22 A	2.244 "	57 mm	Through Hole	General Purpose	20 %	0.984 "	25 mm	3000 Hrs	Radial Can - Snap-In	600 V	105 ░C	-25 °C
Rubycon 400MXH150MEFCSN22X30	Polar	1.512 A	150 µF	0.394 in	10 mm	1.08 A			Through Hole	General Purpose	20 %	0.866 "	22 mm	2000 Hrs	Radial Can - Snap-In	400 V	105 ░C	-25 °C		1.26 in	32 mm
Rubycon 400MXH820MEFCSN30X60	Polar	3.864 A	820 µF	0.394 in	10 mm	2.76 A	2.441 in		Through Hole	General Purpose	20 %	1.181 "		2000 Hrs	Radial Can - Snap-In	400 V	105 ░C	-25 °C	62 mm			30 mm
Rubycon 600MXH100MEFCSN30X30	Polar	1.26 A	100 µF	0.394 in	10 mm	900 mA			Through Hole	General Purpose	20 %	1.181 "		3000 Hrs	Radial Can - Snap-In	600 V	105 ░C	-25 °C		1.26 in	32 mm	30 mm
