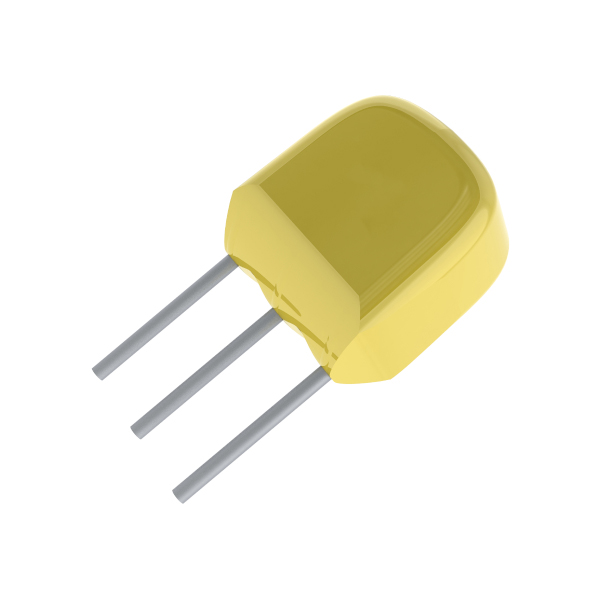

T398 Series

Manufacturer: KEMET

Catalog

TANTALUM CAPACITORS - SOLID LEADED 25V 1UF 10%

Part	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Type	Tolerance	Voltage - Rated	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Manufacturer Size Code	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	ESR (Equivalent Series Resistance)	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET T398A105K025AT	1 µF	9 mm	0.354 in	2.54 mm	0.1 in	Conformal Coated	10 %	25 VDC	0.189 in	4.8 mm	7.1 mm	0.28 in	A	Radial - 3 Leads	-55 C	125 °C	Through Hole	10 Ohm	General Purpose
KEMET T398H226K025AT	22 µF			2.54 mm	0.1 in	Conformal Coated	10 %	25 VDC	0.272 in	6.9 mm	7.1 mm	0.28 in	H	Radial - 3 Leads	-55 C	125 °C	Through Hole	1.5 Ohm	General Purpose	0.441 in	11.2 mm
KEMET T398F336M010AS	33 ÁF			2.54 mm	0.1 in	Conformal Coated	20 %	10 V	0.24 "	6.1 mm	7.1 mm	0.28 in	F	Radial - 3 Leads	-55 C	125 °C	Through Hole	2.1 Ohm	General Purpose
KEMET T398G475M050AT7301	4.7 µF			2.54 mm	0.1 in	Conformal Coated	20 %	50 VDC	0.248 in	6.3 mm	7.1 mm	0.28 in	G	Radial - 3 Leads	-55 C	125 °C	Through Hole	2.5 Ohm	General Purpose	0.441 in	11.2 mm
KEMET T398E106M016AS	10 µF	10.5 mm	0.413 "	2.54 mm	0.1 in	Conformal Coated	20 %	16 V	0.228 in	5.8 mm	7.1 mm	0.28 in	E	Radial - 3 Leads	-55 C	125 °C	Through Hole	3.2 Ohm	General Purpose
KEMET T398A105K035AT	1 µF	9 mm	0.354 in	2.54 mm	0.1 in	Conformal Coated	10 %	35 V	0.189 in	4.8 mm	7.1 mm	0.28 in	A	Radial - 3 Leads	-55 C	125 °C	Through Hole	8 Ohm	General Purpose
KEMET T398B225M025AT7301	2.2 µF			2.54 mm	0.1 in	Conformal Coated	20 %	25 VDC	0.189 in	4.8 mm	7.1 mm	0.28 in	B	Radial - 3 Leads	-55 C	125 °C	Through Hole	6 Ohm	General Purpose		0.366 in	9.3 mm
