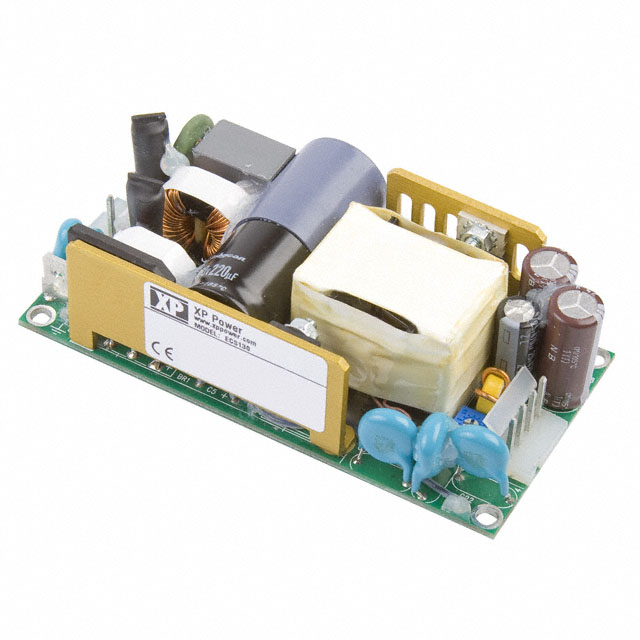

ECS130 Series

Manufacturer: XP Power

Catalog

AC/DC CONVERTER 48V 100W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Type	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Features	Number of Outputs	Voltage - Isolation	Current - Output 1	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Efficiency	Power (Watts)
XP Power ECS130US48	70 °C	-20 °C	CB	Open Frame	62368-1	80 VAC	264 VAC	ITE (Commercial) Medical	Adjustable Output DC Input Capable Universal Input	1	4000 V	2.7 A	48 V	50.8 mm	1.25 in	2 in	101.6 mm	31.8 mm	4 "	Chassis Mount	90 %	100 W 130 W
XP Power ECS130US15	70 °C	-20 °C	CB	Open Frame	62368-1	80 VAC	264 VAC	ITE (Commercial) Medical	Adjustable Output DC Input Capable Universal Input	1	4000 V	8.7 A	15 V	50.8 mm	1.25 in	2 in	101.6 mm	31.8 mm	4 "	Chassis Mount	90 %	100 W 130 W
XP Power ECS130US18	70 °C	-20 °C	CB	Open Frame	62368-1	80 VAC	264 VAC	ITE (Commercial) Medical	Adjustable Output DC Input Capable Universal Input	1	4000 V	7.3 A	18 V	50.8 mm	1.25 in	2 in	101.6 mm	31.8 mm	4 "	Chassis Mount	90 %	100 W 130 W
