21458-20 Series

Manufacturer: CNC Tech

Catalog

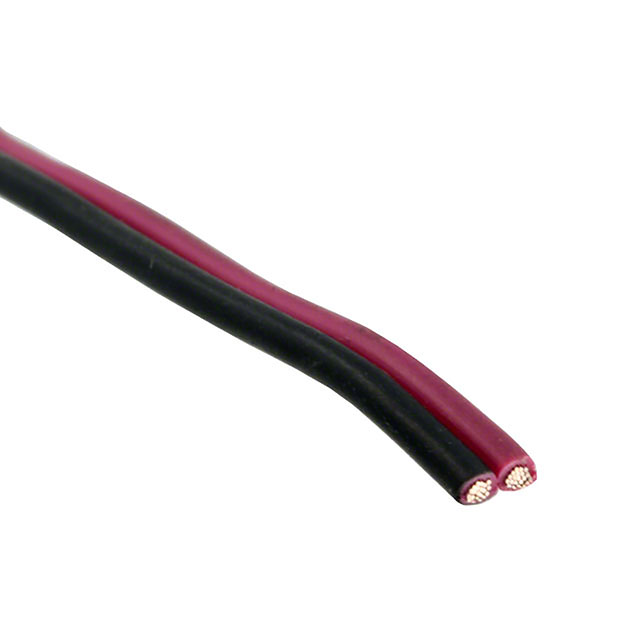

CABLE 2COND 20AWG BLK/RED 500'

Part	Length [x]	Length [x]	Conductor Material	Jacket (Insulation) Material	Jacket Color	Ratings	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Cable Type	Number of Conductors	Conductor Strand [diameter]	Conductor Strand [custom]	Length	Length	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
CNC Tech 21458-20-2-0500-0104-1-TS	25 ft 100 ft	7.62 m 30.5 m	Copper Tinned	Polyphenylene Ether (PPE)	Black Red	UL Style 21458	20 AWG	-10 °C	80 °C	0.381 mm	0.015 in	Multi-Conductor	2	0.0071 in	21	15.24 m 152.4 m	50 ft 500 ft	0.141 "	3.58 mm	300 VDC
CNC Tech 21458-20-2-0500-0102-1-TS	25 ft 100 ft	7.62 m 30.5 m	Copper Tinned	Polyphenylene Ether (PPE)	Black White	UL Style 21458	20 AWG	-10 °C	80 °C	0.381 mm	0.015 in	Multi-Conductor	2	0.0071 in	21	15.24 m 152.4 m	50 ft 500 ft	0.141 "	3.58 mm	300 VDC
CNC Tech 21458-20-2-0500-0402-1-TS	25 ft 100 ft	7.62 m 30.5 m	Copper Tinned	Polyphenylene Ether (PPE)	Red White	UL Style 21458	20 AWG	-10 °C	80 °C	0.381 mm	0.015 in	Multi-Conductor	2	0.0071 in	21	15.24 m 152.4 m	50 ft 500 ft	0.141 "	3.58 mm	300 VDC	33 AWG	21	0.133 in	3.38 mm
