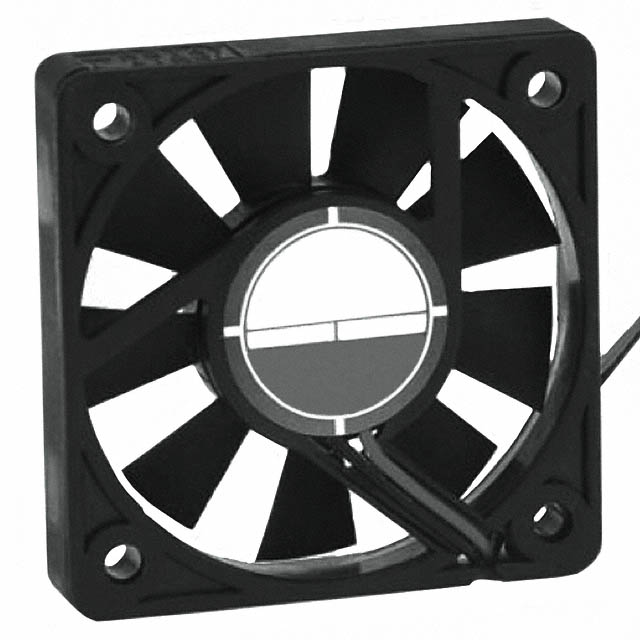

OD5210 Series

Catalog

FAN AXIAL 52X10MM 12VDC WIRE

Part	Lifetime @ Temp.	Material - Frame	Current Rating (Amps)	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Noise	Bearing Type	Static Pressure	Static Pressure	Fan Type	Approval Agency	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	RPM	Termination	Air Flow	Air Flow	Voltage - Rated	Width [y]	Features

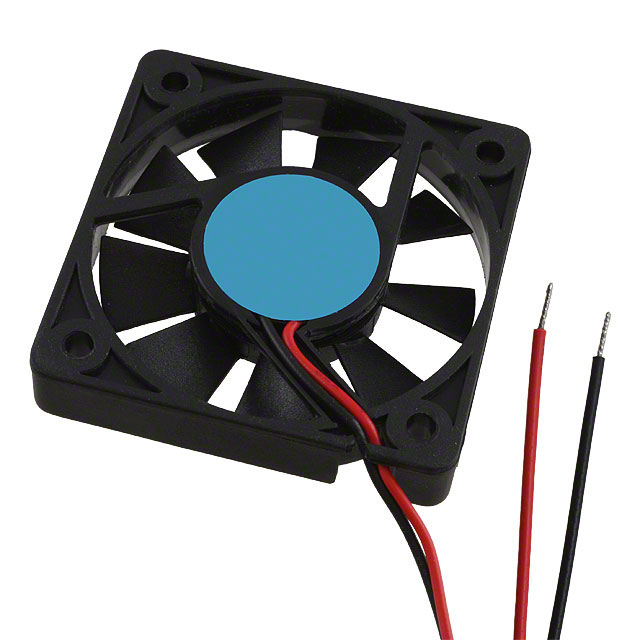

ORION FANS OD5210-12MB	45 °C 60000 Hrs	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	120 mA	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	17 VDC	8 V	80 °C	-20 ░C	32 dB	Ball	0.11 in H2O	27.4 Pa	Tubeaxial	cURus TUV	Square	52 mm	52 mm	5000 RPM	2 Wire Leads	10 CFM	0.28 m³/min	12 VDC	10 mm
ORION FANS OD5210-12HB	45 °C 60000 Hrs		140 mA	Polybutylene Terephthalate (PBT)	17 VDC	8 V	80 °C	-20 ░C	36 dB	Ball	0.14 in H2O	34.9 Pa	Tubeaxial	cURus TUV	Square	52 mm	52 mm	6000 RPM	2 Wire Leads	12 CFM	0.336 mł/min	12 VDC	10 mm
ORION FANS OD5210-05MB	45 °C 60000 Hrs		0.21 A	Polybutylene Terephthalate (PBT)	5.75 VDC	3.5 VDC	80 °C	-20 ░C	32 dB	Ball	0.11 in H2O	27.4 Pa	Tubeaxial	cURus TUV	Square	52 mm	52 mm	5000 RPM	2 Wire Leads	10 CFM	0.28 m³/min	5 V	10 mm
ORION FANS OD5210-12HB01A							167 °F	-4 °F	36 dB	Ball	0.14 in H2O	34.9 Pa	Tubeaxial	cURus TUV	Square	52 mm	52 mm	6000 RPM	3 Wire Leads	12 CFM	0.336 mł/min	12 VDC	10 mm	Auto Restart Speed Sensor (Tach)
