LHA100 Series

Switching Power Supplies AC/DC Power Supply,Open frame 100W, 24V, 6.7A with chassis

Manufacturer: Cosel USA, Inc.

Catalog

Switching Power Supplies AC/DC Power Supply,Open frame 100W, 24V, 6.7A with chassis

Catalog

Switching Power Supplies AC/DC Power Supply,Open frame 100W, 24V, 6.7A with chassis

Part	Voltage - Output 1 [custom]	Power (Watts)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Number of Outputs	Applications	Mounting Type	Voltage - Isolation	Efficiency	Approval Agency	Features	Current - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1

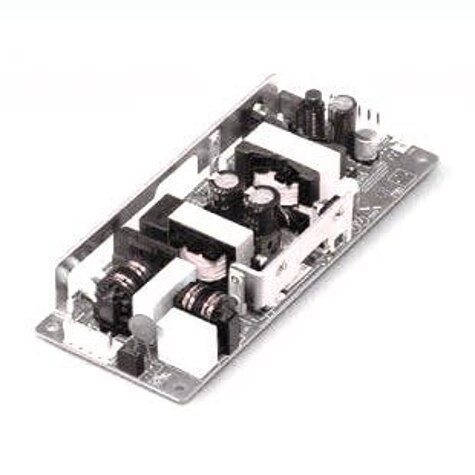

Cosel USA, Inc. LHA100F-36-SN	36 V	101 W	Enclosed	70 °C	-10 °C	62368-1	1	ITE (Commercial)	Chassis Mount	3000 V	89 %	CE cURus DEMKO	Adjustable Output PFC Universal Input	2.8 A	1.48 "	71.9 mm	184.9 mm	7.28 in	2.83 "	37.6 mm
Cosel USA, Inc. LHA100F-5-S		75 W	Open Frame	70 °C	-10 °C	62368-1	1	ITE (Commercial)	Chassis Mount	3000 V	84 %	CE cURus DEMKO	Adjustable Output PFC Universal Input	15 A	1.48 "	71.9 mm	184.9 mm	7.28 in	2.83 "	37.6 mm	5 V
Cosel USA, Inc. LHA100F-24-SN		103 W	Enclosed	70 °C	-10 °C	62368-1	1	ITE (Commercial)	Chassis Mount	3000 V	89 %	CE cURus DEMKO	Adjustable Output PFC Universal Input	4.3 A	1.48 "	71.9 mm	184.9 mm	7.28 in	2.83 "	37.6 mm	24 V
Cosel USA, Inc. LHA100F-5-SN		75 W	Enclosed	70 °C	-10 °C	62368-1	1	ITE (Commercial)	Chassis Mount	3000 V	84 %	CE cURus DEMKO	Adjustable Output PFC Universal Input	15 A	1.48 "	71.9 mm	184.9 mm	7.28 in	2.83 "	37.6 mm	5 V
Cosel USA, Inc. LHA100F-36-S	36 V	101 W	Open Frame	70 °C	-10 °C	62368-1	1	ITE (Commercial)	Chassis Mount	3000 V	89 %	CE cURus DEMKO	Adjustable Output PFC Universal Input	2.8 A	1.48 "	71.9 mm	184.9 mm	7.28 in	2.83 "	37.6 mm
Cosel USA, Inc. LHA100F-12-S		102 W	Open Frame	70 °C	-10 °C	62368-1	1	ITE (Commercial)	Chassis Mount	3000 V	89 %	CE cURus DEMKO	Adjustable Output PFC Universal Input		1.48 "	71.9 mm	184.9 mm	7.28 in	2.83 "	37.6 mm	12 V
Cosel USA, Inc. LHA100F-24-S		103 W	Open Frame	70 °C	-10 °C	62368-1	1	ITE (Commercial)	Chassis Mount	3000 V	89 %	CE cURus DEMKO	Adjustable Output PFC Universal Input	4.3 A	1.48 "	71.9 mm	184.9 mm	7.28 in	2.83 "	37.6 mm	24 V
Cosel USA, Inc. LHA100F-12-SN		102 W	Enclosed	70 °C	-10 °C	62368-1	1	ITE (Commercial)	Chassis Mount	3000 V	89 %	CE cURus DEMKO	Adjustable Output PFC Universal Input		1.48 "	71.9 mm	184.9 mm	7.28 in	2.83 "	37.6 mm	12 V
Cosel USA, Inc. LHA100F-48-SN		101 W	Enclosed	70 °C	-10 °C	62368-1	1	ITE (Commercial)	Chassis Mount	3000 V	89 %	CE cURus DEMKO	Adjustable Output PFC Universal Input	2.1 A	1.48 "	71.9 mm	184.9 mm	7.28 in	2.83 "	37.6 mm	48 V
Cosel USA, Inc. LHA100F-15-S		101 W	Open Frame	70 °C	-10 °C	62368-1	1	ITE (Commercial)	Chassis Mount	3000 V	90 %	CE cURus DEMKO	Adjustable Output PFC Universal Input	6.7 A	1.48 "	71.9 mm	184.9 mm	7.28 in	2.83 "	37.6 mm	15 V
