917785 Series

Catalog

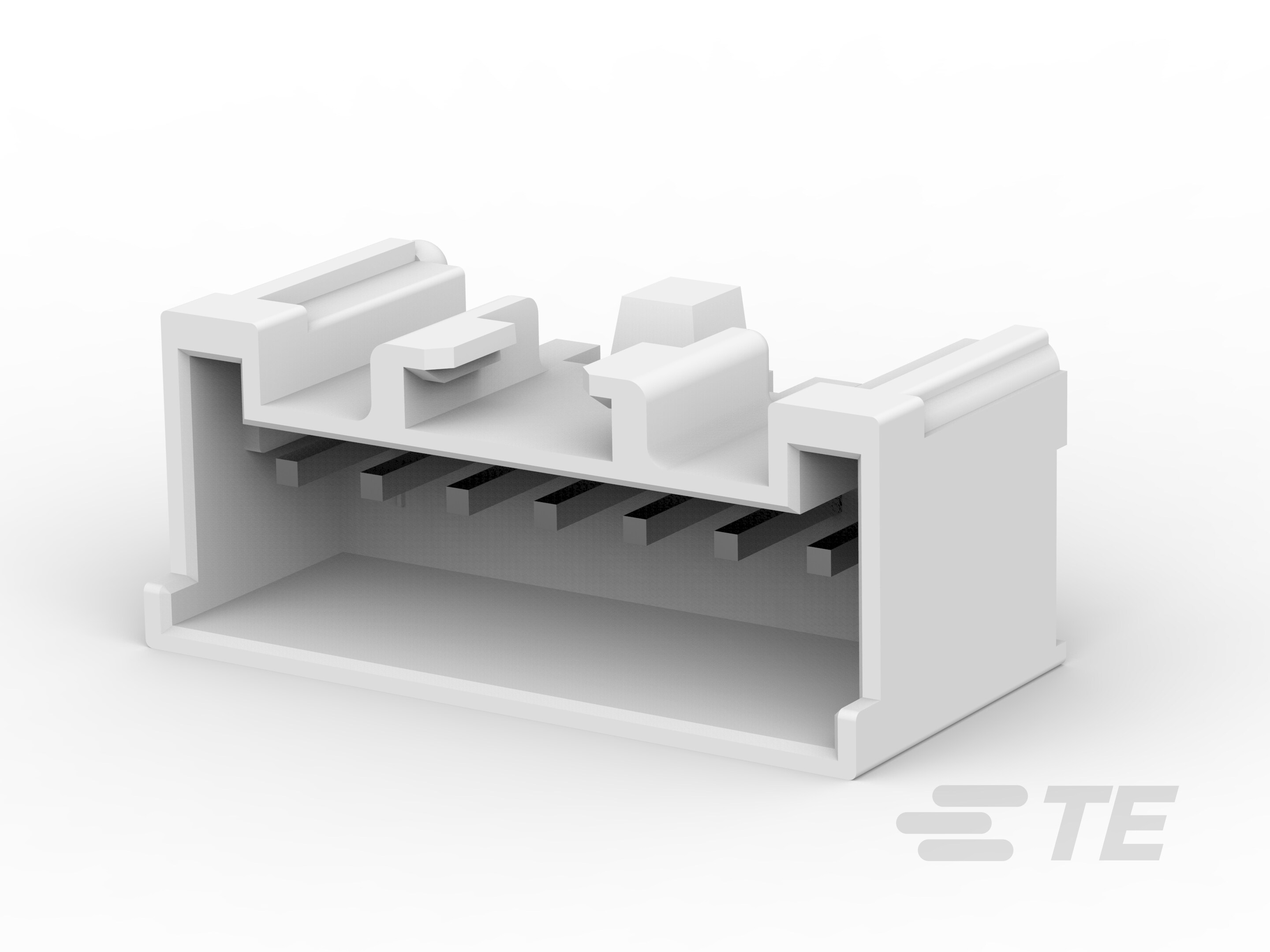

2.5 S.D.L POST HDR ASY 7P STD

Part	Mated Stacking Heights	Applications	Connector Type	Material Flammability Rating	Features	Mounting Type	Style	Number of Positions Loaded	Contact Material	Insulation Material	Number of Rows	Fastening Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Termination	Insulation Color	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Shrouding
TE Connectivity AMP Connectors 917785-1	13.7 mm	General Purpose	Header	UL94 V-0	Board Guide	Through Hole	Board to Cable/Wire	All	Copper Alloy	Glass Filled Nylon 6/6 Polyamide (PA66)	1	Latch Holder	2.5 mm	0.098 in	-30 ░C	105 ░C	Male Pin	7	Kinked Pin Solder	Natural	Square	4.7 mm	0.185 in	0.126 "	3.2 mm	50 V	3 A	9.8 mm	0.386 in	Tin	0.41 in	10.41 mm	Shrouded - 4 Wall
