25272 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

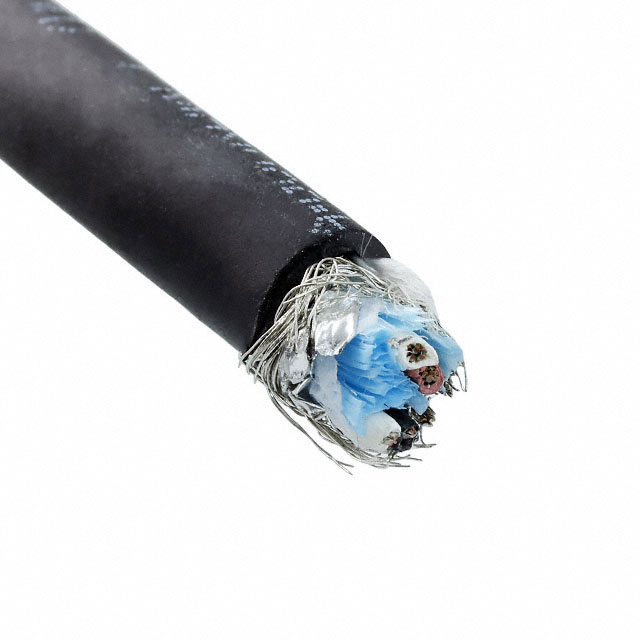

MULTI-PAIR 4COND 24AWG BLK 1000'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Conductor Insulation | Conductor Material | Jacket (Insulation) Material | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Features | Jacket Color | Cable Type | Voltage | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 0.813 mm | 0.032 in | ISO 10993 UL Style 20668 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Polyurethane (PU) | 304.8 m | 1000 ft | 7 | 32 AWG | 4 | 0.24 " | 6.1 mm | 24 AWG | Biological Compatibility Drain Wire Rip Cord | Black | Multi-Pair | 300 VDC | Braid Foil | -30 ░C | 90 °C | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 0.813 mm | 0.032 in | ISO 10993 UL Style 20668 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Polyurethane (PU) | 7 | 32 AWG | 4 | 0.24 " | 6.1 mm | 24 AWG | Biological Compatibility Drain Wire Rip Cord | Black | Multi-Pair | 300 VDC | Braid Foil | -30 ░C | 90 °C | 100 ft | 30.5 m |
