DIN-Signal M Series
Manufacturer: HARTING
Beta
⌘K
DIN M42+6 MALE STRAIGHT, 13.0MM PRESS-FIT TAILS, PL2 (POSTS PL3)
| Part | Material Flammability Rating | Material - Insulation | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Style | Number of Positions Loaded | Mounting Type | Contact Finish | Termination | Number of Rows [custom] | Contact Finish Thickness | Number of Positions [custom] | Number of Positions | Number of Positions [custom] | Pitch | Pitch | Connector Type | Type | Contact Termination | Pin or Socket | Number of Rows | Features | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | 2 A | -55 C | 125 °C | M | 42 | Through Hole | Gold-Palladium | Press-Fit | 3 | Flash | 42 | 48 | 6 | 0.1 " | 2.54 mm | Header Male Pins | ||||||
 HARTING | M-flat | 60 | Through Hole | Solder | 3 | 64 | 4 | 0.1 " | 2.54 mm | Receptacle Female Sockets | ||||||||||||||

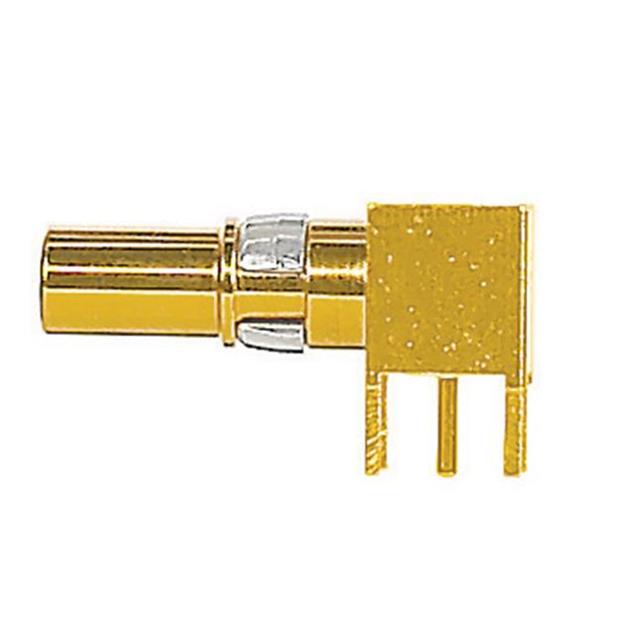

 HARTING | Power | PCB Solder | Pin | |||||||||||||||||||||
 HARTING | M | Through Hole | Crimp | 2 | 0.098 in | 2.5 mm | Receptacle Female Blade Sockets | 1 | Guide Pin | All | ||||||||||||||

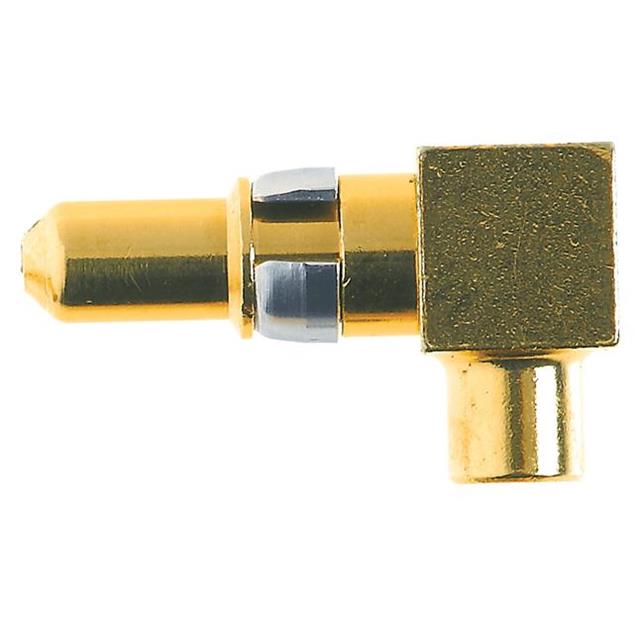

 HARTING | Coaxial | Solder | Center Pin | |||||||||||||||||||||
 HARTING | Power | PCB Solder | Pin | |||||||||||||||||||||

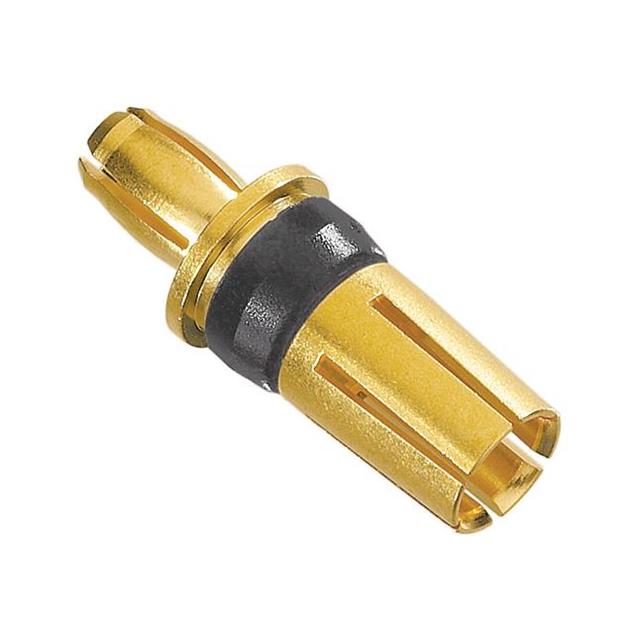

 HARTING | Power | Press-Fit | Socket | |||||||||||||||||||||

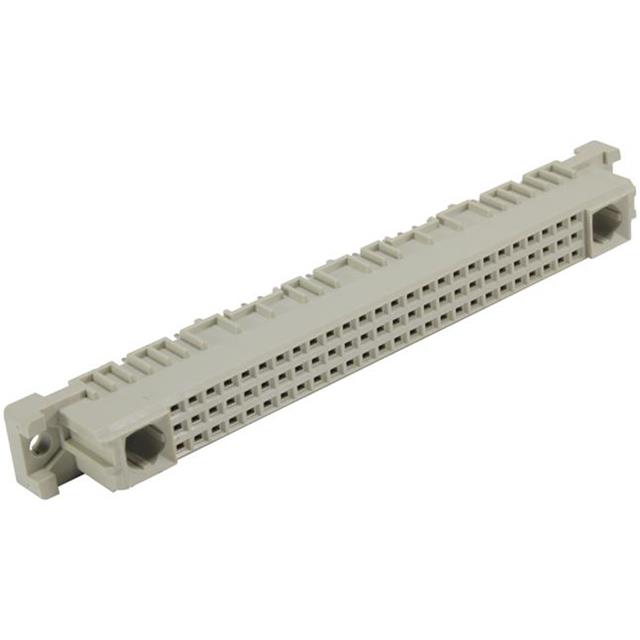

 HARTING | UL94 V-0 | Thermoplastic Glass Filled | -40 C | 105 ░C | M-flat | 78 | Through Hole | Press-Fit | 3 | 80 | 0.1 " | 2.54 mm | Receptacle Female Sockets |
