WLB32C570 Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

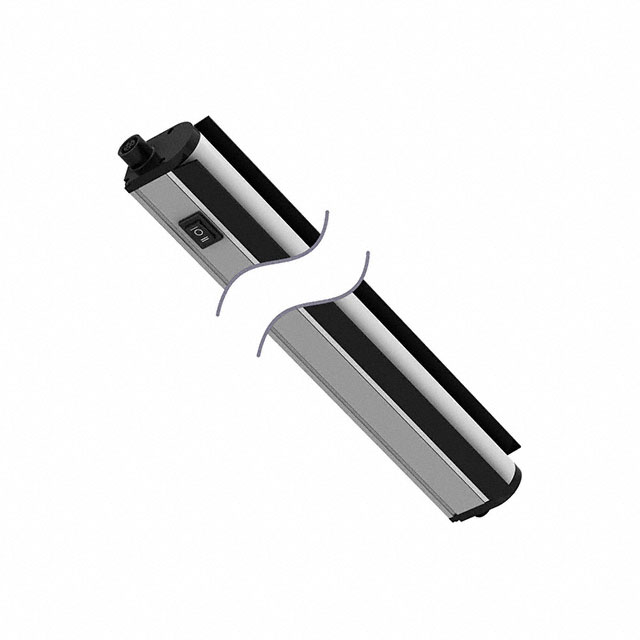

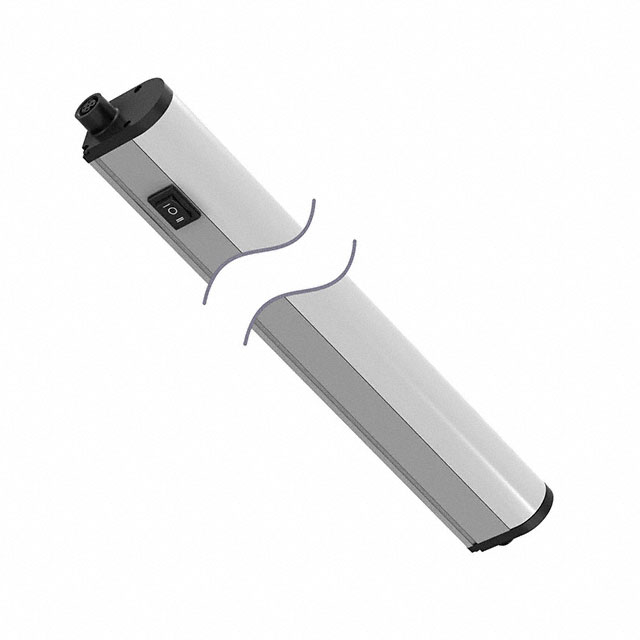

WORK LIGHT STRIP 570MM
| Part | Housing Material | Luminous Flux | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Rated Life | Length [x] | Length [x] | Illumination Color | Lens Type | Ingress Protection | Voltage - Supply [Min] | Voltage - Supply [Max] | Features | Approval Agency | Profile (W x H) [x] | Profile (W x H) [x] | Profile (W x H) [y] | Profile (W x H) [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | Aluminum (Al) | 1500 lm | 70 °C | -40 C | Cable Leads | 50000 Hours | 570 mm | 22.44 in | Cool White | Tubular Diffused | IP50 - Dust Protected | 12 VDC | 30 VDC | High/Low/Off Switching | CE cULus | 1.26 in | 32 mm | 1.81 in | 46 mm |
 BANNER ENGINEERING | Aluminum (Al) | 1500 lm | 70 °C | -40 C | Connector (M12) | 50000 Hours | 570 mm | 22.44 in | Cool White | Tubular Diffused | IP50 - Dust Protected | 12 VDC | 30 VDC | CE cULus | 1.26 in | 32 mm | 1.81 in | 46 mm | |
 BANNER ENGINEERING | Aluminum (Al) | 1500 lm | 70 °C | -40 C | Connector (M12) | 50000 Hours | 570 mm | 22.44 in | Cool White | Tubular Diffused | IP50 - Dust Protected | 12 VDC | 30 VDC | High/Low/Off Switching | CE cULus | 1.26 in | 32 mm | 1.81 in | 46 mm |
 BANNER ENGINEERING | Aluminum (Al) | 1500 lm | 70 °C | -40 C | Connector (M12) | 50000 Hours | 570 mm | 22.44 in | Cool White | Tubular Diffused | IP50 - Dust Protected | 12 VDC | 30 VDC | Motion Detection | CE cULus | 1.26 in | 32 mm | 1.81 in | 46 mm |
 BANNER ENGINEERING | Aluminum (Al) | 1500 lm | 70 °C | -40 C | Connector (M12) | 50000 Hours | 570 mm | 22.44 in | Cool White | Tubular Diffused | IP50 - Dust Protected | 12 VDC | 30 VDC | High/Low/Off Switching | CE cULus | 1.26 in | 32 mm | 1.89 in | 48 mm |
