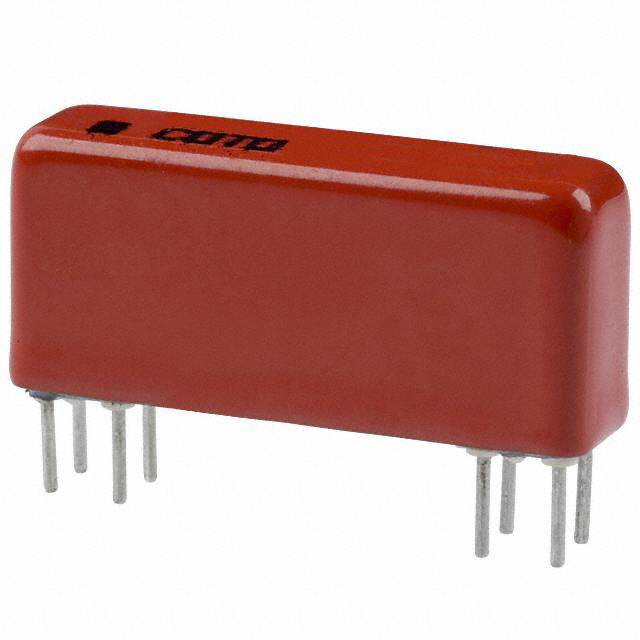

2332 Series

Catalog

RELAY REED DPST 500MA 5V

Part	Coil Resistance	Contact Form	Seal Rating	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Coil Voltage	Mounting Type	Termination Style	Switching Voltage [Max]	Coil Type	Coil Current	Contact Rating (Current)	Operate Time	Release Time	Must Operate Voltage	Features
COTO TECHNOLOGY 2332-05-000	175 Ohms	DPST-NO (2 Form A)	Sealed - Hermetically	85 °C	-20 ░C	0.4 VDC	5 VDC	Through Hole	PC Pin	200 VDC 200 VAC	Non Latching	28.6 mA	0.5 A	500 µs	0.15 ms	3.8 VDC
COTO TECHNOLOGY 2332-12-000	1 kOhms	DPST-NO (2 Form A)	Sealed - Hermetically	85 °C	-20 ░C	1 VDC	12 VDC	Through Hole	PC Pin	200 VDC 200 VAC	Non Latching	12 mA	0.5 A	500 µs	0.15 ms	9 VDC
COTO TECHNOLOGY 2332-05-010	175 Ohms	DPST-NO (2 Form A)	Sealed - Hermetically	85 °C	-20 ░C	0.4 VDC	5 VDC	Through Hole	PC Pin	200 VDC 200 VAC	Non Latching	28.6 mA	0.5 A	500 µs	0.15 ms	3.8 VDC
COTO TECHNOLOGY 2332-05-020	175 Ohms	DPST-NO (2 Form A)		85 °C	-20 ░C	0.4 VDC	5 VDC	Through Hole	PC Pin	200 VDC 200 VAC	Non Latching	28.6 mA	0.5 A	500 µs	0.15 ms	3.8 VDC	Sealed - Hermetically
COTO TECHNOLOGY 2332-12-020	1 kOhms	DPST-NO (2 Form A)		85 °C	-20 ░C	1 VDC	12 VDC	Through Hole	PC Pin	200 VDC 200 VAC	Non Latching	12 mA	0.5 A	500 µs	0.15 ms	9 VDC	Sealed - Hermetically
COTO TECHNOLOGY 2332-12-010	1 kOhms	DPST-NO (2 Form A)	Sealed - Hermetically	85 °C	-20 ░C	1 VDC	12 VDC	Through Hole	PC Pin	200 VDC 200 VAC	Non Latching	12 mA	0.5 A	500 µs	0.15 ms	9 VDC
