4650 Series

Catalog

CONN PLUG 50P IDC 26-28AWG GOLD

Part	Features	Pitch	Pitch	Contact Finish	Wire Type	Connector Type	Row Spacing	Row Spacing	Fastening Type	Number of Rows [custom]	Color	Mounting Type	Cable Termination	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Type
3M Electronic Specialty 4650-6200	Feed Through	0.1 "	2.54 mm	Gold	Discrete Ribbon Cable	Plug	2.54 mm	0.1 "	Latch Lock/Eject Hooks	2	Gray	Free Hanging (In-Line)	IDC	28 AWG	Stranded or Solid	26 AWG	30 Áin	0.76 Ám	50	Male Pin
3M Electronic Specialty 4650-6001	Feed Through	0.1 "	2.54 mm	Gold	Discrete Ribbon Cable	Plug	2.54 mm	0.1 "		2	Gray	Free Hanging (In-Line)	IDC	28 AWG	Stranded or Solid	26 AWG	30 Áin	0.76 Ám	50	Male Pin
3M Electronic Specialty 4650-7201	Closed End	0.1 "	2.54 mm	Gold	Discrete Ribbon Cable	Plug	2.54 mm	0.1 "	Latch Lock/Eject Hooks	2	Gray	Free Hanging (In-Line)	IDC	28 AWG	Stranded or Solid	26 AWG	30 Áin	0.76 Ám	50	Male Pin
3M Electronic Specialty 4650-6000	Feed Through	0.1 "	2.54 mm	Gold	Discrete Ribbon Cable	Plug	2.54 mm	0.1 "		2	Gray	Free Hanging (In-Line)	IDC	28 AWG	Stranded or Solid	26 AWG	30 Áin	0.76 Ám	50	Male Pin
3M Electronic Specialty 4650-B300		0.1 "	2.54 mm	Gold	Discrete Ribbon Cable	Plug	2.54 mm	0.1 "		2		Free Hanging (In-Line)	IDC	28 AWG	Stranded or Solid	26 AWG	30 Áin	0.76 Ám	50	Male Pin
3M Electronic Specialty 4650-6205	Feed Through	0.1 "	2.54 mm	Gold	Discrete Ribbon Cable	Plug	2.54 mm	0.1 "	Latch Lock/Eject Hooks	2	Gray	Free Hanging (In-Line)	IDC	28 AWG	Stranded or Solid	26 AWG	30 Áin	0.76 Ám	50	Male Pin
3M Electronic Specialty 4650-6305	Feed Through	0.1 "	2.54 mm	Gold	Discrete Ribbon Cable	Plug	2.54 mm	0.1 "	Latch Lock/Eject Hooks Long	2	Gray	Free Hanging (In-Line)	IDC	28 AWG	Stranded or Solid	26 AWG	30 Áin	0.76 Ám	50	Male Pin
3M Electronic Specialty 4650-6005	Feed Through	0.1 "	2.54 mm	Gold	Discrete Ribbon Cable	Plug	2.54 mm	0.1 "		2	Gray	Free Hanging (In-Line)	IDC	28 AWG	Stranded or Solid	26 AWG	30 Áin	0.76 Ám	50	Male Pin
3M Electronic Specialty 4650-6705	Feed Through	0.1 "	2.54 mm	Gold	Discrete Ribbon Cable	Plug	2.54 mm	0.1 "	Latch Lock/Eject Hooks	2	Gray	Free Hanging (In-Line)	IDC	28 AWG	Stranded or Solid	26 AWG	30 Áin	0.76 Ám	50	Male Pin

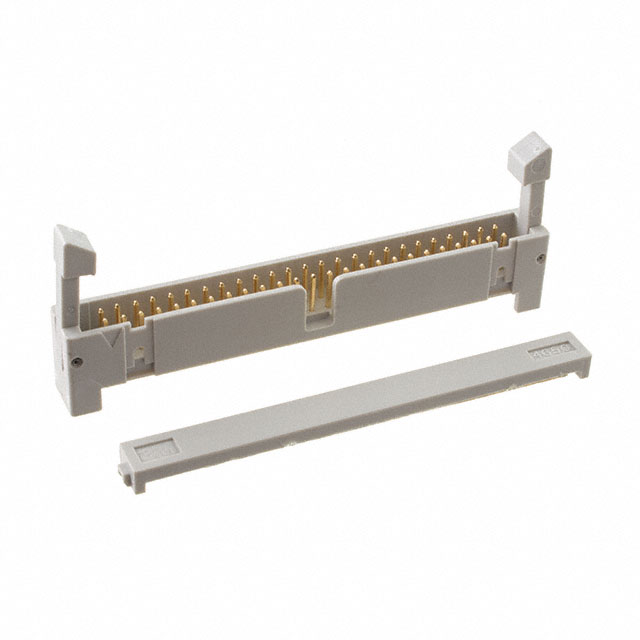

3M Electronic Specialty 4650-6301	Feed Through	0.1 "	2.54 mm	Gold	Discrete Ribbon Cable	Plug	2.54 mm	0.1 "	Latch Lock/Eject Hooks Long	2	Gray	Free Hanging (In-Line)	IDC	28 AWG	Stranded or Solid	26 AWG	30 Áin	0.76 Ám	50	Male Pin
