VBI109 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

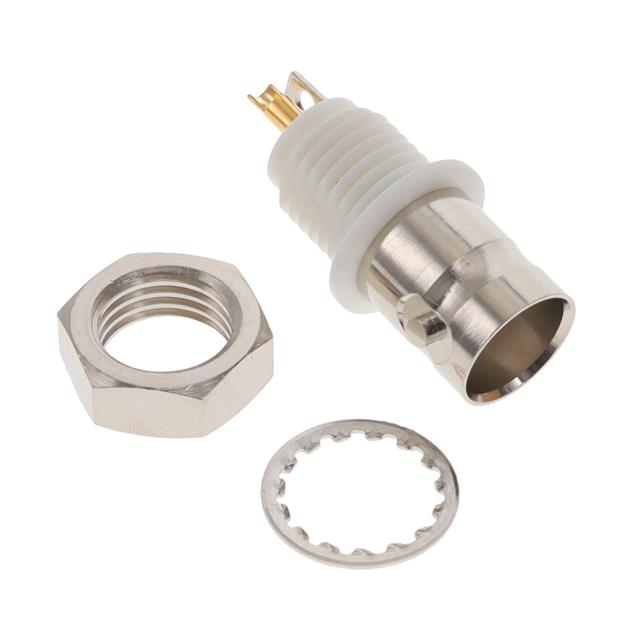

RF CONNECTORS / COAXIAL CONNECTORS BNC PANEL MT JACK ISOLATED 75 OHM
| Part | Center Contact Plating | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Voltage Rating | Body Finish | Includes | Insertion Loss | Mating Cycles | Features | Center Contact Material | Mounting Type | Mounting Feature | Connector Type | Fastening Type | Connector Style | Number of Ports | Shield Termination | Impedance | Frequency - Max [Max] | Contact Termination | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Gold | Brass | 80 °C | -20 ░C | Acrylonitrile Butadiene Styrene (ABS) | 500 V | Nickel | 1 Nut 1 Washer 3 pcs - 1 Connector | 0.2 dB | 500 | Isolated | Phosphor Bronze | Panel Mount | Bulkhead - Rear Side Nut | Female Socket Jack | Bayonet Lock | BNC | 1 | Solder | 75 Ohms | 1 GHz | Solder Cup | Silver |
