AMPM Series

Catalog

STANDARD CLOCK OSCILLATORS OSCILLATOR 2520 4-SMD 16MHZ +/-25PPM -40°C ~ 85°C CMOS 1.71V ~ 3.63V

Part	Frequency	Type	Frequency Stability	Function	Current - Supply (Max)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [z]	Height - Seated (Max) [z]	Mounting Type	Base Resonator	Package / Case	Current - Supply (Disable) (Max) [Max]	Output	Supplier Device Package [y]	Supplier Device Package [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

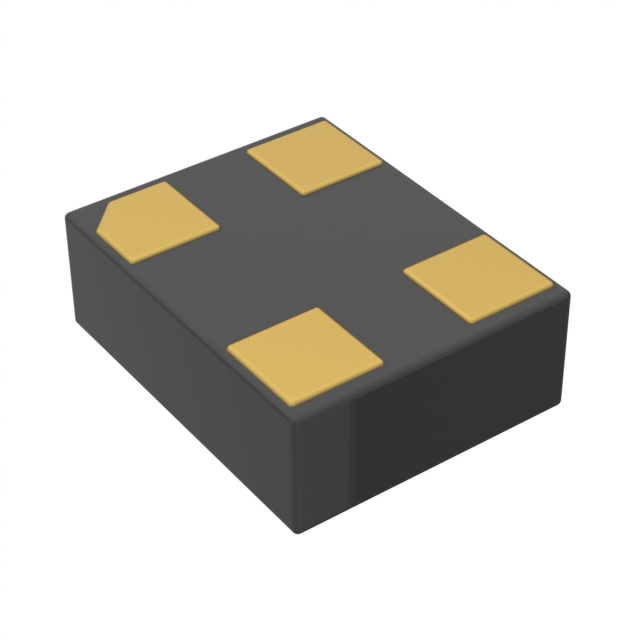

Abracon LLC AMPMDFB-16.0000T	16 MHz	XO (Standard)	25 ppm	Standby (Power Down)	1.3 mA	4-VLGA (2.5x2)	85 °C	-40 C	3.63 V	1.71 V	2.5 mm	0.079 in	0.098 in	2 mm	0.035 "	0.89 mm	Surface Mount	MEMS	4-SMD No Lead
Abracon LLC AMPMDFB-20.0000T	20 MHz	XO (Standard)	25 ppm	Standby (Power Down)	1.3 mA	4-VLGA (2.5x2)	85 °C	-40 C	3.63 V	1.71 V	2.5 mm	0.079 in	0.098 in	2 mm	0.035 "	0.89 mm	Surface Mount	MEMS	4-SMD No Lead	160 µA

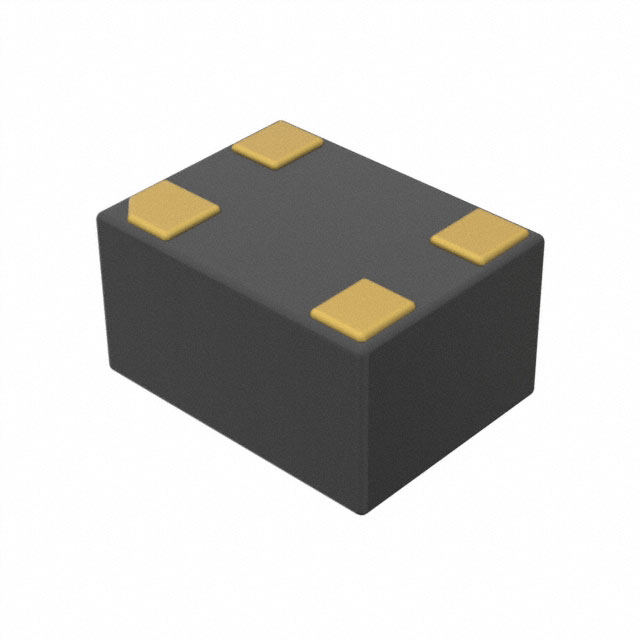

Abracon LLC AMPMGFB-32.0000	32 MHz	XO (Standard)	25 ppm	Standby (Power Down)	1.3 mA	4-SMD	85 °C	-40 C	3.63 V	1.71 V	1.6 mm	0.047 in	0.063 "	1.2 mm	0.035 "	0.89 mm	Surface Mount	MEMS	4-SMD No Lead	160 µA	CMOS	1.2	1.6

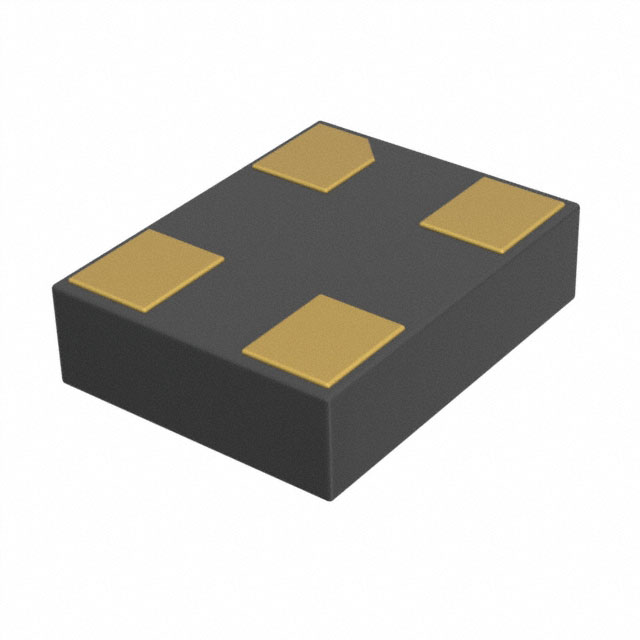

Abracon LLC AMPMEGA-25.0000T	25 MHz	XO (Standard)	50 ppm	Enable/Disable	1.3 mA		85 °C	-40 C	3.63 V	1.71 V	3.2 mm	0.098 in	0.126 "	2.5 mm			Surface Mount	MEMS	4-VDFN		CMOS			0.035 in	0.9 mm
Abracon LLC AMPMGFB-50.0000T	50 MHz	XO (Standard)	25 ppm	Standby (Power Down)	1.3 mA	4-SMD	85 °C	-40 C	3.63 V	1.71 V	1.6 mm	0.047 in	0.063 "	1.2 mm	0.035 "	0.89 mm	Surface Mount	MEMS	4-SMD No Lead	160 µA		1.2	1.6
Abracon LLC AMPMDGA-12.0000T	12 MHz	XO (Standard)	50 ppm	Enable/Disable	1.3 mA	4-VLGA (2.5x2)	85 °C	-40 C	3.63 V	1.71 V	2.5 mm	0.079 in	0.098 in	2 mm	0.035 "	0.89 mm	Surface Mount	MEMS	4-SMD No Lead		CMOS

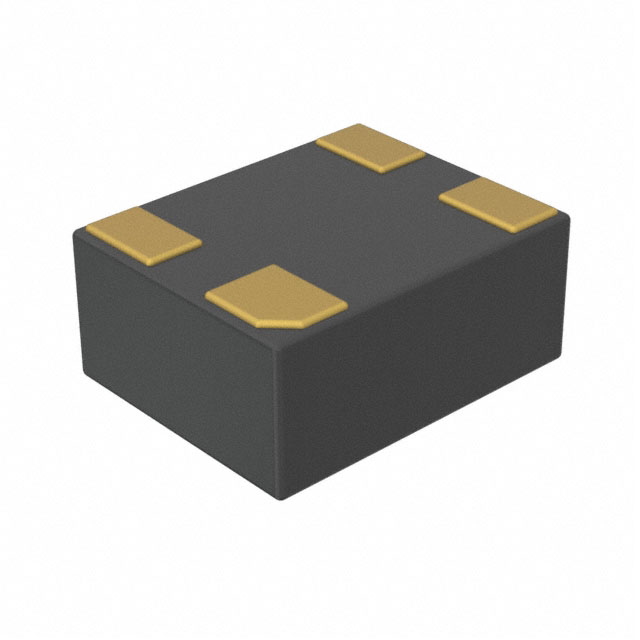

Abracon LLC AMPMADC-2.0480T	2.048 MHz	XO (Standard)	25 ppm	Enable/Disable	1.3 mA	4-VFLGA (2x1.6)	70 °C	-20 ░C	3.63 V	1.71 V	2 mm	0.063 "	0.079 in	1.6 mm	0.035 "	0.89 mm	Surface Mount	MEMS	4-SMD No Lead		CMOS
Abracon LLC AMPMAFB-24.0000T	24 MHz	XO (Standard)	25 ppm	Standby (Power Down)	1.3 mA	4-VFLGA (2x1.6)	85 °C	-40 C	3.63 V	1.71 V	2 mm	0.063 "	0.079 in	1.6 mm	0.035 "	0.89 mm	Surface Mount	MEMS	4-SMD No Lead
Abracon LLC AMPMEGB-1.8432	1.8432 MHz	XO (Standard)	50 ppm	Standby (Power Down)	1.3 mA		85 °C	-40 C	3.63 V	1.71 V	3.2 mm	0.098 in	0.126 "	2.5 mm			Surface Mount	MEMS	4-VDFN	160 µA	CMOS			0.035 in	0.9 mm
Abracon LLC AMPMEFB-26.0000T	26 MHz	XO (Standard)	25 ppm	Standby (Power Down)	1.3 mA		85 °C	-40 C	3.63 V	1.71 V	3.2 mm	0.098 in	0.126 "	2.5 mm			Surface Mount	MEMS	4-VDFN	160 µA				0.035 in	0.9 mm
