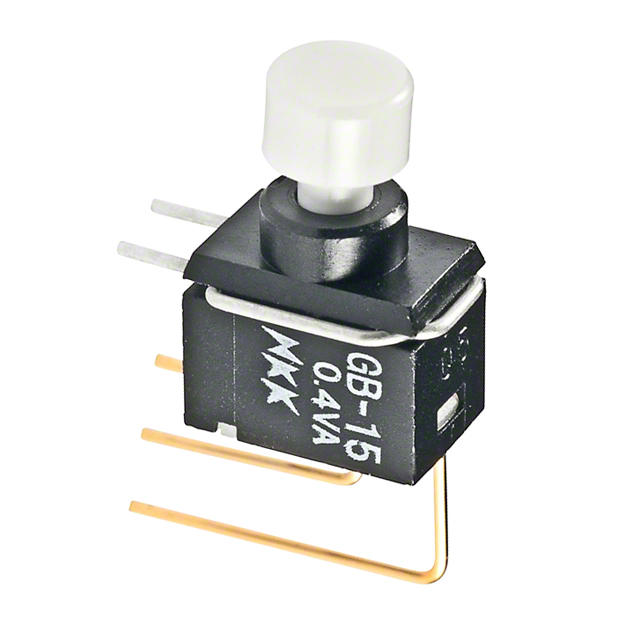

GB15AV Series
Manufacturer: NKK Switches
Beta
⌘K
PROCESS SEALED ULTRA-MINIATURE PUSHBUTTON
| Part | Mechanical Life | Electrical Life | Voltage Rating - AC | Switch Function | Current Rating (Amps) | Actuator Marking | Circuit | Mounting Type | Voltage Rating - DC | Type | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | On-Mom | 0.4 VA | No Marking | SPDT | Right Angle Through Hole Vertical | 28 V | Standard | White | 85 °C | -30 ░C | Button Round | PC Pin |
 NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | On-Mom | 0.4 VA | No Marking | SPDT | Right Angle Through Hole Vertical | 28 V | Standard | Black | 85 °C | -30 ░C | Button Round | PC Pin |
 NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | On-Mom | 0.4 VA | No Marking | SPDT | Right Angle Through Hole Vertical | 28 V | Standard | Blue | 85 °C | -30 ░C | Button Round | PC Pin |
