MMS2 Series

Catalog

SWITCH SLIDE DPDT 100MA 30V

Part	Mechanical Life	Actuator Material	Electrical Life	Switch Travel	Operating Force	Contact Timing	Circuit	Features	Actuator Length [x]	Switch Function	Mounting Type	Voltage Rating - DC	Termination Style	Actuator Type	Contact Finish	Current Rating (Amps)	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]

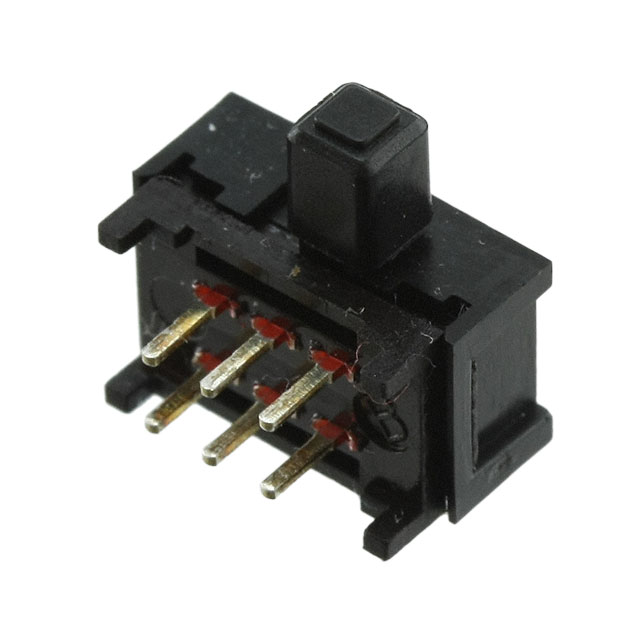

TE Connectivity AMP Connectors MMS22R	10000 Steps	Polyester	10000 Cycles	2 mm	0.2 kgf	Shorting (MBB)	DPDT	Epoxy Sealed Terminals	4.29 mm	On-On	Right Angle Through Hole	30 V	PC Pin	Standard	Silver	100 mA	Copper Alloy	-20 ░C	60 °C
TE Connectivity AMP Connectors MMS22	10000 Steps	Polyester	10000 Cycles	2 mm	0.2 kgf	Shorting (MBB)	DPDT	Epoxy Sealed Terminals	2 mm	On-On	Through Hole	30 V	PC Pin	Standard	Silver	100 mA	Copper Alloy	-20 ░C	60 °C

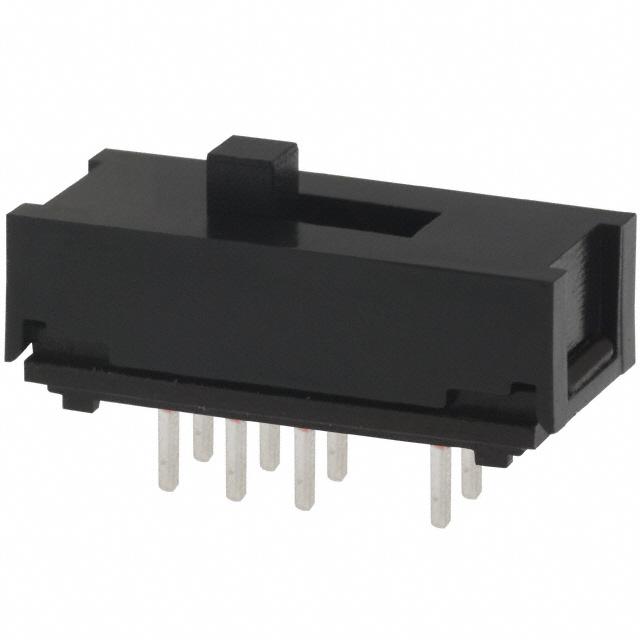

TE Connectivity AMP Connectors MMS23	10000 Steps	Polyester	10000 Cycles	2 mm	0.2 kgf	Shorting (MBB)	DP3T	Epoxy Sealed Terminals	2 mm	On-On-On	Through Hole	30 V	PC Pin	Standard	Silver	100 mA	Copper Alloy	-20 ░C	60 °C
