282805 Series

Catalog

TERM BLOCK PLUG 2POS STR 5MM

Part	Mounting Type	Termination Style	Number of Levels	Type	Positions Per Level	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Insulation Height	Insulation Height	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - UL	Contact Material	Wire Strip Length [Max]	Wire Strip Length [Min]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Screw Size	Number of Positions	Pitch [x]	Pitch [x]	Torque - Screw	Torque - Screw	Features	Contact Mating Finish	Material Flammability Rating	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]

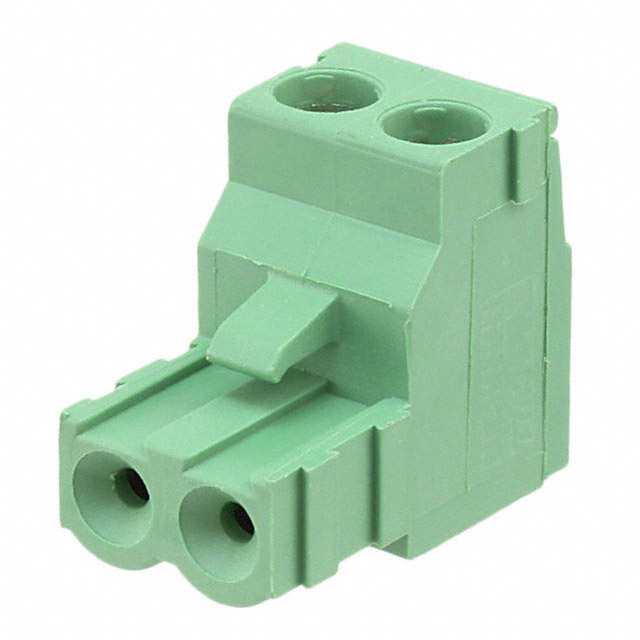

TE Connectivity Raychem Cable Protection 282805-2	Free Hanging (In-Line)	Screw - Rising Cage Clamp	1	Plug Female Sockets	2	3 mm˛	0.05 mm˛	0.61 in	15.49 mm	30 AWG	12 AWG	300 V	Phosphor Bronze	7.5 mm	6 mm	Green	-40 °C	110 °C	M3	2	5 mm	0.197 in	0.79 Nm	7 Lb-In	Interlocking (Side) Retention Latches (Non-Wire Side)	Tin	UL94 V-0

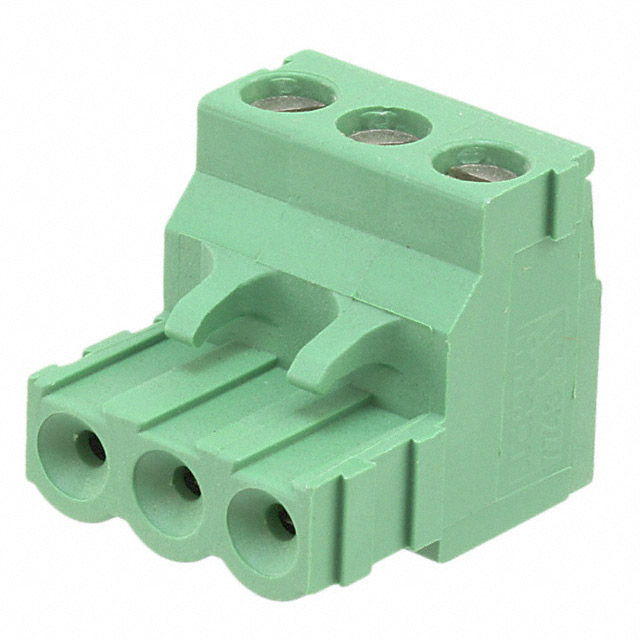

TE Connectivity Raychem Cable Protection 282805-3	Free Hanging (In-Line)	Screw - Rising Cage Clamp	1	Plug Female Sockets	3			0.61 in	15.49 mm	30 AWG	12 AWG	300 V	Phosphor Bronze	7.5 mm	6 mm	Green	-40 °C	110 °C	M3		5 mm	0.197 in	0.79 Nm	7 Lb-In	Interlocking (Side) Retention Latches (Non-Wire Side)	Tin	UL94 V-0	0.05 mm²	3 mm²
