7100 Series

Manufacturer: Qualtek

Catalog

FAN ACCESSORIES 36"FAN PWR CORD

Part	Length [x]	Length [x]	Approval Agency Marking	1st Connector	Current Rating (Amps)	Wire Gauge	Cord Type	Operating Temperature	2nd Connector	Number of Conductors	Style	Fits Terminal Size [x]	Fits Terminal Size [y]	Voltage Rating	Length	Length

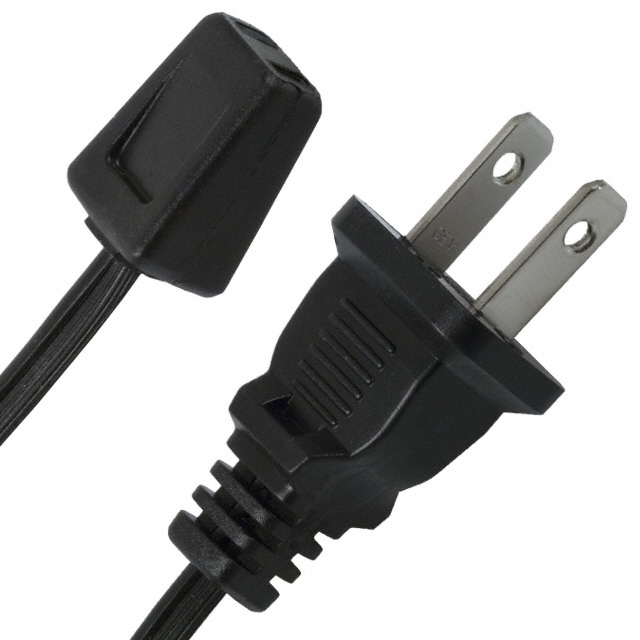

Qualtek 07100-SP036	36 in	914.4 mm	cUL UL	Fan Terminal Receptacle 180° Straight	10 A	18 AWG	SPT-1	105 C	NEMA 1-15 Plug	2	Female Receptacle to Male Plug	4.5	2.5	125 VDC
Qualtek 07100-SP024			cUL UL	Fan Terminal Receptacle 180° Straight	10 A	18 AWG	SPT-1	105 C	NEMA 1-15 Plug	2	Female Receptacle to Male Plug	4.5	2.5	125 VDC	609.6 mm	24 in
Qualtek 07100-SP072			cUL UL	Fan Terminal Receptacle 180° Straight	10 A	18 AWG	SPT-1	105 C	NEMA 1-15 Plug	2	Female Receptacle to Male Plug	4.5	2.5	125 VDC	1.83 m	72 in

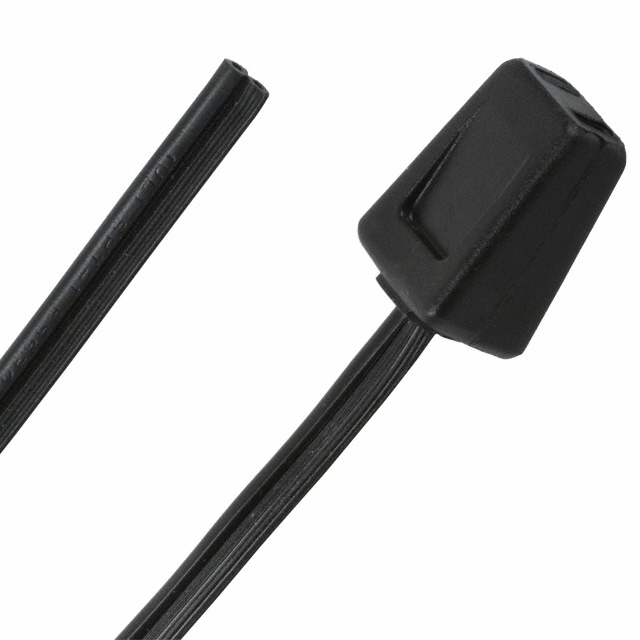

Qualtek 07100-72			cUL UL	Fan Terminal Receptacle 180° Straight	10 A	18 AWG	SPT-1	105 C	Open Wires	2	Female Receptacle to Cable	4.5	2.5	125 VDC	1.83 m	72 in
Qualtek 07100-40			cUL UL	Fan Terminal Receptacle 180° Straight	10 A	18 AWG	SPT-1	105 C	Open Wires	2	Female Receptacle to Cable	4.5	2.5	125 VDC	1.02 m	40 in
Qualtek 07100-60			cUL UL	Fan Terminal Receptacle 180° Straight	10 A	18 AWG	SPT-1	105 C	Open Wires	2	Female Receptacle to Cable	4.5	2.5	125 VDC	1.52 m	60 in
Qualtek 07100-12	12 in	304.8 mm	cUL UL	Fan Terminal Receptacle 180° Straight	10 A	18 AWG	SPT-1	105 C	Open Wires	2	Female Receptacle to Cable	4.5	2.5	125 VDC
Qualtek 07100-80			cUL UL	Fan Terminal Receptacle 180° Straight	10 A	18 AWG	SPT-1	105 C	Open Wires	2	Female Receptacle to Cable	4.5	2.5	125 VDC	2.03 m	80 in
