BD94130MUF-M Series

24-channel Constant Current Drivers and 8-line Switch Controllers Embedded Backlight LED Driver

Catalog

24-channel Constant Current Drivers and 8-line Switch Controllers Embedded Backlight LED Driver

Part	Grade	Qualification	Mounting Type	Internal Switch(s)	Voltage - Output	Voltage - Supply (Max) [Max]	Dimming	Applications	Type	Number of Outputs	Supplier Device Package	Topology	Package / Case	Voltage - Supply (Min) [Min]	Current - Output / Channel	Operating Temperature [Max]	Operating Temperature [Min]

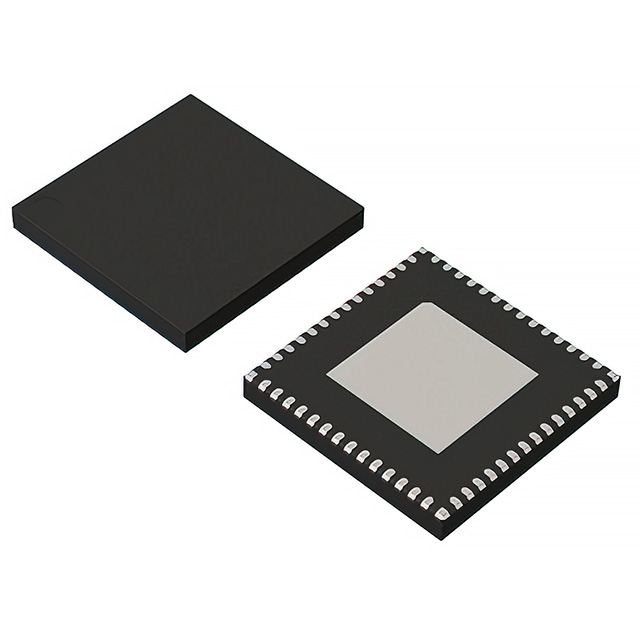

Rohm Semiconductor BD94130MUF-ME2	Automotive	AEC-Q100	Surface Mount Wettable Flank		20 V	5.5 V	PWM SPI	Backlight	Linear	24	VQFN56FCV080	Constant Current	56-VFQFN Exposed Pad	3 V	80 mA	125 °C	-40 C

Catalog

24-channel Constant Current Drivers and 8-line Switch Controllers Embedded Backlight LED Driver

Description

BD94130MUF-M is embedded 24-channel constant current drivers with 12bit PWM dimming and max 8-line switch controllers. This device can set LED constant current value by setting external ISET resistor. Communication with μ-controller via SPI is feasible.
