GRPB071 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 7POS 1.27MM

Part	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Style	Number of Rows	Termination	Mounting Type	Contact Finish Thickness - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Number of Positions Loaded	Shrouding	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Contact Finish - Post	Contact Shape	Number of Positions	Contact Material	Connector Type	Insulation Material	Contact Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions GRPB071VWTD-RC	Flash	1.27 mm	0.05 in	Board to Board Cable	1	Solder	Surface Mount	Flash	Push-Pull	-40 C	105 ░C	Gold	All	Unshrouded	3 mm	0.118 in	1 mm	0.039 in	UL94 V-0	Gold	Square	7	Brass	Header	Nylon 9T Polyamide (PA9T)	Male Pin
Sullins Connector Solutions GRPB071VWTC-RC	Flash	1.27 mm	0.05 in	Board to Board Cable	1	Solder	Surface Mount	Flash	Push-Pull	-40 C	105 ░C	Gold	All	Unshrouded	3 mm	0.118 in	1 mm	0.039 in	UL94 V-0	Gold	Square	7	Brass	Header	Nylon 9T Polyamide (PA9T)	Male Pin

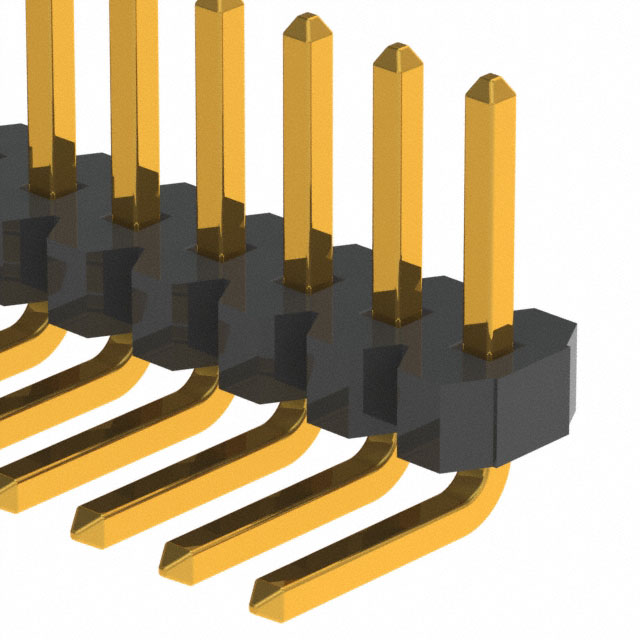

Sullins Connector Solutions GRPB071VWCN-RC	Flash	1.27 mm	0.05 in	Board to Board Cable	1	Solder	Right Angle Through Hole	Flash	Push-Pull	-40 C	105 ░C	Gold	All	Unshrouded	3 mm	0.118 in			UL94 V-0	Gold	Square	7	Brass	Header	Nylon 9T Polyamide (PA9T)	Male Pin	0.084 in	2.14 mm	2.5 mm	0.098 in

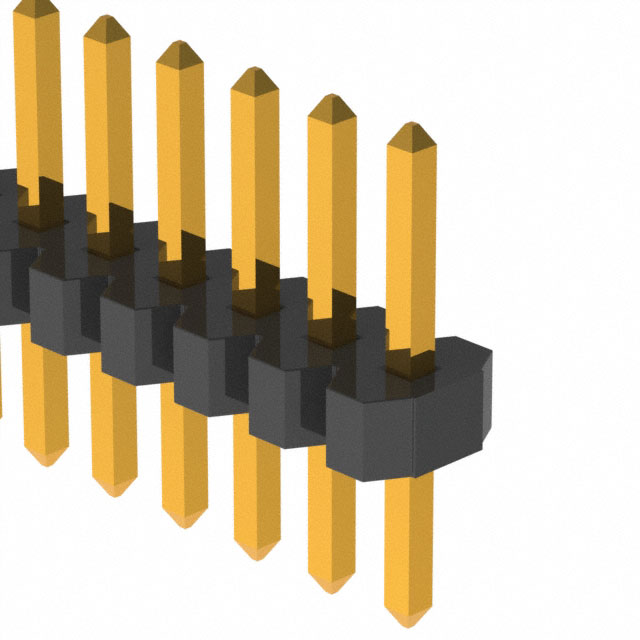

Sullins Connector Solutions GRPB071VWVN-RC	Flash	1.27 mm	0.05 in	Board to Board Cable	1	Solder	Through Hole	Flash	Push-Pull	-40 C	105 ░C	Gold	All	Unshrouded	3 mm	0.118 in	1 mm	0.039 in	UL94 V-0	Gold	Square	7	Brass	Header	Nylon 9T Polyamide (PA9T)	Male Pin			2.3 mm		0.091 "	0.248 in	6.3 mm
