SWI24 Series

Manufacturer: CUI Inc.

Catalog

AC/DC WALL MOUNT ADAPTER 15V 24W

Part	Power (Watts)	Voltage - Output	Region Utilized	Input Connector	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Standard Number	Applications	Cord Length	Cord Length	Polarization	Approval Agency	Form	Input Type	Output Connector [diameter]	Output Connector	Output Connector [z]	Current - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Weight [custom]	Weight [custom]	No Load Power Consumption	Output Connector [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Weight	Weight
CUI Inc. SWI24-15-E-P6R	24 W	15 V	Europe	CEE 7/16	CoC Tier 2 Level VI	1.34 in	70 mm	72 mm	34 mm	2.76 in	2.83 in	40 °C	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	ITE (Commercial)	1.5 m	59 in	Positive Center	CB Scheme EN IEC	Wall Mount	Fixed Blade	2.5 mm 5.5 mm	Barrel Plug R/A	9.5 mm	1.6 A	264 VAC	90 VAC	148.32 g	0.327 lb	100 mW
CUI Inc. SWI24-12-E-P14	24 W	12 V	Europe	CEE 7/16	CoC Tier 2 Level VI	1.34 in	90 mm	72 mm	34 mm	3.54 "	2.83 in	40 °C	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	ITE (Commercial)	1.5 m	59 in	Positive Center	CB Scheme EN IEC	Wall Mount	Fixed Blade	1.7 mm 4.75 mm	Barrel Plug		2 A	264 VAC	90 VAC			75 mW	9.5 mm

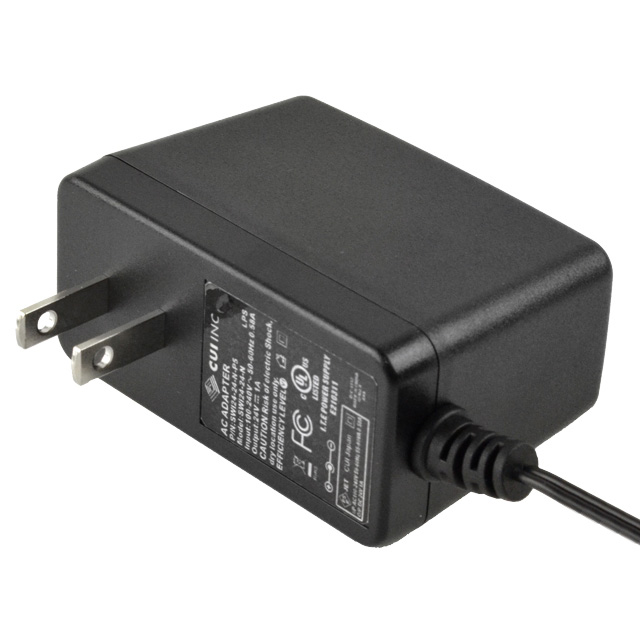

CUI Inc. SWI24-24-N-N5	24 W	24 V	North America	NEMA 1-15P	Level VI		2.05 "	2.83 "	1.34 "			40 °C	60950-1 62368-1 C22.2 No. 60950-1	ITE (Commercial)	1.5 m	59 in	Negative Center	CB Scheme CCC CSA FCC IEC PSE UL	Wall Mount	Fixed Blade	2.1 mm 5.5 mm	Barrel Plug		1 A	264 VAC	90 VAC	148.32 g	0.327 lb	100 mW	9.5 mm	34 mm	72 mm	52 mm

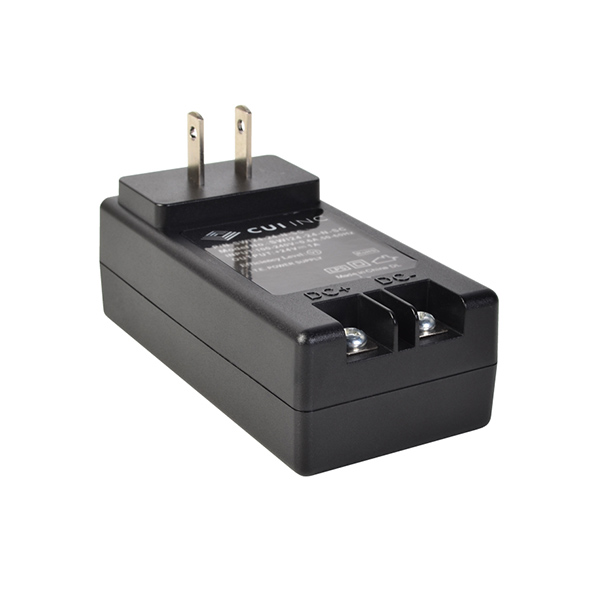

CUI Inc. SWI24-24-N-SC	24 W	24 V	North America	NEMA 1-15P	Level VI	1.93 in	32.5 mm	98 mm	49 mm	1.28 "	3.86 "	40 °C	60950-1 C22.2 No. 60950-1	ITE (Commercial)				CB Scheme CSA IEC UL	Wall Mount	Fixed Blade		Screw Terminal		1 A	264 VAC	90 VAC			100 mW

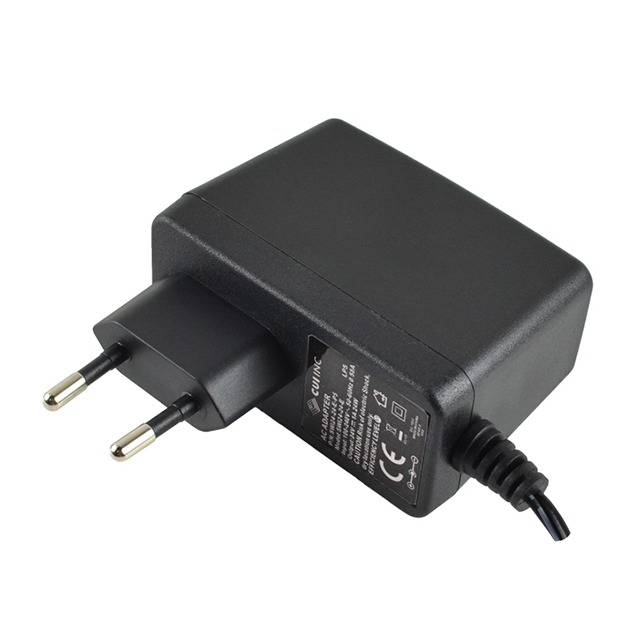

CUI Inc. SWI24-12-E-P5	24 W	12 V	Europe	CEE 7/16	CoC Tier 2 Level VI	1.34 in	70 mm	72 mm	34 mm	2.76 in	2.83 in	40 °C	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	ITE (Commercial)	1.5 m	59 in	Positive Center	CB Scheme EN IEC	Wall Mount	Fixed Blade	2.1 mm 5.5 mm	Barrel Plug		2 A	264 VAC	90 VAC			100 mW	9.5 mm				154.22 g	0.34 lb
CUI Inc. SWI24-24-E-P5	24 W	24 V	Europe	CEE 7/16	CoC Tier 2 Level VI	1.34 in	70 mm	72 mm	34 mm	2.76 in	2.83 in	40 °C	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	ITE (Commercial)	1.5 m	59 in	Positive Center	CB Scheme EN IEC	Wall Mount	Fixed Blade	2.1 mm 5.5 mm	Barrel Plug		1 A	264 VAC	90 VAC	148.32 g	0.327 lb	100 mW	9.5 mm
CUI Inc. SWI24-24-N-ST	24 W	24 V	North America	NEMA 1-15P	Level VI	1.34 in	69 mm	72 mm	34 mm	2.72 in	2.83 in	40 °C	60950-1 62368-1 C22.2 No. 60950-1	ITE (Commercial)	1.5 m	59 in		CB Scheme CCC CSA FCC IEC PSE UL	Wall Mount	Fixed Blade		Stripped Tinned Wire Leads		1 A	264 VAC	90 VAC			100 mW
CUI Inc. SWI24-24-N-P11	24 W	24 V	North America	NEMA 1-15P	Level VI	1.34 in	69 mm	72 mm	34 mm	2.72 in	2.83 in	40 °C	60950-1 62368-1 C22.2 No. 60950-1	ITE (Commercial)	1.5 m	59 in	Positive Center	CB Scheme CCC CSA FCC IEC PSE UL	Wall Mount	Fixed Blade	2.5 mm 5.5 mm	Barrel Plug		1 A	264 VAC	90 VAC			100 mW	9.5 mm
CUI Inc. SWI24-24-N-P5	24 W	24 V	North America	NEMA 1-15P	Level VI		2.05 "	2.83 "	1.34 "			40 °C	60950-1 62368-1 C22.2 No. 60950-1	ITE (Commercial)	1.5 m	59 in	Positive Center	CB Scheme CCC CSA FCC IEC PSE UL	Wall Mount	Fixed Blade	2.1 mm 5.5 mm	Barrel Plug		1 A	264 VAC	90 VAC	148.32 g	0.327 lb	100 mW	9.5 mm	34 mm	72 mm	52 mm
CUI Inc. SWI24-15-N-P5	24 W	15 V	North America	NEMA 1-15P	Level VI		2.05 "	2.83 "	1.34 "			40 °C	60950-1 62368-1 C22.2 No. 60950-1	ITE (Commercial)	1.5 m	59 in	Positive Center	CB Scheme CCC CSA FCC IEC PSE UL	Wall Mount	Fixed Blade	2.1 mm 5.5 mm	Barrel Plug		1.6 A	264 VAC	90 VAC	148.32 g	0.327 lb	100 mW	9.5 mm	34 mm	72 mm	52 mm
