FPK Series

Manufacturer: OptiFuse

Catalog

UL CLASS M FUSE, FAST ACTING 5A

Part	Fuse Type	Response Time	Breaking Capacity @ Rated Voltage	Applications	Approval Agency	Class	Current Rating (Amps)	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Voltage Rating - AC	Mounting Type	Package / Case [y]	Package / Case [x]	Package / Case	Size / Dimension [x]	Size / Dimension [diameter]	Voltage Rating - DC
OptiFuse FPK-R-5A	Cartridge	Fast Blow	20 kA DC 200 kA AC	Electrical Industrial	cULus UL 248	CC	5 A	10.3 mm	38 mm	1.496 "	0.406 "	600 VAC	Requires Holder	38 mm	10 mm	5AG

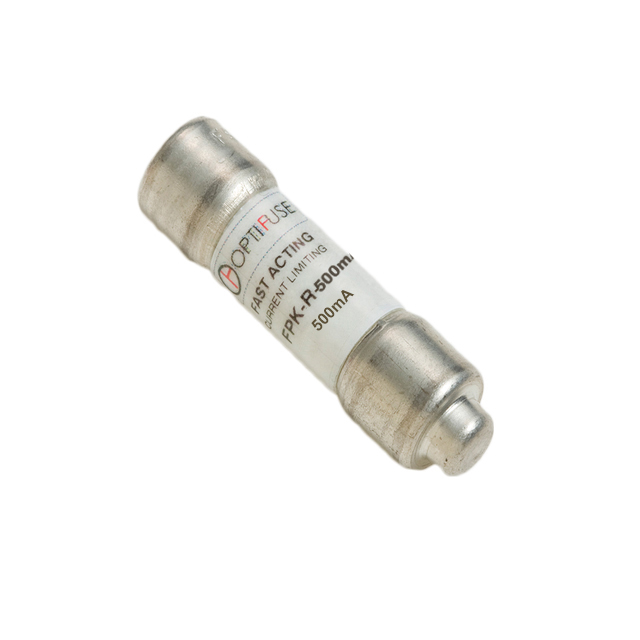

OptiFuse FPK-R-500MA	Cartridge Ceramic	Fast Blow	100 kA 200 kA		CSA UL		0.5 A			1.5 in	0.409 in	600 V	Requires Holder	38 mm	10 mm	5AG	38.1 mm	10.4 mm	600 V
OptiFuse FPK-R-4A	Cartridge	Fast Blow	20 kA DC 200 kA AC	Electrical Industrial	cULus UL 248	CC	4 A	10.3 mm	38 mm	1.496 "	0.406 "	600 VAC	Requires Holder	38 mm	10 mm	5AG
OptiFuse FPK-1A	Cartridge	Fast Blow	10 kA 100 kA	Electrical Industrial	cULus UL 248	M		10.3 mm	38 mm	1.496 "	0.406 "	600 VAC	Requires Holder	38 mm	10 mm	5AG			600 V
OptiFuse FPK-R-30A	Cartridge	Fast Blow	20 kA DC 200 kA AC	Electrical Industrial	cULus UL 248	CC	30 A	10.3 mm	38 mm	1.496 "	0.406 "	600 VAC	Requires Holder	38 mm	10 mm	5AG
OptiFuse FPK-R-2A	Cartridge	Fast Blow	20 kA DC 200 kA AC	Electrical Industrial	cULus UL 248	CC	2 A	10.3 mm	38 mm	1.496 "	0.406 "	600 VAC	Requires Holder	38 mm	10 mm	5AG
OptiFuse FPK-3A	Cartridge	Fast Blow	10 kA 100 kA	Electrical Industrial	cULus UL 248	M	3 A	10.3 mm	38 mm	1.496 "	0.406 "	600 VAC	Requires Holder	38 mm	10 mm	5AG			600 V

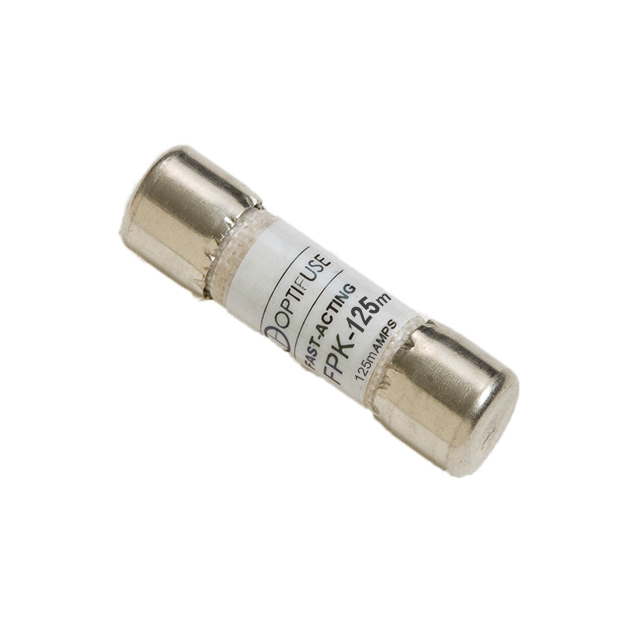

OptiFuse FPK-125MA	Cartridge Ceramic	Fast Blow	100 kA		CSA UL		0.125 Amps	10.3 mm	38 mm	1.496 "	0.406 "	600 V	Requires Holder	38 mm	10 mm	5AG			600 V
OptiFuse FPK-6A	Cartridge	Fast Blow	10 kA 100 kA	Electrical Industrial	cULus UL 248	M	6 A	10.3 mm	38 mm	1.496 "	0.406 "	600 VAC	Requires Holder	38 mm	10 mm	5AG			600 V
OptiFuse FPK-4A	Cartridge	Fast Blow	10 kA 100 kA	Electrical Industrial	cULus UL 248	M	4 A	10.3 mm	38 mm	1.496 "	0.406 "	600 VAC	Requires Holder	38 mm	10 mm	5AG			600 V
