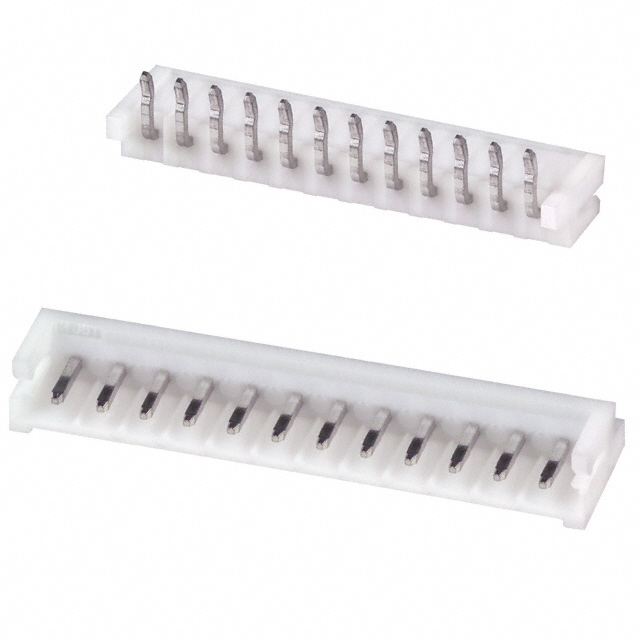

S12B-EH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 12POS 2.5MM
| Part | Style | Insulation Material | Contact Shape | Connector Type | Number of Rows | Current Rating (Amps) | Contact Finish - Post | Shrouding | Mounting Type | Material Flammability Rating | Voltage Rating | Contact Type | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Length - Post [x] | Contact Length - Post [x] | Contact Material | Fastening Type | Insulation Color | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Board to Cable/Wire | Nylon 6/6 Polyamide (PA66) | Square | Header | 1 | 3 A | Tin | Shrouded - 3 Wall | Right Angle Through Hole | UL94 V-0 | 250 V | Male Pin | All | 2.5 mm | 0.098 in | Press-Fit Solder | 85 °C | -25 °C | 12 | 0.126 " | 3.2 mm | Brass | Latch Lock | Natural | 0.165 in | 4.2 mm | 4 mm | 0.157 in |
