SKMW06 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 15V 6W
| Part | Package / Case | Voltage - Input (Max) [Max] | Approval Agency | Current - Output (Max) [Max] | Applications | Voltage - Input (Min) [Min] | Number of Outputs | Voltage - Output 1 | Efficiency | Type | Power (Watts) | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

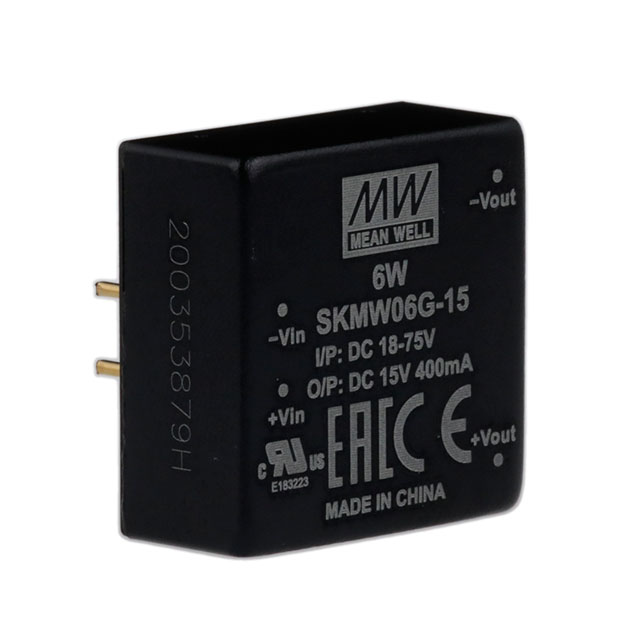

 MEAN WELL USA Inc. | 5-DIP Module 4 Leads | 75 V | CE cURus EAC | 400 mA | ITE (Commercial) | 18 V | 1 | 15 V | 86 % | Isolated Module | 6 W | 1.5 kV | -40 °C | 85 °C | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | Through Hole |

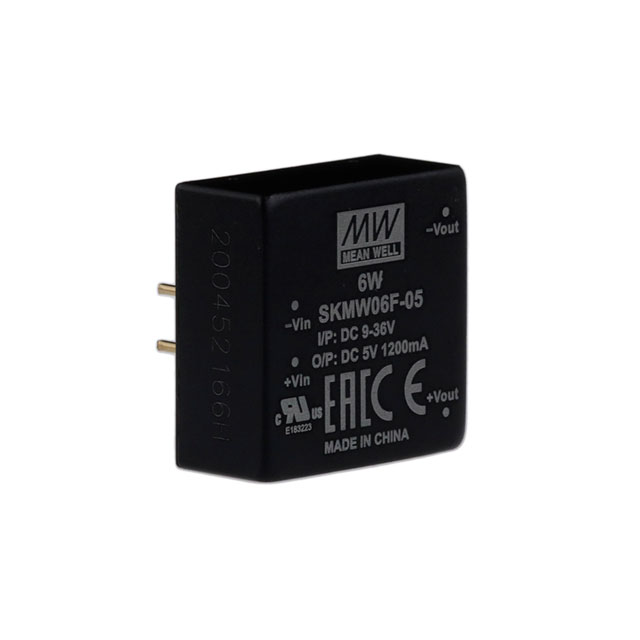

 MEAN WELL USA Inc. | 5-DIP Module 4 Leads | 36 V | CE cURus EAC | 1.2 A | ITE (Commercial) | 9 V | 1 | 5 V | 81 % | Isolated Module | 6 W | 1.5 kV | -40 °C | 85 °C | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | Through Hole |

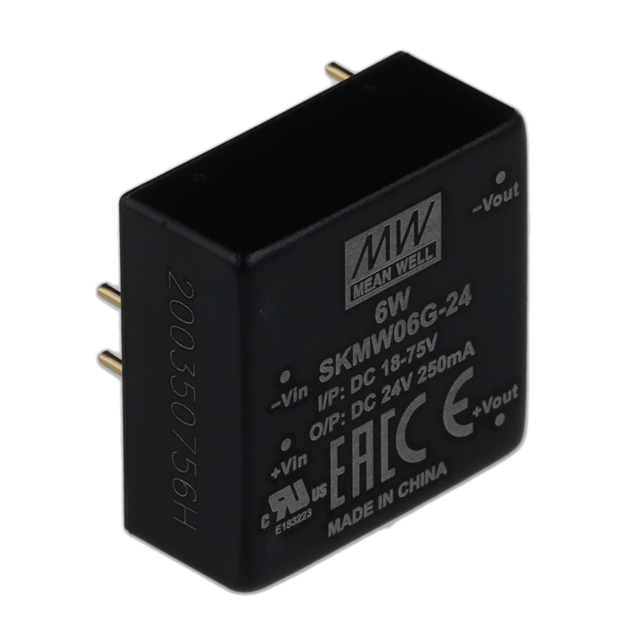

 MEAN WELL USA Inc. | 5-DIP Module 4 Leads | 75 V | CE cURus EAC | 250 mA | ITE (Commercial) | 18 V | 1 | 24 V | 86 % | Isolated Module | 6 W | 1.5 kV | -40 °C | 85 °C | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | Through Hole |

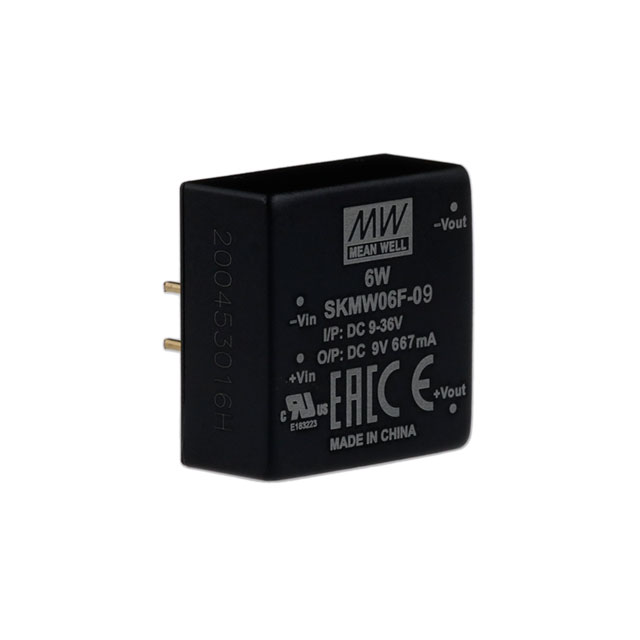

 MEAN WELL USA Inc. | 5-DIP Module 4 Leads | 36 V | CE cURus EAC | 667 mA | ITE (Commercial) | 9 V | 1 | 9 V | 83 % | Isolated Module | 6 W | 1.5 kV | -40 °C | 85 °C | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | Through Hole |

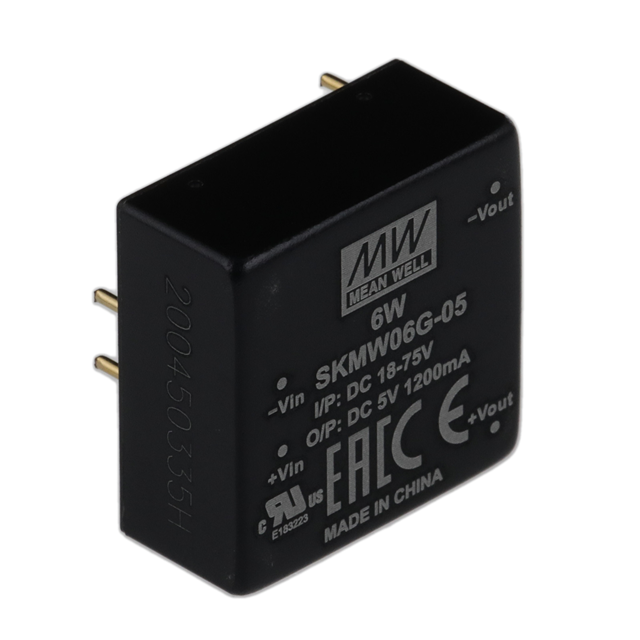

 MEAN WELL USA Inc. | 5-DIP Module 4 Leads | 75 V | CE cURus EAC | 1.2 A | ITE (Commercial) | 18 V | 1 | 5 V | 81 % | Isolated Module | 6 W | 1.5 kV | -40 °C | 85 °C | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | Through Hole |
 MEAN WELL USA Inc. | 5-DIP Module 4 Leads | 36 V | CE cURus EAC | 250 mA | ITE (Commercial) | 9 V | 1 | 24 V | 86 % | Isolated Module | 6 W | 1.5 kV | -40 °C | 85 °C | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | Through Hole |

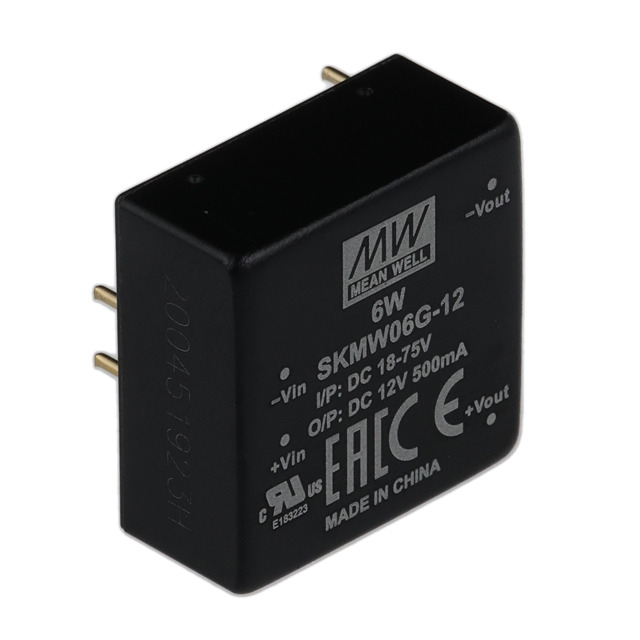

 MEAN WELL USA Inc. | 5-DIP Module 4 Leads | 75 V | CE cURus EAC | 500 mA | ITE (Commercial) | 18 V | 1 | 12 V | 85 % | Isolated Module | 6 W | 1.5 kV | -40 °C | 85 °C | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | Through Hole |

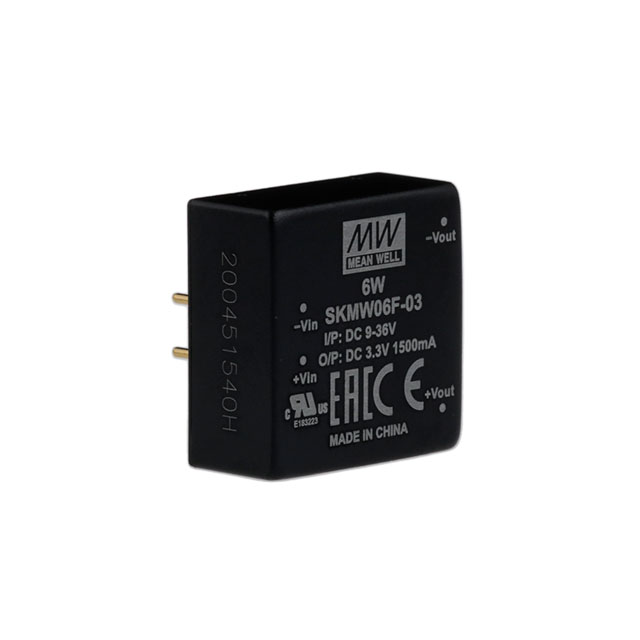

 MEAN WELL USA Inc. | 5-DIP Module 4 Leads | 36 V | CE cURus EAC | 1.5 A | ITE (Commercial) | 9 V | 1 | 3.3 V | 77 % | Isolated Module | 5 W | 1.5 kV | -40 °C | 85 °C | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | Through Hole |

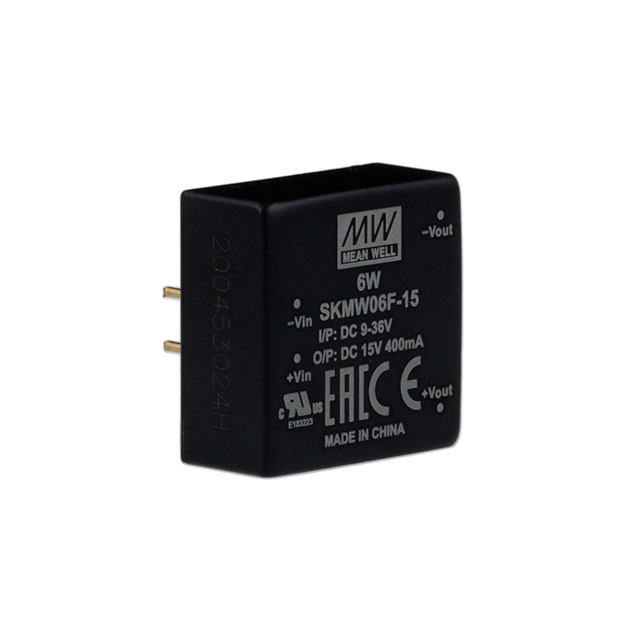

 MEAN WELL USA Inc. | 5-DIP Module 4 Leads | 36 V | CE cURus EAC | 400 mA | ITE (Commercial) | 9 V | 1 | 15 V | 85 % | Isolated Module | 6 W | 1.5 kV | -40 °C | 85 °C | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | Through Hole |

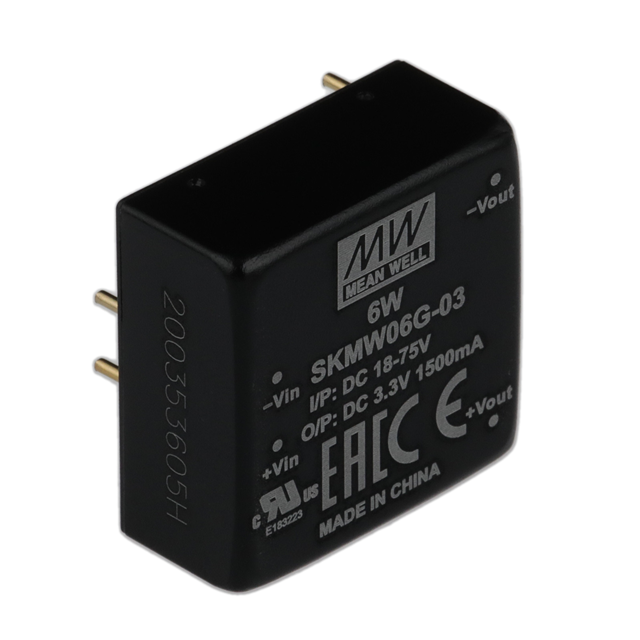

 MEAN WELL USA Inc. | 5-DIP Module 4 Leads | 75 V | CE cURus EAC | 1.5 A | ITE (Commercial) | 18 V | 1 | 3.3 V | 77 % | Isolated Module | 5 W | 1.5 kV | -40 °C | 85 °C | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | Through Hole |
