892-013 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 13POS 0.100

Part	Termination Rows	Material - Insulation	Number of Rows	Mounting Type	Termination	Contact Material	Number of Positions	Read Out	Gender	Color	Number of Positions/Bay/Row	Pitch	Pitch	Flange Feature	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-013-544-108	1	Polyphenylene Sulfide (PPS)	1	Through Hole	Wire Wrap	Copper Alloy	13	Single	Female	Black	13	0.1 "	2.54 mm	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	0.25 Ám	10 Áin	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold

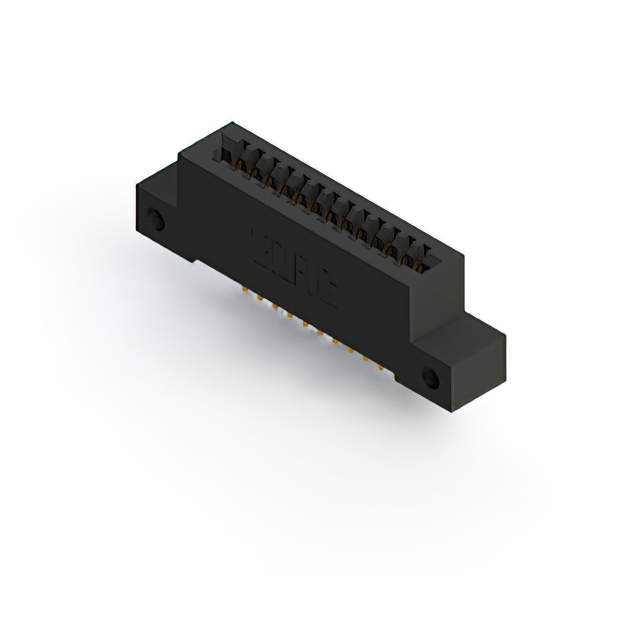

EDAC Inc. 892-013-541-112	1	Polyphenylene Sulfide (PPS)	1	Through Hole	Wire Wrap	Copper Alloy	13	Single	Female	Black	13	0.1 "	2.54 mm	Flush Mount Side Opening Unthreaded	Non Specified - Single Edge	0.25 Ám	10 Áin	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	0.128 "	3.25 mm

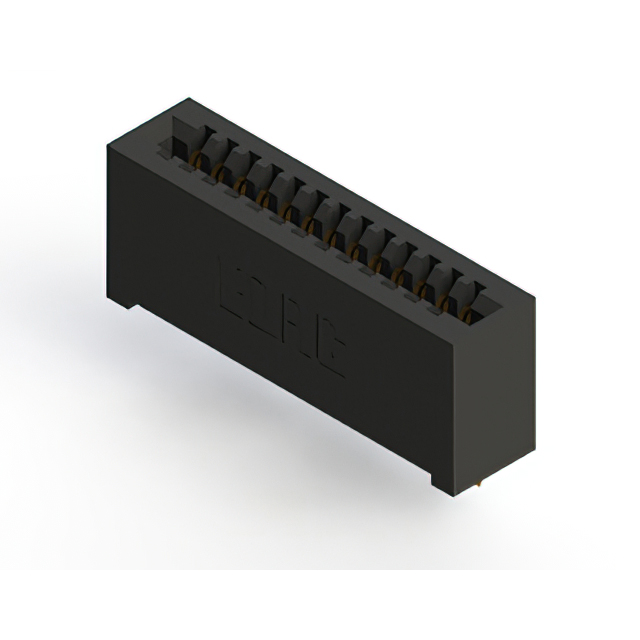

EDAC Inc. 892-013-524-101	1	Polyphenylene Sulfide (PPS)	1	Through Hole	Solder	Copper Alloy	13	Single	Female	Black	13	0.1 "	2.54 mm		Non Specified - Single Edge	0.25 Ám	10 Áin	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold
EDAC Inc. 892-013-544-102	1	Polyphenylene Sulfide (PPS)	1	Through Hole	Wire Wrap	Copper Alloy	13	Single	Female	Black	13	0.1 "	2.54 mm	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	0.25 Ám	10 Áin	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	0.128 "	3.25 mm
EDAC Inc. 892-013-558-107	1	Polyphenylene Sulfide (PPS)	1	Right Angle Through Hole	Solder	Copper Alloy	13	Single	Female	Black	13	0.1 "	2.54 mm	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	0.25 Ám	10 Áin	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold

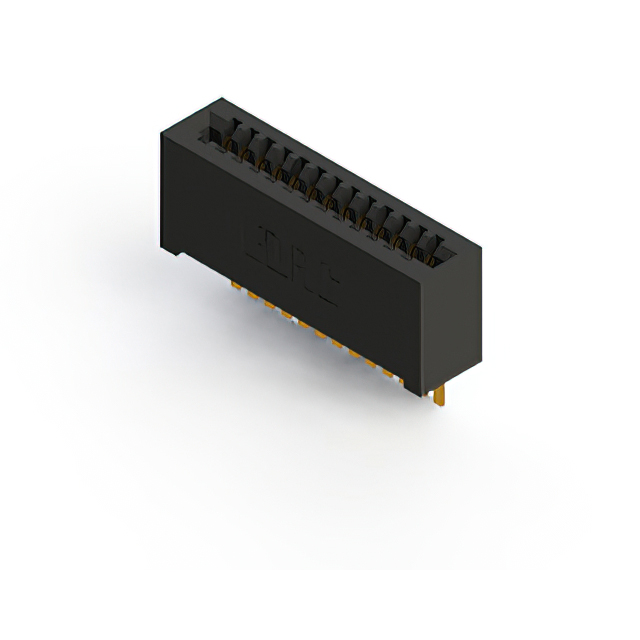

EDAC Inc. 892-013-544-101	1	Polyphenylene Sulfide (PPS)	1	Through Hole	Wire Wrap	Copper Alloy	13	Single	Female	Black	13	0.1 "	2.54 mm		Non Specified - Single Edge	0.25 Ám	10 Áin	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold

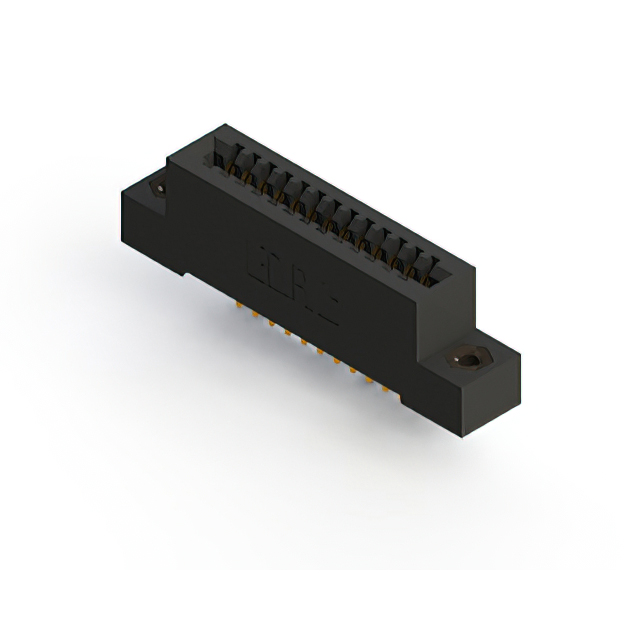

EDAC Inc. 892-013-540-108	1	Polyphenylene Sulfide (PPS)	1	Through Hole	Wire Wrap	Copper Alloy	13	Single	Female	Black	13	0.1 "	2.54 mm	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	0.25 Ám	10 Áin	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold
EDAC Inc. 892-013-540-112	1	Polyphenylene Sulfide (PPS)	1	Through Hole	Wire Wrap	Copper Alloy	13	Single	Female	Black	13	0.1 "	2.54 mm	Flush Mount Side Opening Unthreaded	Non Specified - Single Edge	0.25 Ám	10 Áin	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	0.128 "	3.25 mm
EDAC Inc. 892-013-541-108	1	Polyphenylene Sulfide (PPS)	1	Through Hole	Wire Wrap	Copper Alloy	13	Single	Female	Black	13	0.1 "	2.54 mm	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	0.25 Ám	10 Áin	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold
EDAC Inc. 892-013-542-107	1	Polyphenylene Sulfide (PPS)	1	Through Hole	Wire Wrap	Copper Alloy	13	Single	Female	Black	13	0.1 "	2.54 mm	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	0.25 Ám	10 Áin	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold
