86130105 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

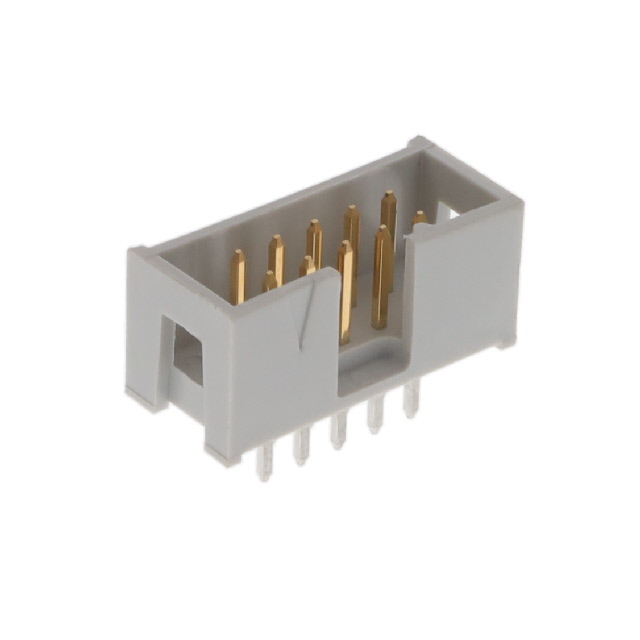

CONN HEADER VERT 10POS 2.54MM
| Part | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Mating | Contact Finish - Post | Fastening Type | Termination | Material Flammability Rating | Number of Positions | Style | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Mounting Type | Contact Shape | Contact Type | Contact Material | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Shrouding | Pitch - Mating | Pitch - Mating | Insulation Material | Features | Insulation Height | Insulation Height | Insulation Color | Contact Length - Mating | Contact Length - Mating [x] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 2.54 mm | 0.1 in | Gold or Gold-Palladium | Tin | Push-Pull | Solder | UL94 V-0 | 10 | Board to Cable/Wire | All | 0.114 in | 2.9 mm | Through Hole | Circular | Male Pin | Copper Alloy | Header | -55 °C | 125 °C | 2 | Shrouded - 4 Wall | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) | Keying Slot | 0.366 in | 9.3 mm | Gray | 6.1 mm | 0.24 in | |
 Amphenol ICC (FCI) | 2.54 mm | 0.1 in | Gold or Gold-Palladium | Tin | Push-Pull | Solder | UL94 V-0 | 10 | Board to Cable/Wire | All | 0.171 in | 4.35 mm | Through Hole | Circular | Male Pin | Copper Alloy | Header | -55 °C | 125 °C | 2 | Shrouded - 4 Wall | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) | Keying Slot | 0.366 in | 9.3 mm | Gray | 6.1 mm | 0.24 in | 250 VDC |
