6220 Series

Catalog

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); 6220; IP40

Part	Material Flammability Rating	Termination	Termination	Termination	Connector Style	Ingress Protection	Connector Type	Panel Thickness	Panel Thickness	Voltage Rating - Appliance Inlet	Filter Type	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Mounting Type	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]

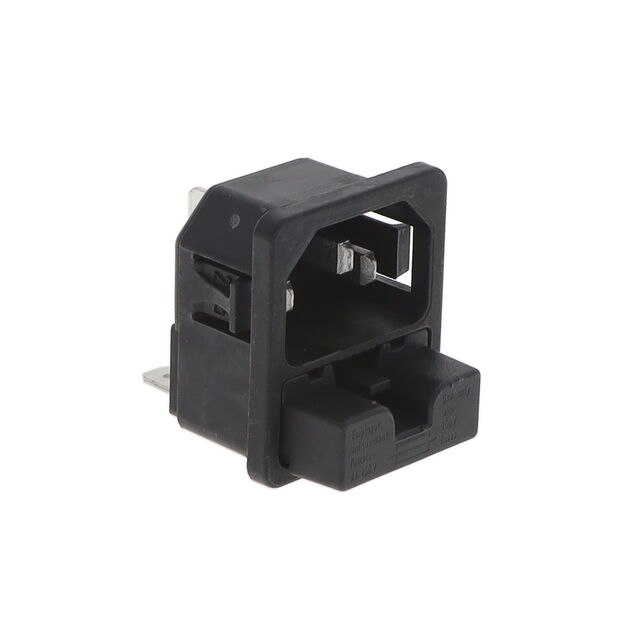

SCHURTER Inc. 6220.5225	UL94 V-0	0.189 "	4.8 mm	Quick Connect	IEC 320-C14	IP40	Receptacle Male Blades - Module	0.098 in	2.5 mm	250 VAC	Unfiltered - Commercial	Fuse Holder	10 A	Panel Mount Snap-In	CCC CSA ENEC UL	27.6 mm	31.5 mm

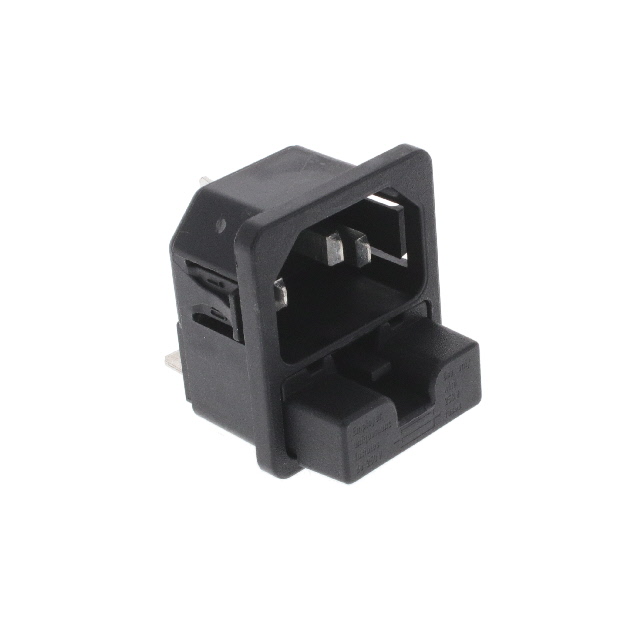

SCHURTER Inc. 6220.5210	UL94 V-0	0.189 "	4.8 mm	Quick Connect	IEC 320-C14	IP40	Receptacle Male Blades - Module	0.039 in	1 mm	250 VAC	Unfiltered - Commercial	Fuse Holder	10 A	Panel Mount Snap-In	CCC CSA ENEC UL	27.6 mm	31.5 mm

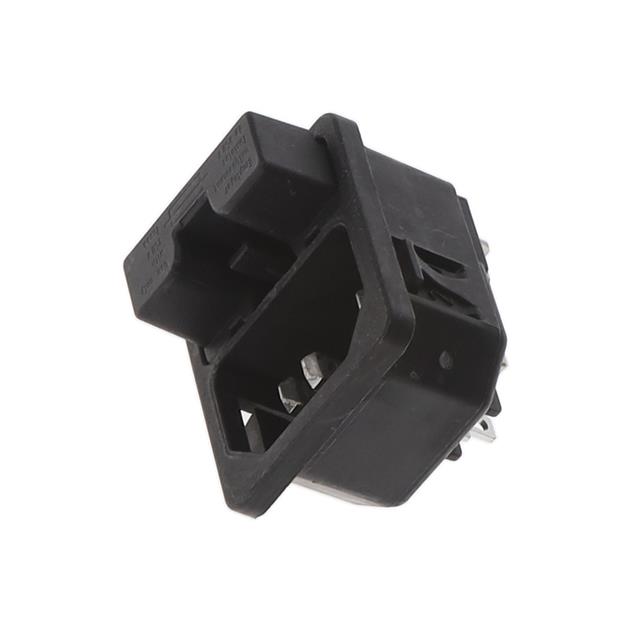

SCHURTER Inc. 6220.5120	UL94 V-0			Solder Eyelet	IEC 320-C14	IP40	Receptacle Male Blades - Module	0.079 in	2 mm	250 VAC	Unfiltered - Commercial	Fuse Holder	10 A	Panel Mount Snap-In	CCC CSA ENEC UL	27.6 mm	31.5 mm

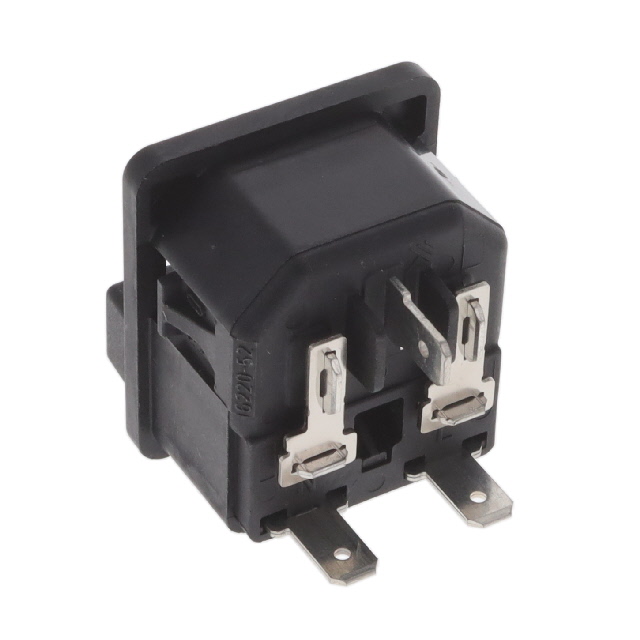

SCHURTER Inc. 6220.5230	UL94 V-0	0.189 "	4.8 mm	Quick Connect	IEC 320-C14	IP40	Receptacle Male Blades - Module	0.118 "	3 mm	250 VAC	Unfiltered - Commercial	Fuse Holder	10 A	Panel Mount Snap-In	CCC CSA ENEC UL	27.6 mm	31.5 mm
SCHURTER Inc. 6220.5110	UL94 V-0			Solder Eyelet	IEC 320-C14	IP40	Receptacle Male Blades - Module	0.039 in	1 mm	250 VAC	Unfiltered - Commercial	Fuse Holder	10 A	Panel Mount Snap-In	CCC CSA ENEC UL	27.6 mm	31.5 mm
