M2122TC Series

Catalog

SWITCH TOGGLE DPDT 6A 125V

Part	Electrical Life	Panel Cutout Dimensions [diameter]	Mounting Type	Circuit	Actuator Length [x]	Voltage Rating - AC	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Illumination	Illumination Voltage (Nominal)	Current Rating (Amps)	Bushing Thread	Voltage Rating - DC	Termination Style	Features	Switch Function

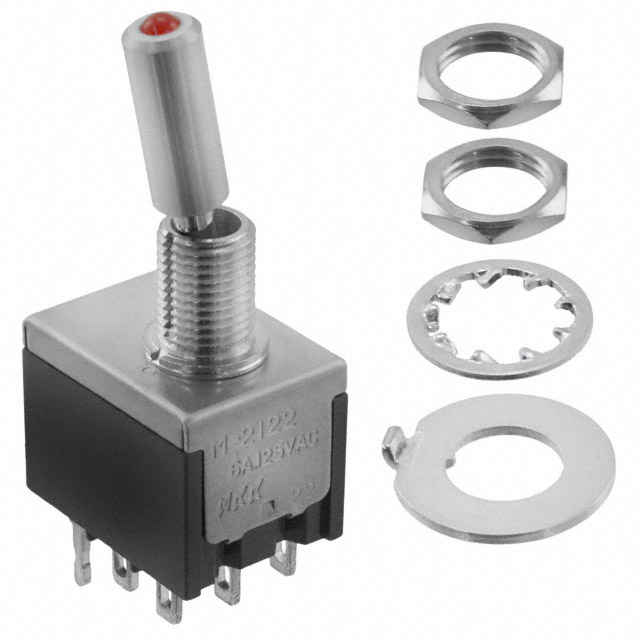

NKK Switches M2122TCFW02	25000 Steps	6.5 mm	Panel Mount	DPDT	14.7 mm	125 V	Green/Red LED	55 °C	-10 °C	Standard Round	Illuminated	1.7 VDC 2 VDC	3 A 6 A	1/4-40	30 V	Quick Connect - 0.062" (1.5mm)	Epoxy Sealed Terminals	On-On
NKK Switches M2122TCW01/U	25000 Steps	6.5 mm	Panel Mount	DPDT	14.7 mm	125 V	LED Red	55 °C	-10 °C	Standard Round	Illuminated	2.2 VDC	3 A 6 A	1/4-40	30 V	Solder Lug	Epoxy Sealed Terminals	On-On
NKK Switches M2122TCW03	25000 Steps	6.5 mm	Panel Mount	DPDT	14.7 mm	125 V	LED Red	55 °C	-10 °C	Standard Round	Illuminated	2.2 VDC	3 A 6 A	1/4-40	30 V	PC Pin	Epoxy Sealed Terminals	On-On
NKK Switches M2122TCW01	25000 Steps	6.5 mm	Panel Mount	DPDT	14.7 mm	125 V	LED Red	55 °C	-10 °C	Standard Round	Illuminated	2.2 VDC	3 A 6 A	1/4-40	30 V	Solder Lug	Epoxy Sealed Terminals	On-On
NKK Switches M2122TCG01	25000 Steps	6.5 mm	Panel Mount	DPDT	14.7 mm	28 V	LED Red	55 °C	-10 °C	Standard Round	Illuminated	2.2 VDC	0.4 VA	1/4-40	28 V	Solder Lug	Epoxy Sealed Terminals	On-On
