GFC0624 Series
Manufacturer: Delta Electronics
Beta
⌘K

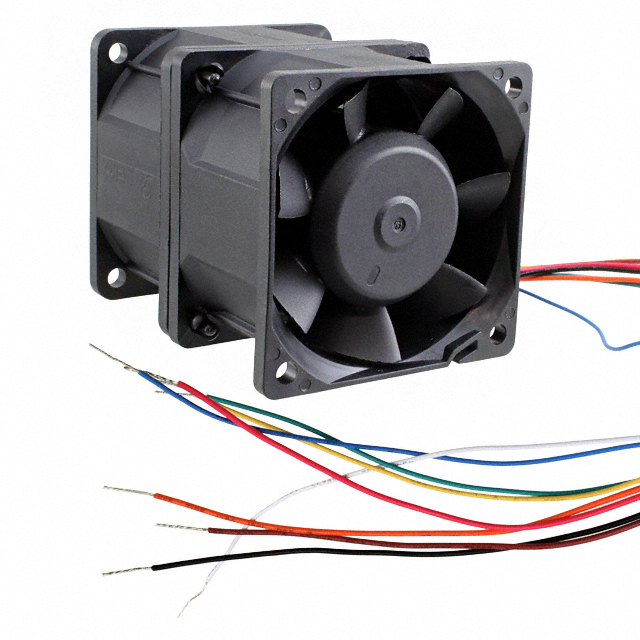

FAN AXIAL DUAL 60X76MM 21VDC
| Part | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Lifetime @ Temp. | Material - Frame | Material - Blade | Voltage - Rated | Features | Power (Watts) | Fan Type | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Noise | Size / Dimension [z] | Size / Dimension [x] | Static Pressure | Static Pressure | RPM [custom] | RPM [custom] | Air Flow | Air Flow | Termination | Width [x] | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 18 VDC | 26 VDC | 1.4 A | 40 °C 50000 Hrs | Plastic | Plastic | 21 VDC | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 31.2 W | Tubeaxial (Dual) | CE cURus TUV | -10 °C | 60 °C | 71.5 dB(A) | 60 mm | 60 mm | 3.025 in H2O | 753.5 Pa | 12500 RPM | 11300 RPM | 69.4 CFM | 1.94 mł/min | 4 | 76 mm | Ball |
