SM-43 Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER RESISTORS - SMD 5 KW 5MM SMD 5 TURN, J-LEAD, SIDE-ADJUSTMENT

Part	Power (Watts)	Power (Watts)	Number of Turns	Adjustment Type	Termination Style	Temperature Coefficient	Resistance	Resistive Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Tolerance
Nidec Components Corporation SM-43A502	0.25 W	0.25 W	5	Side Adjustment	J Lead	100 ppm/°C	5 kOhms	Cermet	0.189 "	4.6 mm	4.8 mm	0.181 "	Surface Mount	10 %

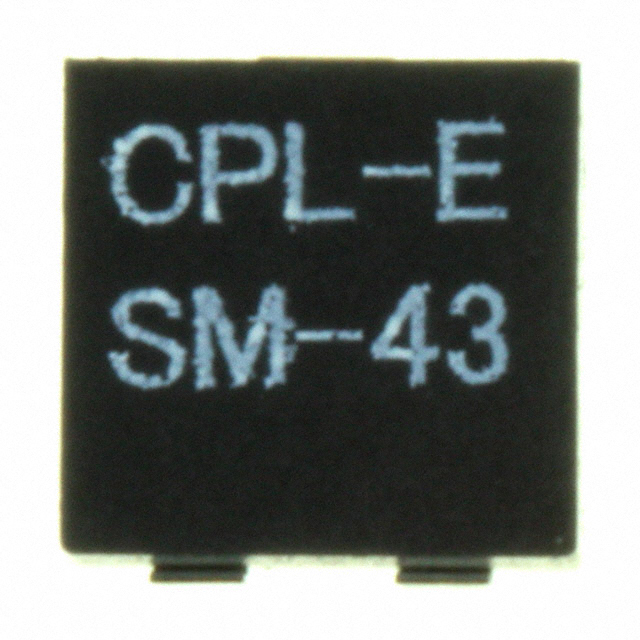

Nidec Components Corporation SM-43TA103	0.25 W	0.25 W	5	Side Adjustment	J Lead	100 ppm/°C	10000 Ohms	Cermet	0.189 "	4.6 mm	4.8 mm	0.181 "	Surface Mount	10 %
Nidec Components Corporation SM-43B503	0.25 W	0.25 W	5	Side Adjustment	Gull Wing	100 ppm/°C	50000 Ohms	Cermet	0.189 "	4.6 mm	4.8 mm	0.181 "	Surface Mount	10 %
Nidec Components Corporation SM-43X202	0.25 W	0.25 W	5	Top Adjustment	Gull Wing	100 ppm/°C	2 kOhms	Cermet	0.189 "	3.5 mm	4.8 mm	0.138 in	Surface Mount	10 %
Nidec Components Corporation SM-43X104	0.25 W	0.25 W	5	Top Adjustment	Gull Wing	100 ppm/°C	100 kOhms	Cermet	0.189 "	3.5 mm	4.8 mm	0.138 in	Surface Mount	10 %
Nidec Components Corporation SM-43A500	0.25 W	0.25 W	5	Side Adjustment	J Lead	100 ppm/°C	50 Ohms	Cermet	0.189 "	4.6 mm	4.8 mm	0.181 "	Surface Mount	10 %
Nidec Components Corporation SM-43B201	0.25 W	0.25 W	5	Side Adjustment	Gull Wing	100 ppm/°C	200 Ohms	Cermet	0.189 "	4.6 mm	4.8 mm	0.181 "	Surface Mount	10 %
Nidec Components Corporation SM-43TB204	0.25 W	0.25 W	5	Side Adjustment	Gull Wing	100 ppm/°C	200000 Ohms	Cermet	0.189 "	4.6 mm	4.8 mm	0.181 "	Surface Mount	10 %
Nidec Components Corporation SM-43TB205	0.25 W	0.25 W	5	Side Adjustment	Gull Wing	100 ppm/°C	2 MOhms	Cermet	0.189 "	4.6 mm	4.8 mm	0.181 "	Surface Mount	10 %
