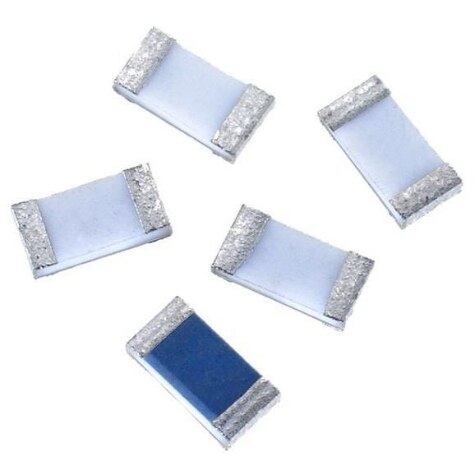

Surface Mount Fuses Surface Mt Chip fuse 1206 size, 50A
Surface Mount Fuses Surface Mt Chip fuse 1206 size, 50A
| Part | DC Cold Resistance | Breaking Capacity @ Rated Voltage | Mounting Type | Melting I²t | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Fuse Type | Response Time | Current Rating (Amps) | Approval Agency | Melting I˛t | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 0.0016 Ohms | 150 A | Surface Mount | 100 | -55 C | 125 °C | 50 VDC | 1.58 mm | 0.63 mm | 0.025 in | 3.2 mm | 0.126 in | 0.062 in | 1206 (3216 Metric) | Board Mount (Cartridge Style Excluded) | Fast Blow | 20 A | AEC-Q200 CE cURus | ||
Bel Fuse Inc. | 0.065 Ohms | 50 A 100 A | Surface Mount | 1.3 | -55 C | 125 °C | 63 VDC | 1.58 mm | 0.63 mm | 0.025 in | 3.2 mm | 0.126 in | 0.062 in | 1206 (3216 Metric) | Board Mount (Cartridge Style Excluded) | Fast Blow | 3 A | AEC-Q200 CE cURus | 1.3 | 50 V |
Bel Fuse Inc. | 150 A | Surface Mount | 25 | -55 C | 125 °C | 50 VDC | 1.58 mm | 0.63 mm | 0.025 in | 3.2 mm | 0.126 in | 0.062 in | 1206 (3216 Metric) | Board Mount (Cartridge Style Excluded) | Fast Blow | 10 A | AEC-Q200 CE cURus | |||
Bel Fuse Inc. | 0.016 Ohms | 50 A 100 A | Surface Mount | 12.5 | -55 C | 125 °C | 63 VDC | 1.58 mm | 0.63 mm | 0.025 in | 3.2 mm | 0.126 in | 0.062 in | 1206 (3216 Metric) | Board Mount (Cartridge Style Excluded) | Fast Blow | 7 A | AEC-Q200 CE cURus | 50 V | |
Bel Fuse Inc. | 0.0013 Ohms | 150 A | Surface Mount | 225 I²t | -55 C | 125 °C | 50 VDC | 1.58 mm | 0.63 mm | 0.025 in | 3.2 mm | 0.126 in | 0.062 in | 1206 (3216 Metric) | Board Mount (Cartridge Style Excluded) | Fast Blow | 25 A | AEC-Q200 CE cURus | ||
 Bel Fuse Inc. | 50 A 100 A | Surface Mount | 2.6 | -55 C | 125 °C | 63 VDC | 1.58 mm | 0.63 mm | 0.025 in | 3.2 mm | 0.126 in | 0.062 in | 1206 (3216 Metric) | Board Mount (Cartridge Style Excluded) | Fast Blow | 3.5 A | AEC-Q200 CE cURus | 50 V | ||
Bel Fuse Inc. | 0.02 Ohms | 50 A 100 A | Surface Mount | 8 | -55 C | 125 °C | 63 VDC | 1.58 mm | 0.63 mm | 0.025 in | 3.2 mm | 0.126 in | 0.062 in | 1206 (3216 Metric) | Board Mount (Cartridge Style Excluded) | Fast Blow | 6 A | AEC-Q200 CE cURus | 50 V | |
Bel Fuse Inc. | 50 A 100 A | Surface Mount | 4.1 | -55 C | 125 °C | 63 VDC | 1.58 mm | 0.63 mm | 0.025 in | 3.2 mm | 0.126 in | 0.062 in | 1206 (3216 Metric) | Board Mount (Cartridge Style Excluded) | Fast Blow | 5 A | AEC-Q200 CE cURus | 50 V | ||
Bel Fuse Inc. | 150 A | Surface Mount | 80 | -55 C | 125 °C | 50 VDC | 1.58 mm | 0.63 mm | 0.025 in | 3.2 mm | 0.126 in | 0.062 in | 1206 (3216 Metric) | Board Mount (Cartridge Style Excluded) | Fast Blow | 15 A | AEC-Q200 CE cURus | |||
Bel Fuse Inc. | 150 A | Surface Mount | 48 | -55 C | 125 °C | 50 VDC | 1.58 mm | 0.63 mm | 0.025 in | 3.2 mm | 0.126 in | 0.062 in | 1206 (3216 Metric) | Board Mount (Cartridge Style Excluded) | Fast Blow | 12 Amps | AEC-Q200 CE cURus |
