324169 Series

Catalog

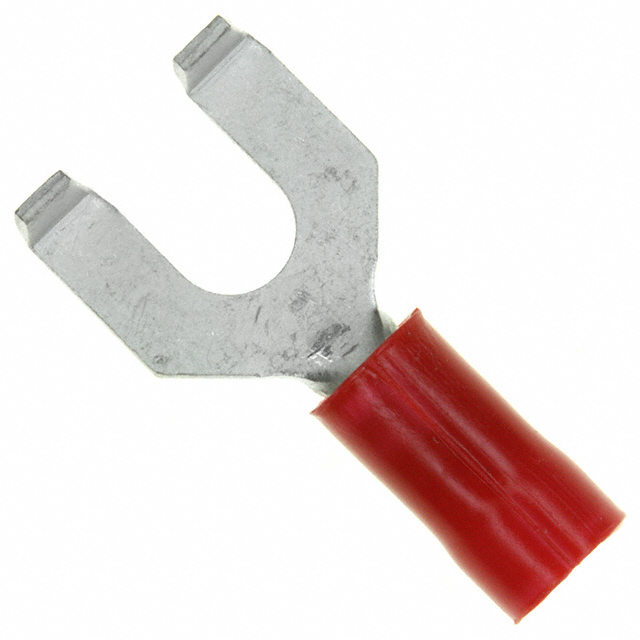

FLANGED SPADE TONGUE TERMINAL 16-22AWG COPPER RED 21.39MM TIN T/R

Part	Material - Insulation	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Features	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Color	Terminal Type	Mounting Type	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Contact Finish	Length - Termination	Length - Termination	Termination	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Width - Outer Edges [x]	Width - Outer Edges	Contact Material	Insulation
TE Connectivity Raychem Cable Protection 2-324169-1	Poly-Vinyl Chloride (PVC)	8 Stud	22.17 mm	0.873 in	Serrated Termination	22 AWG	16 AWG	0.14 in	0.105 in	3.56 mm	2.67 mm	Red	Flanged	Free Hanging (In-Line)	0.25 in	6.35 mm	Tin	10.57 mm	0.416 in	Crimp	0.171 in	4.34 mm	0.416 in	10.57 mm	Copper	Insulated
