HATF903 Series
Manufacturer: Hasco Relays
Beta
⌘K
RELAY SPST 30A 12V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Switching Voltage [Max] | Must Release Voltage | Termination Style | Must Operate Voltage | Coil Insulation | Contact Rating (Current) | Mounting Type | Release Time | Coil Voltage | Contact Form | Operate Time | Coil Current | Contact Material | Switching Voltage | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

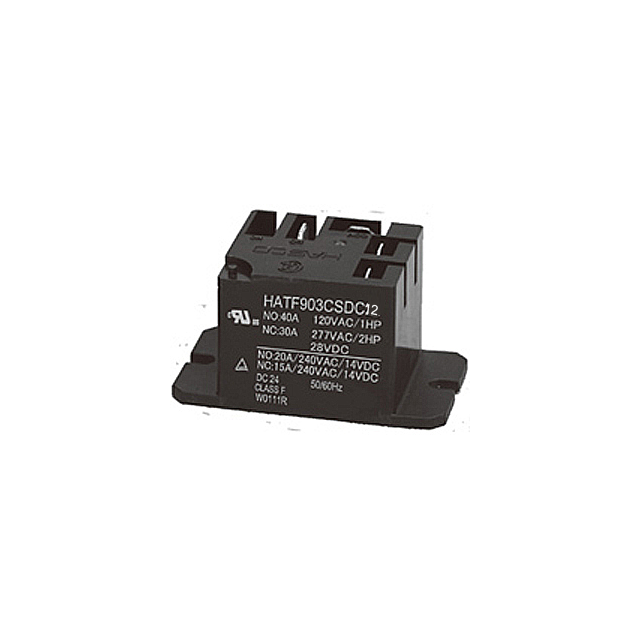

 Hasco Relays | -40 C | 105 ░C | Non Latching | 277 VAC | 1.2 VDC | Quick Connect - 0.250" (6.3mm) | 9 VDC | Class F | 30 A | Chassis Mount | 10 ms | 12 VDC | SPST-NO (1 Form A) | 15 ms | 77.4 mA | Silver Alloy | ||

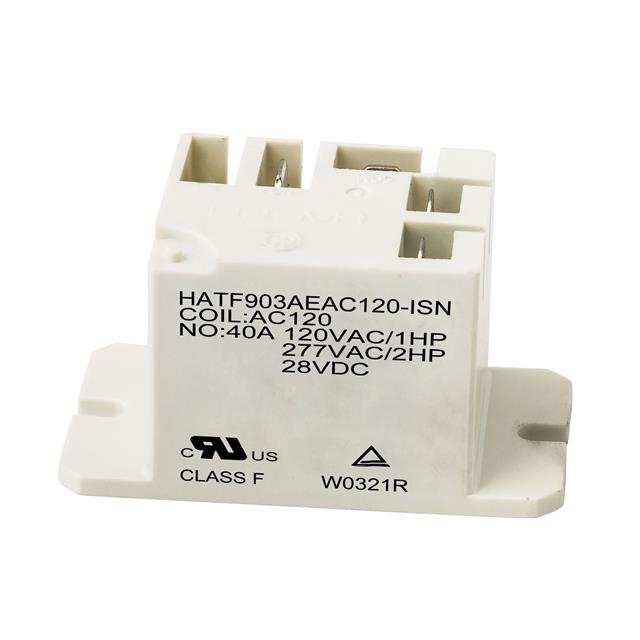

 Hasco Relays | -40 C | 85 °C | Non Latching | 12 VAC | 96 VAC | Class F | 40 A | Surface Mount | 10 ms | 120 VAC | SPST-NO (1 Form A) | 15 ms | 40 mA | Silver Alloy | 277 VAC | Sealed - Flux Protection |
