ANT-LPL Series

Catalog

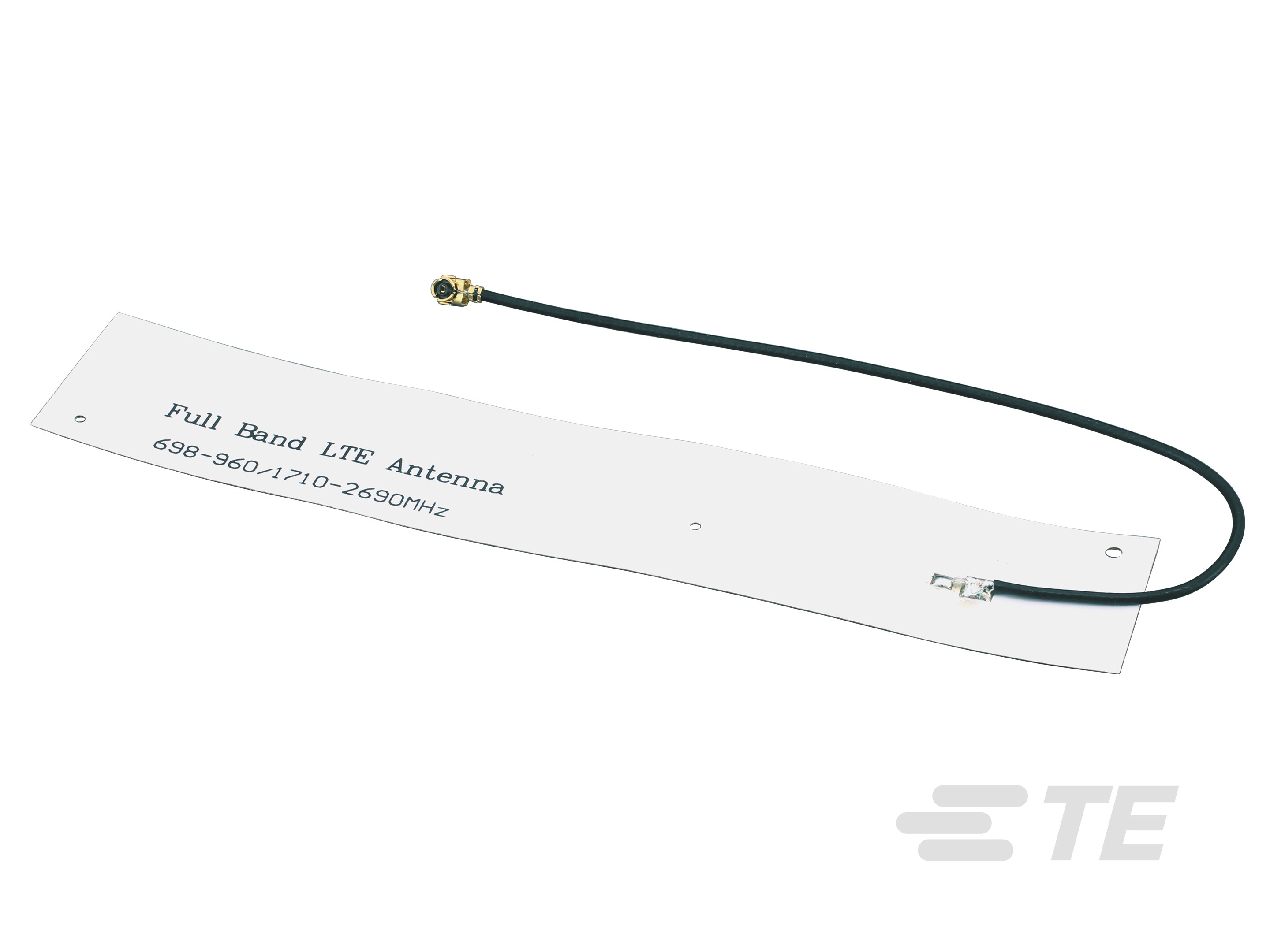

ANTENNA FPC LTE/ISM 1.13 100 UFL

Part	Termination	Termination	Gain	Antenna Type	Mounting Type	VSWR	Height (Max) [z]	Height (Max) [Max] [z]	Frequency Group	Applications	Features	Features	RF Family/Standard	Number of Bands	Return Loss	Power - Max [Max]	Frequency (Center/Band)
TE Connectivity AMP Connectors ANT-LPL-FPC-100	I-PEX MHF1 IPEX MHF1	U.FL	2.9 dBi 4.9 dBic 5 dBi 5.2 dBi 5.3 dBi 5.6 dBi 6.5 dBi	Flat Patch	Adhesive	1.4 1.8 2.3 2.4 3.5 4.6	0.2 mm	0.01 in	Wide Band	4G 5G LTE	Cable	100 mm	Cellular General ISM	7	-15.6 dB -10.9 dB -8.1 dB -7.7 dB -5.1 dB -3.8 dB	2 W	1.96 GHz 2.35 GHz 2.44 GHz 2.59 GHz 3.55 GHz 750 MHz 876 MHz
