2307816 Series

Catalog

16P,2MM,B-B,REC,DRVT,SMD,SN,TR,W

Part	Material Flammability Rating	Contact Finish - Post	Termination	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Contact Material	Connector Type	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Type	Number of Rows	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Features	Number of Positions	Fastening Type	Number of Positions

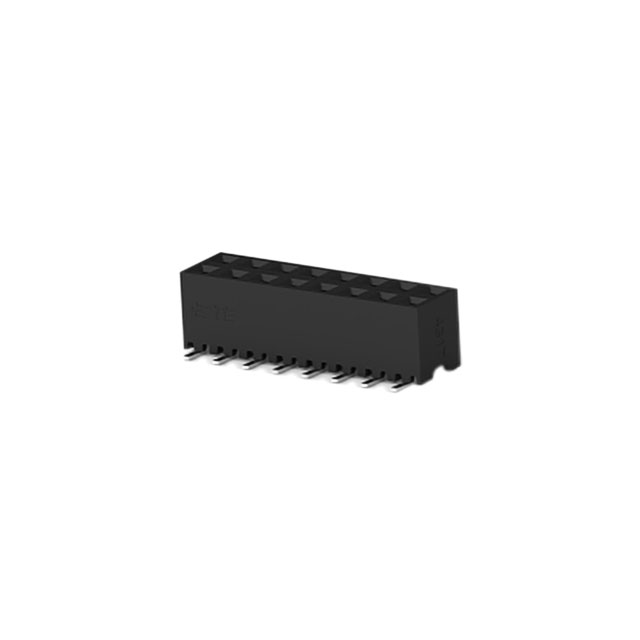

TE Connectivity Raychem Cable Protection 1-2307816-6	UL94 V-0	Tin	Solder	0.079 in	2 mm	125 VDC	118.1 µin	3 µm	All	3 µm	118.1 µin	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Surface Mount	Phosphor Bronze	Receptacle Bottom or Top Entry	0.177 in	4.5 mm	2 A	Female Socket	2	Square	-40 °C	105 ░C	Black	Pick and Place	16	Push-Pull

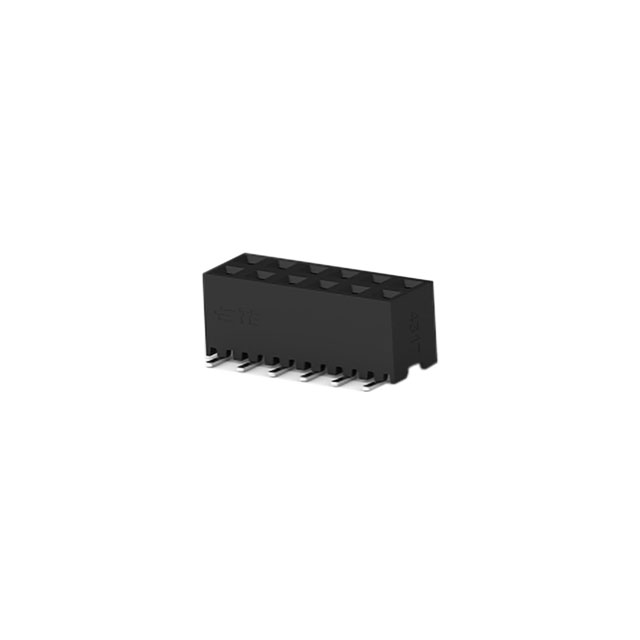

TE Connectivity Raychem Cable Protection 1-2307816-4	UL94 V-0	Tin	Solder	0.079 in	2 mm	125 VDC	118.1 µin	3 µm	All	3 µm	118.1 µin	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Surface Mount	Phosphor Bronze	Receptacle Bottom or Top Entry	0.177 in	4.5 mm	2 A	Female Socket	2	Square	-40 °C	105 ░C	Black	Pick and Place		Push-Pull	14
