021901.6

021901.6 Series

FUSE 250V EBC TL 5X20 RoHS 1.6A

Manufacturer: LITTELFUSE

Catalog

FUSE 250V EBC TL 5X20 RoHS 1.6A

Description

AI

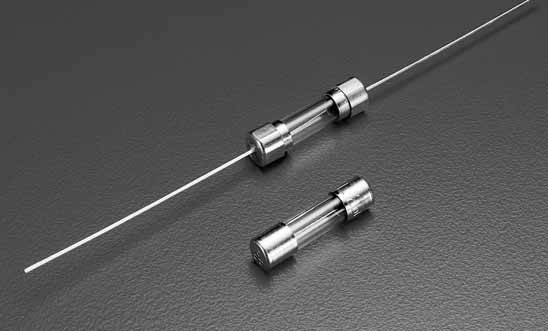

5x20mm time-Lag glass body cartridge fuse designed to IEC specification

Catalog

FUSE 250V EBC TL 5X20 RoHS 1.6A

Part	Melting I²t	Current Rating (Amps)	Mounting Type	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Fuse Type	Package / Case [x]	Package / Case [y]	Response Time	Breaking Capacity @ Rated Voltage	Package / Case
LITTELFUSE 021901.6MXABP	44.2	1.6 A	Requires Holder	250 V	20 mm	0.205 in	0.787 "	5.2 mm	CCC CE CSA PSE SEMKO UL VDE	-55 C	125 °C	Cartridge Glass	5 mm	20 mm	Slow Blow	150 A
LITTELFUSE 021901.6MXAP	44.2	1.6 A	Requires Holder	250 V	20 mm	0.205 in	0.787 "	5.2 mm	CCC CE CSA PSE SEMKO UL VDE	-55 C	125 °C	Cartridge Glass	5 mm	20 mm	Slow Blow	150 A
LITTELFUSE 021901.6MXAF5P	44.2	1.6 A	Requires Holder	250 V	20 mm	0.205 in	0.787 "	5.2 mm	CCC CE CSA PSE SEMKO UL VDE	-55 C	125 °C	Cartridge Glass	5 mm	20 mm	Slow Blow	150 A
LITTELFUSE 021901.6TXAP	44.2	1.6 A	Requires Holder	250 V	20 mm	0.205 in	0.787 "	5.2 mm	CCC CE CSA PSE SEMKO UL VDE	-55 C	125 °C	Cartridge Glass	5 mm	20 mm	Slow Blow	150 A
LITTELFUSE 021901.6MXAEP	44.2	1.6 A	Through Hole	250 V	22.5 mm	0.228 "	0.886 in	5.8 mm	CCC CE CSA PSE SEMKO UL VDE	-55 C	125 °C	Cartridge Glass	5 mm	20 mm	Slow Blow	150 A	Axial
