Schaffner FN2660 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 250VAC 10A CHASS MNT

Part	Configuration	Inductance	Applications	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Current	Frequency - Operating	Mounting Type	Termination Style	Voltage - Rated AC	Inductance [custom]	Inductance [custom]
TE Connectivity AMP Connectors FN2660-10-103-C0909	Two Stage	8.3 mH	General Purpose	Single Phase	85 °C	-40 C	10 A	60 Hz	Chassis Mount	IEC 320-C14 Terminal Block	250 V
TE Connectivity AMP Connectors FN2660-16-05-C0909	Two Stage		General Purpose	Single Phase	85 °C	-40 C	16 A	60 Hz	Chassis Mount	IEC 320-C14 Quick Connect	250 V	4 mH	4 mH
TE Connectivity AMP Connectors FN2660-10-08-C0909	Two Stage	8.3 mH	General Purpose	Single Phase	85 °C	-40 C	10 A	60 Hz	Chassis Mount	IEC 320-C20 Threaded Post (M4)	250 V
TE Connectivity AMP Connectors FN2660-20-103-C0909	Two Stage		General Purpose	Single Phase	85 °C	-40 C	20 A	60 Hz	Chassis Mount	IEC 320-C14 Terminal Block	250 V	2.4 mH	2.4 mH

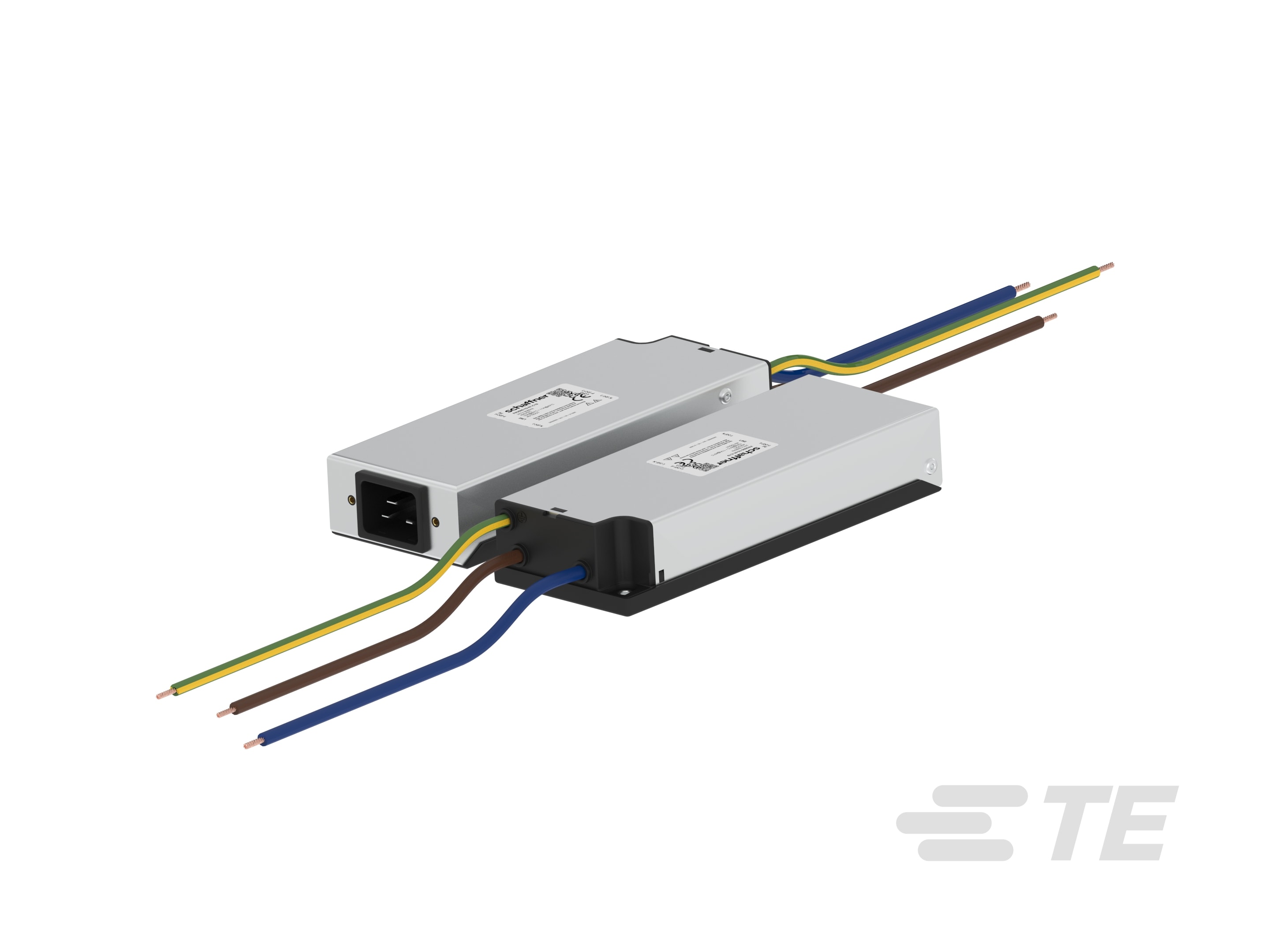

TE Connectivity AMP Connectors FN2660-16-07-C0909	Two Stage		General Purpose	Single Phase	85 °C	-40 C	16 A	60 Hz	Chassis Mount	IEC 320-C14 Wire Leads	250 V	4 mH	4 mH
TE Connectivity AMP Connectors FN2660-15-103-C0909	Two Stage		General Purpose	Single Phase	85 °C	-40 C	15 A	60 Hz	Chassis Mount	IEC 320-C14 Terminal Block	250 V	4 mH	4 mH
TE Connectivity AMP Connectors FN2660-10-07-C0909	Two Stage	8.3 mH	General Purpose	Single Phase	85 °C	-40 C	10 A	60 Hz	Chassis Mount	IEC 320-C14 Wire Leads	250 V
TE Connectivity AMP Connectors FN2660-20-07-C0909	Two Stage		General Purpose	Single Phase	85 °C	-40 C	20 A	60 Hz	Chassis Mount	IEC 320-C14 Wire Leads	250 V	2.4 mH	2.4 mH
TE Connectivity AMP Connectors FN2660-20-08-C0909	Two Stage		General Purpose	Single Phase	85 °C	-40 C	20 A	60 Hz	Chassis Mount	IEC 320-C20 Threaded Post (M4)	250 V	2.4 mH	2.4 mH
TE Connectivity AMP Connectors FN2660-20-07-C0505	Two Stage	2.4 mH	General Purpose	Single Phase	85 °C	-40 C	20 A	60 Hz	Chassis Mount	IEC 320-C14 Wire Leads	250 V
