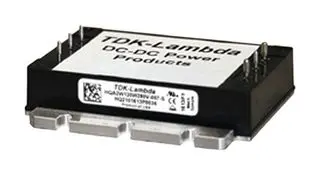

HQA120 Series
Manufacturer: TDK Corporation
Beta
⌘K
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, 120 W, 1 OUTPUT, 15 V
| Part | Number of Outputs | Type | Features | Efficiency | Approval Agency | Supplier Device Package | Voltage - Output 1 | Applications | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Control Features | Mounting Type | Voltage - Isolation | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Package / Case | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 1 | Isolated Module | OCP OVP Remote On/Off | 89 % | CE | Quarter Brick | 15 V | ITE (Commercial) | 0.5 in | 2.39 " | 60.6 mm | 55.9 mm | 12.7 mm | 2.2 " | Active Low Enable | Through Hole | 2250 VDC | 8 A | -55 C | 115 °C | 9 V | Quarter Brick | 120 W |
