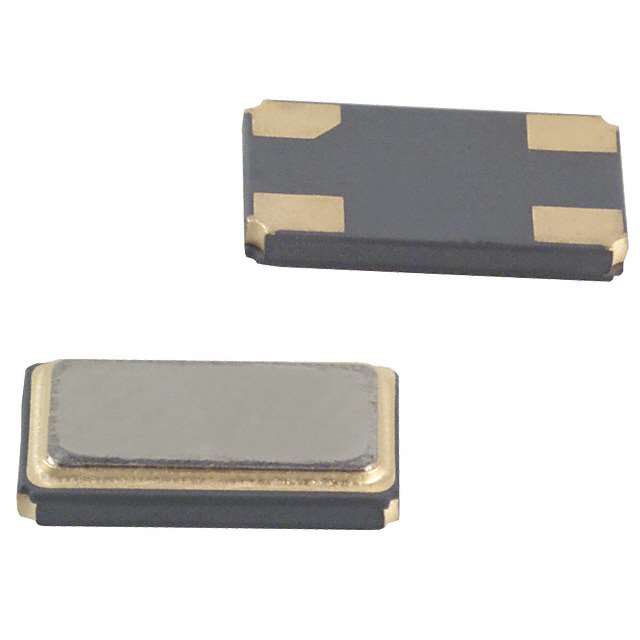

ECX-64 Series
Manufacturer: ECS Inc.
Beta
⌘K
CRYSTALS CRYSTAL 16.0000MHZ 20PF SMD,ECX-64B,+/-50PPM,+/-30PPM,20PF,60 OHM,FUNDAMENTAL,-10C - 70C,4-SMD, NO LEAD (DFN, LCC),0.236" L X 0.138" W (6.00MM X 3.50MM),0.043" (1.10MM)
| Part | Frequency Tolerance | Type | ESR (Equivalent Series Resistance) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Frequency | Operating Mode | Mounting Type | Package / Case | Load Capacitance | Frequency Stability | Supplier Device Package | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | 30 ppm | MHz Crystal | 40 Ohms | 0.236 in | 6 mm | 0.138 in | 3.5 mm | 70 °C | -10 °C | 16 MHz | Fundamental | Surface Mount | 4-SMD No Lead | 20 pF | 50 ppm | 4-SMD (6x3.5) | 0.043 " | 1.1 mm |
 ECS Inc. | 30 ppm | MHz Crystal | 30 Ohm | 0.236 in | 6 mm | 0.138 in | 3.5 mm | 70 °C | -10 °C | 24 MHz | Fundamental | Surface Mount | 4-SMD No Lead | 20 pF | 50 ppm | 4-SMD (6x3.5) | 0.043 " | 1.1 mm |
