29124 Series
Manufacturer: Phoenix Contact
Beta
⌘K

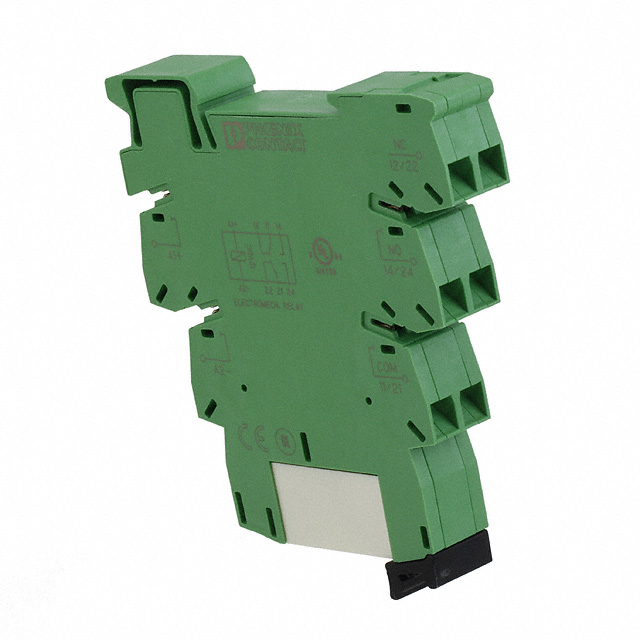

RELAY GEN PURPOSE DPDT 6A 12V
| Part | Coil Resistance | Contact Material | Features | Contact Rating (Current) | Operate Time | Coil Type | Release Time | Contact Form | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Mounting Type | Coil Current | Switching Voltage | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 364 Ohms | Silver Nickel (AgNi) | Lighted Indicator Socket Included | 6 A | 8 ms | Non Latching | 10 ms | DPDT (2 Form C) | Spring Terminal | 60 °C | -40 C | 12 VDC | DIN Rail | 33 mA | 250 VAC 250 VDC | General Purpose |
