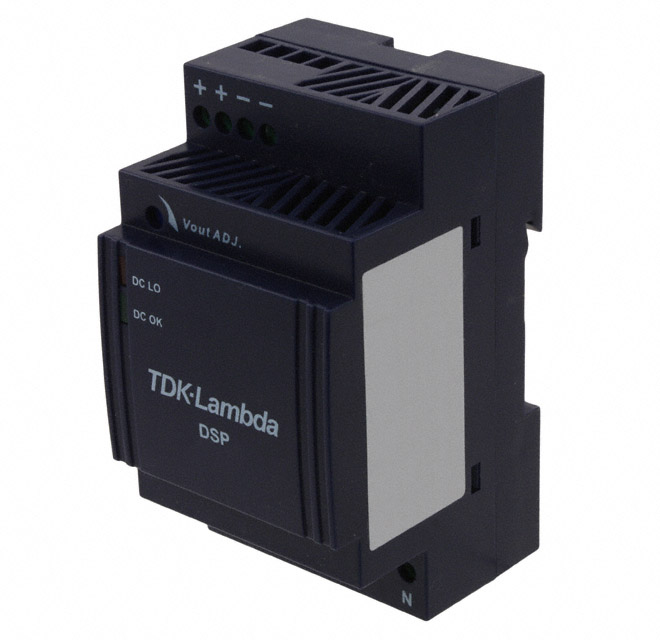

DSP30 Series

Catalog

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 15 W, 5 VDC, 3 A

Part	Input Type	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Voltage - Isolation	Approval Agency	DC Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Number of Outputs	DC Voltage - Input (Min) [Min]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Features	Applications
TDK Corporation DSP30-5	AC or DC	5 V	55.6 mm	90.9 mm	3.58 in	53.1 mm	2.19 in	2.09 "	15 W	3000 V	CE	370 V	3 A	1	120 V	90 VAC	264 VAC	74 %	-25 °C	71 °C	Adjustable Output Universal Input	ITE (Commercial)
TDK Corporation DSP30-24	AC or DC	24 V	55.6 mm	90.9 mm	3.58 in	53.1 mm	2.19 in	2.09 "	30 Watts	3000 V	CE	370 V	1.3 A	1	120 V	90 VAC	264 VAC	83 %	-25 °C	71 °C	Adjustable Output Universal Input	ITE (Commercial)
