N3432 Series

Catalog

CONN HEADER VERT 40POS 2.54MM

Part	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Number of Positions	Contact Shape	Current Rating (Amps)	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Insulation Color	Style	Fastening Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Material	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Mounting Type	Contact Finish - Mating	Contact Type	Termination	Number of Rows [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions [custom]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Insulation Height
3M Electronic Specialty N3432-6202RB	UL94 V-0	0.1 "	2.54 mm	0.652 in	16.56 mm	Tin	40	Square	1.75 A	Header	0.76 Ám	30 Áin	Copper Alloy	Black	Board to Board Cable	Latch Lock/Eject Hooks	0.24 in	6.1 mm	0.112 in	2.84 mm	0.1 in	2.54 mm	-55 C	105 ░C	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	17.27 mm	0.68 in	Through Hole	Gold	Male Pin	Solder	2	200 µin	5.08 µm
3M Electronic Specialty N3432-6502	UL94 V-0	0.1 "	2.54 mm	0.652 in	16.56 mm	Tin-Lead	40	Square	1.75 A	Header	0.76 Ám	30 Áin	Copper Alloy	Beige	Board to Board Cable	Latch Lock/Eject Hooks	0.24 in	6.1 mm	0.112 in	2.84 mm	0.1 in	2.54 mm	-55 C	105 ░C	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	17.27 mm	0.68 in	Through Hole	Gold	Male Pin	Solder	2	200 µin	5.08 µm
3M Electronic Specialty N3432-D302RB	UL94 V-0	0.1 "	2.54 mm			Tin		Square		Header Stackable (2)	0.76 Ám	30 Áin	Copper Alloy	Black	Board to Board Cable	Latch Lock/Eject Hooks Long	0.24 in	6.1 mm	0.112 in	2.84 mm	0.1 in	2.54 mm	-55 C	105 ░C	Shrouded - 3 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All			Right Angle Through Hole	Gold	Male Pin	Solder	2	200 µin	5.08 µm	40	16.76 mm	0.66 in

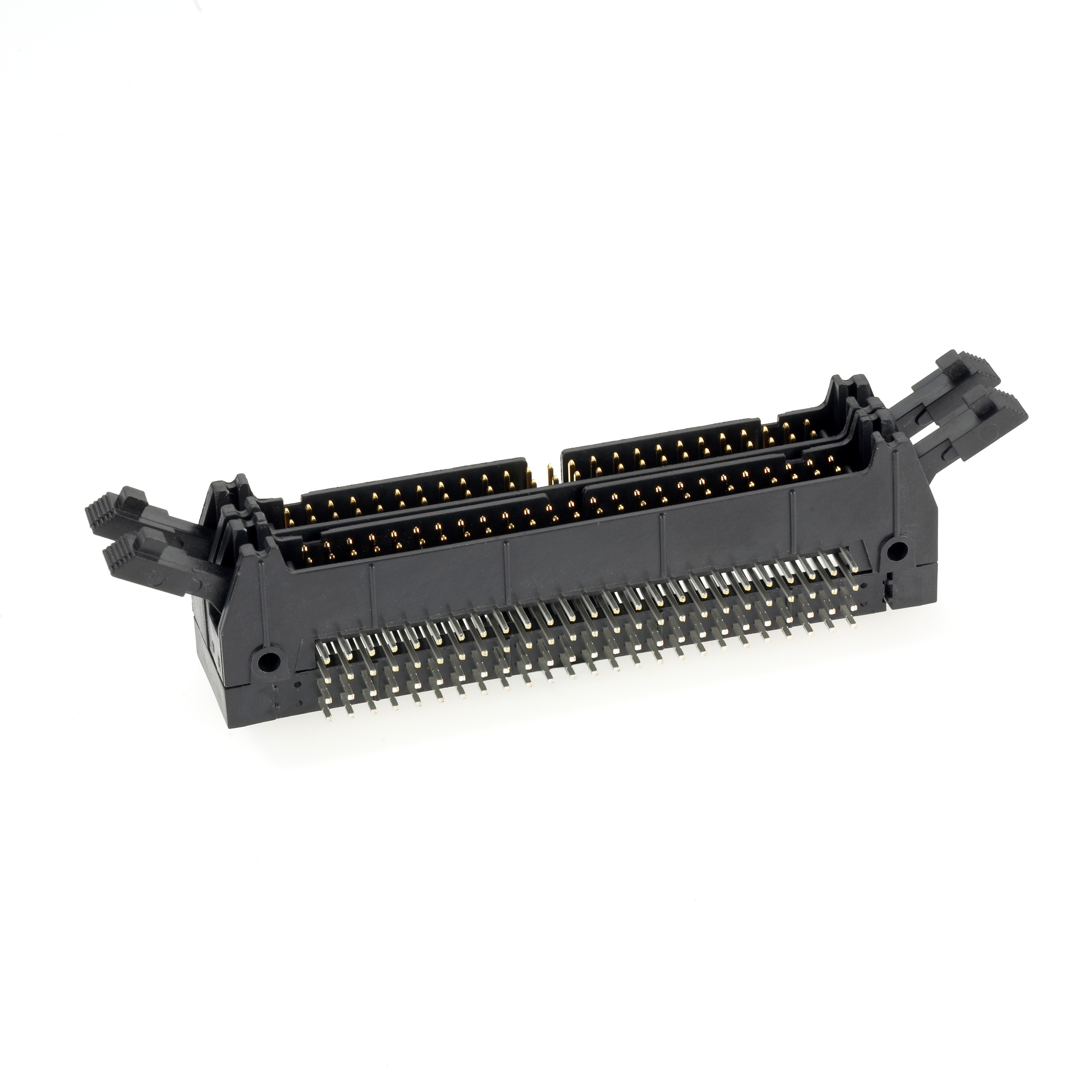

3M Electronic Specialty N3432-L202RB	UL94 V-0	0.1 "	2.54 mm			Tin	20	Square		Header Stackable (2)	0.76 Ám	30 Áin	Copper Alloy	Black	Board to Board Cable	Latch Lock/Eject Hooks	0.24 in	6.1 mm	0.112 in	2.84 mm	0.1 in	2.54 mm	-55 C	105 ░C	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All			Right Angle Through Hole	Gold	Male Pin	Solder	2	200 µin	5.08 µm	40	16.76 mm	0.66 in
3M Electronic Specialty N3432-2303RB	UL94 V-0	0.1 "	2.54 mm	0.695 in	17.65 mm	Tin	40	Square	1.75 A	Header	0.76 Ám	30 Áin	Copper Alloy	Black	Board to Board Cable	Latch Lock/Eject Hooks Long	0.24 in	6.1 mm			0.1 in	2.54 mm	-55 C	105 ░C	Shrouded - 3 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	17.27 mm	0.68 in	Through Hole	Gold	Male Pin	Solder	2	200 µin	5.08 µm				3.94 mm	0.155 "
3M Electronic Specialty N3432-5502	UL94 V-0	0.1 "	2.54 mm			Tin-Lead	40	Square	1.75 A	Header	0.76 Ám	30 Áin	Copper Alloy	Black	Board to Board Cable	Latch Lock/Eject Hooks	0.24 in	6.1 mm	0.112 in	2.84 mm	0.1 in	2.54 mm	-55 C	105 ░C	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	8.64 mm	0.34 in	Right Angle Through Hole	Gold	Male Pin	Solder	2	200 µin	5.08 µm
3M Electronic Specialty N3432-2002RB	UL94 V-0	0.1 "	2.54 mm	0.652 in	16.56 mm	Tin	40	Square	1.75 A	Header	0.76 Ám	30 Áin	Copper Alloy	Black	Board to Board Cable	Push-Pull	0.24 in	6.1 mm	0.112 in	2.84 mm	0.1 in	2.54 mm	-55 C	105 ░C	Shrouded - 3 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All			Through Hole	Gold	Male Pin	Solder	2	200 µin	5.08 µm		0.685 in				17.4 mm
3M Electronic Specialty N3432-6302RB	UL94 V-0	0.1 "	2.54 mm	0.652 in	16.56 mm	Tin	40	Square	1.75 A	Header	0.76 Ám	30 Áin	Copper Alloy	Black	Board to Board Cable	Latch Lock/Eject Hooks Long	0.24 in	6.1 mm	0.112 in	2.84 mm	0.1 in	2.54 mm	-55 C	105 ░C	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	17.27 mm	0.68 in	Through Hole	Gold	Male Pin	Solder	2	200 µin	5.08 µm
3M Electronic Specialty N3432-5202RB	UL94 V-0	0.1 "	2.54 mm			Tin	40	Square	1.75 A	Header	0.76 Ám	30 Áin	Copper Alloy	Black	Board to Board Cable	Latch Lock/Eject Hooks	0.24 in	6.1 mm	0.112 in	2.84 mm	0.1 in	2.54 mm	-55 C	105 ░C	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	8.64 mm	0.34 in	Right Angle Through Hole	Gold	Male Pin	Solder	2	200 µin	5.08 µm
3M Electronic Specialty N3432-1002RB	UL94 V-0	0.1 "	2.54 mm			Tin	40	Square	1.75 A	Header	0.76 Ám	30 Áin	Copper Alloy	Black	Board to Board Cable	Push-Pull	0.24 in	6.1 mm	0.112 in	2.84 mm	0.1 in	2.54 mm	-55 C	105 ░C	Shrouded - 3 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All			Right Angle Through Hole	Gold	Male Pin	Solder	2	200 µin	5.08 µm		7.87 mm	0.31 in
