EN2C7M Series

Catalog

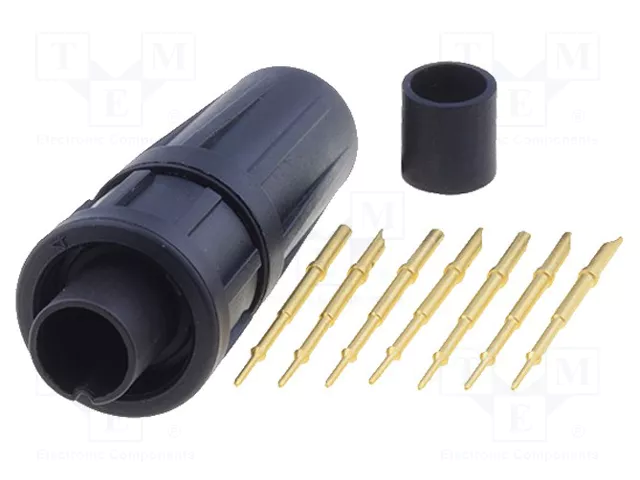

CIRCULAR CONNECTOR, EN2 SERIES, 7 CONTACTS, THERMOPLASTIC BODY

Part	Ingress Protection	Insert Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Termination	Mounting Type	Color	Contact Material	Connector Type	Applications	Fastening Type	Backshell Material, Plating	Primary Material	Number of Positions	Features	Contact Finish - Mating	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Shielding	Voltage Rating
SWITCHCRAFT/CONXALL EN2C7M26G1	IP66 IP67 IP68	Elastomer	UL94 V-0	85 °C	-40 C	Keyed	Crimp Solder Cup	Free Hanging (In-Line)	Black	Copper Alloy	Plug Male Pins	Communication Systems Industrial Marine Medical	Bayonet Lock	Thermoplastic	Plastic	7	Backshell Coupling Nut	Gold	2.54 mm	0.1 "	3.56 mm	0.14 in	Unshielded	125 VAC
SWITCHCRAFT/CONXALL EN2C7M26G3	IP66 IP67 IP68	Elastomer	UL94 V-0	85 °C	-40 C	Keyed	Crimp Solder Cup	Free Hanging (In-Line)	Black	Copper Alloy	Plug Male Pins	Communication Systems Industrial Marine Medical	Bayonet Lock	Thermoplastic	Plastic	7	Backshell Coupling Nut	Gold	4.57 mm	0.18 "	5.59 mm	0.22 in	Unshielded	125 VAC
SWITCHCRAFT/CONXALL EN2C7M26G2	IP66 IP67 IP68	Elastomer	UL94 V-0	85 °C	-40 C	Keyed	Crimp Solder Cup	Free Hanging (In-Line)	Black	Copper Alloy	Plug Male Pins	Communication Systems Industrial Marine Medical	Bayonet Lock	Thermoplastic	Plastic	7	Backshell Coupling Nut	Gold	3.56 mm	0.14 in	4.57 mm	0.18 "	Unshielded	125 VAC

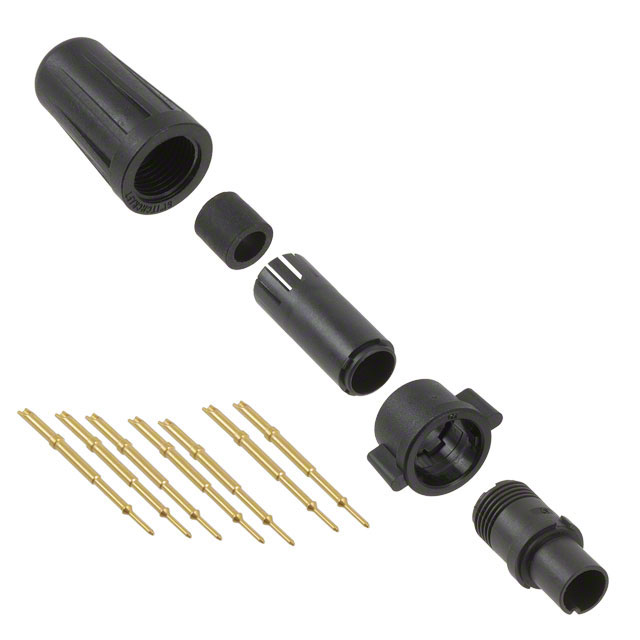

SWITCHCRAFT/CONXALL EN2C7M26G2W	IP66 IP67 IP68	Elastomer	UL94 V-0	85 °C	-40 C	Keyed	Crimp Solder Cup	Free Hanging (In-Line)	Black	Copper Alloy	Plug Male Pins	Communication Systems Industrial Marine Medical	Bayonet Lock	Thermoplastic	Plastic	7	Backshell Coupling Nut Winged	Gold	3.56 mm	0.14 in	4.57 mm	0.18 "	Unshielded	125 VAC
SWITCHCRAFT/CONXALL EN2C7M26G1W	IP66 IP67 IP68	Elastomer	UL94 V-0	85 °C	-40 C	Keyed	Crimp Solder Cup	Free Hanging (In-Line)	Black	Copper Alloy	Plug Male Pins	Communication Systems Industrial Marine Medical	Bayonet Lock	Thermoplastic	Plastic	7	Backshell Coupling Nut Winged	Gold	2.54 mm	0.1 "	3.56 mm	0.14 in	Unshielded	125 VAC
SWITCHCRAFT/CONXALL EN2C7M26DC	IP66 IP67 IP68	Elastomer	UL94 V-0	85 °C	-40 C	Keyed	Crimp Solder Cup	Free Hanging (In-Line)	Black	Copper Alloy	Plug Male Pins	Communication Systems Industrial Marine Medical	Bayonet Lock	Thermoplastic	Plastic	7	Backshell Coupling Nut	Gold					Unshielded	125 VAC
SWITCHCRAFT/CONXALL EN2C7M26G3W	IP66 IP67 IP68	Elastomer	UL94 V-0	85 °C	-40 C	Keyed	Crimp Solder Cup	Free Hanging (In-Line)	Black	Copper Alloy	Plug Male Pins	Communication Systems Industrial Marine Medical	Bayonet Lock	Thermoplastic	Plastic	7	Backshell Coupling Nut Winged	Gold	4.57 mm	0.18 "	5.59 mm	0.22 in	Unshielded	125 VAC
