US681 Series

Catalog

SENSOR 15PSIG 1/4NPT 4-20MA 2'

Part	Output [Min]	Output [Max]	Maximum Pressure	Maximum Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure	Operating Pressure	Accuracy	Pressure Type	Termination Style	Package / Case	Applications	Port Style	Port Size	Port Size	Port Size	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Features	Maximum Pressure [Max]	Maximum Pressure [Max]

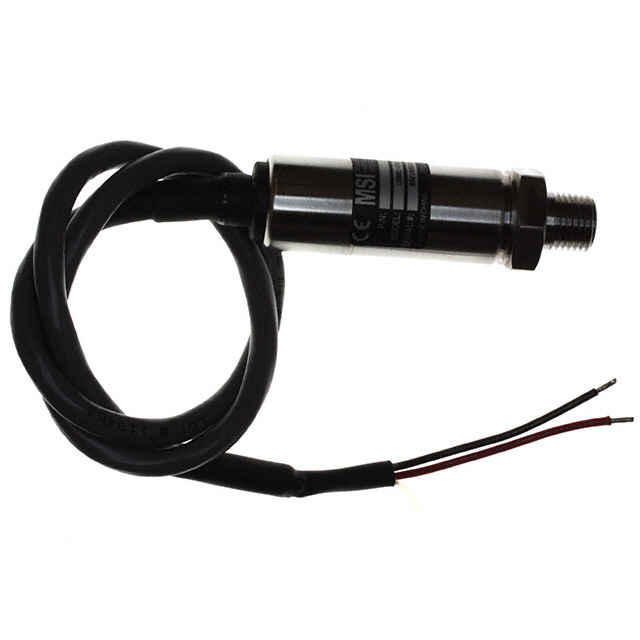

TE Connectivity AMP Connectors US681-C00005-015PG	4 mA	20 mA	310.26 kPa	45 PSI	125 °C	-50 °C	15 PSI	103.42 kPa	0.1 %	Vented Gauge	Cable	Cylinder	Industrial Automation	Threaded	Male NPT	0.25 "	0.25 in	10 VDC	30 VDC	Analog Current	Amplified Output
TE Connectivity AMP Connectors US681-C00005-015PA	4 mA	20 mA	310.26 kPa	45 PSI	125 °C	-50 °C	15 PSI	103.42 kPa	0.1 %		Cable	Cylinder	Industrial Automation	Threaded	Male NPT	0.25 "	0.25 in	10 VDC	30 VDC	Analog Current	Amplified Output

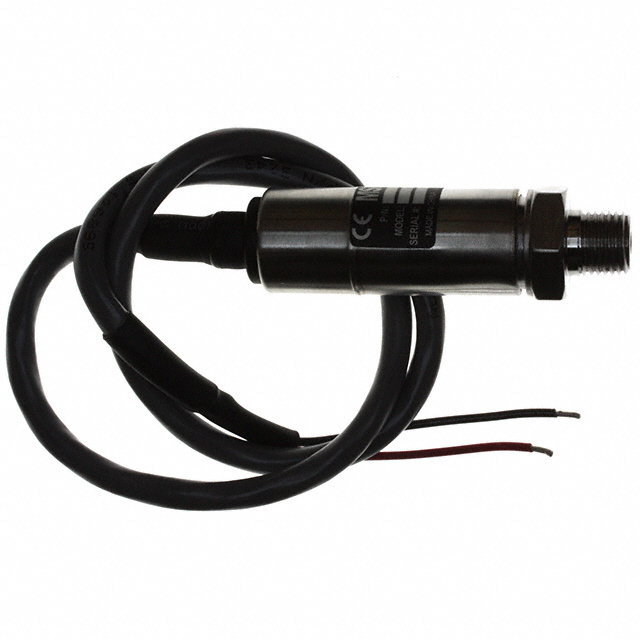

TE Connectivity AMP Connectors US681-C00005-100PG	4 mA	20 mA			125 °C	-50 °C	100 PSI	689.48 kPa	0.1 %	Vented Gauge	Cable	Cylinder	Industrial Automation	Threaded	Male NPT	0.25 "	0.25 in	10 VDC	30 VDC	Analog Current	Amplified Output	300 PSI	2068.43 kPa
