3502 Series

Catalog

RELAY REED DPST 500MA 12V

Part	Coil Resistance	Must Release Voltage	Release Time	Mounting Type	Coil Type	Seal Rating	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Termination Style	Operate Time	Contact Rating (Current)	Contact Form	Must Operate Voltage	Switching Voltage [Max]
COTO TECHNOLOGY 3502-12-711	2 kOhms	1 VDC	0.1 ms	Through Hole	Non Latching	Sealed - Hermetically	6 mA	85 °C	-20 ░C	12 VDC	PC Pin	750 µs	0.5 A	DPST-NO (2 Form A)	9 VDC	200 VDC 200 VAC

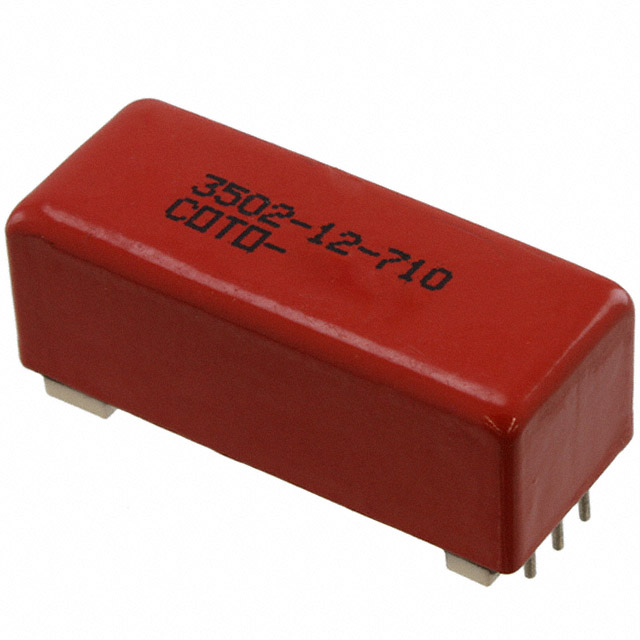

COTO TECHNOLOGY 3502-12-710	2 kOhms	1 VDC	0.1 ms	Through Hole	Non Latching	Sealed - Hermetically	6 mA	85 °C	-20 ░C	12 VDC	PC Pin	750 µs	0.5 A	DPST-NO (2 Form A)	9 VDC	200 VDC 200 VAC
COTO TECHNOLOGY 3502-05-710	350 Ohms	0.4 VDC	0.1 ms	Through Hole	Non Latching	Sealed - Hermetically	14.3 mA	85 °C	-20 ░C	5 VDC	PC Pin	750 µs	0.5 A	DPST-NO (2 Form A)	3.8 VDC	200 VDC 200 VAC
COTO TECHNOLOGY 3502-05-810	350 Ohms	0.4 VDC	0.1 ms	Through Hole	Non Latching	Sealed - Hermetically	14.3 mA	85 °C	-20 ░C	5 VDC	PC Pin	750 µs	0.5 A	DPST-NO (2 Form A)	3.8 VDC	200 VDC 200 VAC
COTO TECHNOLOGY 3502-12-510	2 kOhms	1 VDC	0.1 ms	Through Hole	Non Latching	Sealed - Hermetically	6 mA	85 °C	-20 ░C	12 VDC	PC Pin	750 µs	0.5 A	DPST-NO (2 Form A)	9 VDC	200 VDC 200 VAC
COTO TECHNOLOGY 3502-05-811	350 Ohms	0.4 VDC	0.1 ms	Through Hole	Non Latching	Sealed - Hermetically	14.3 mA	85 °C	-20 ░C	5 VDC	PC Pin	750 µs	0.5 A	DPST-NO (2 Form A)	3.8 VDC	200 VDC 200 VAC
COTO TECHNOLOGY 3502-12-810	2 kOhms	1 VDC	0.1 ms	Through Hole	Non Latching	Sealed - Hermetically	6 mA	85 °C	-20 ░C	12 VDC	PC Pin	750 µs	0.5 A	DPST-NO (2 Form A)	9 VDC	200 VDC 200 VAC
COTO TECHNOLOGY 3502-05-511	350 Ohms	0.4 VDC	0.1 ms	Through Hole	Non Latching	Sealed - Hermetically	14.3 mA	85 °C	-20 ░C	5 VDC	PC Pin	750 µs	0.5 A	DPST-NO (2 Form A)	3.8 VDC	200 VDC 200 VAC
COTO TECHNOLOGY 3502-05-911	350 Ohms	0.4 VDC	0.1 ms	Through Hole	Non Latching	Sealed - Hermetically	14.3 mA	85 °C	-20 ░C	5 VDC	PC Pin	750 µs	0.5 A	DPST-NO (2 Form A)	3.8 VDC	200 VDC 200 VAC
COTO TECHNOLOGY 3502-05-711	350 Ohms	0.4 VDC	0.1 ms	Through Hole	Non Latching	Sealed - Hermetically	14.3 mA	85 °C	-20 ░C	5 VDC	PC Pin	750 µs	0.5 A	DPST-NO (2 Form A)	3.8 VDC	200 VDC 200 VAC
