AON642 Series

Catalog

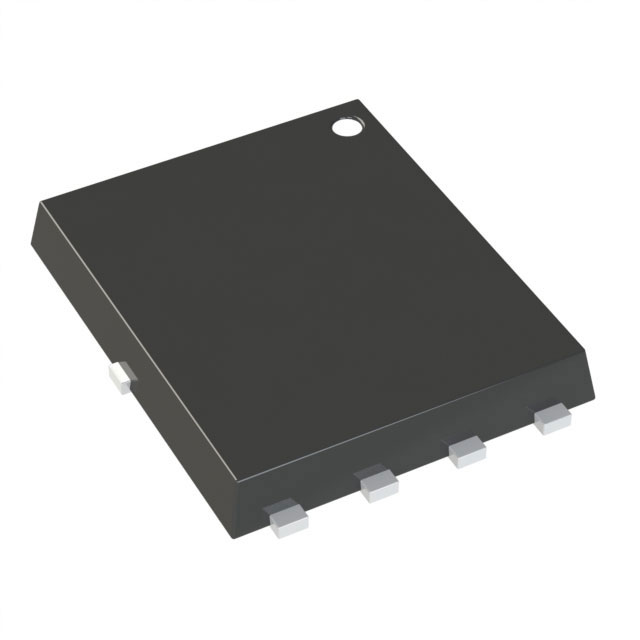

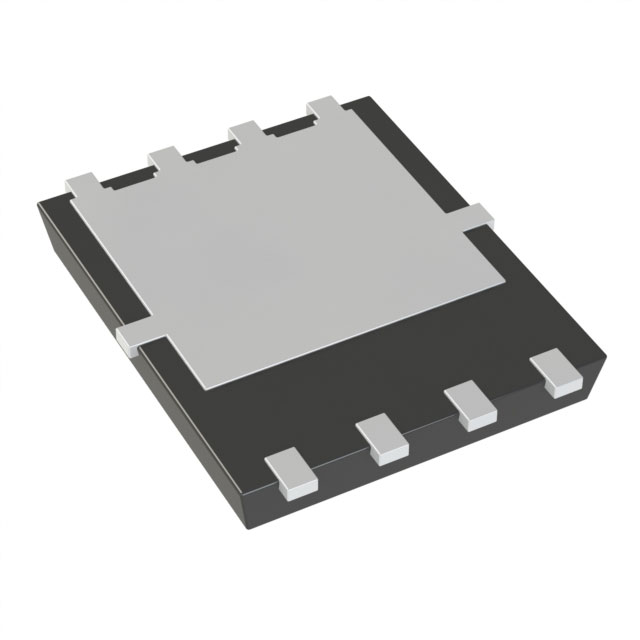

MOSFET N-CH 30V 11A/41A 8DFN

Part	Rds On (Max) @ Id, Vgs	Technology	Input Capacitance (Ciss) (Max) @ Vds [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Mounting Type	FET Type	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs
Alpha & Omega Semiconductor Inc. AON6424	8.5 mOhm	MOSFET (Metal Oxide)	1900 pF	150 °C	-55 °C	12 V	4.5 V 10 V	8-PowerSMD Flat Leads	Surface Mount	N-Channel	8-DFN (5x6)	11 A 41 A	1.7 V	30 V	2 W 25 W	32 nC
Alpha & Omega Semiconductor Inc. AON6426	5.5 mOhm	MOSFET (Metal Oxide)		150 °C	-55 °C	20 V	4.5 V 10 V	8-PowerSMD Flat Leads	Surface Mount	N-Channel	8-DFN (5x6)	14 A 65 A	2.5 V	30 V	2 W 42 W		2300 pF	45 nC
