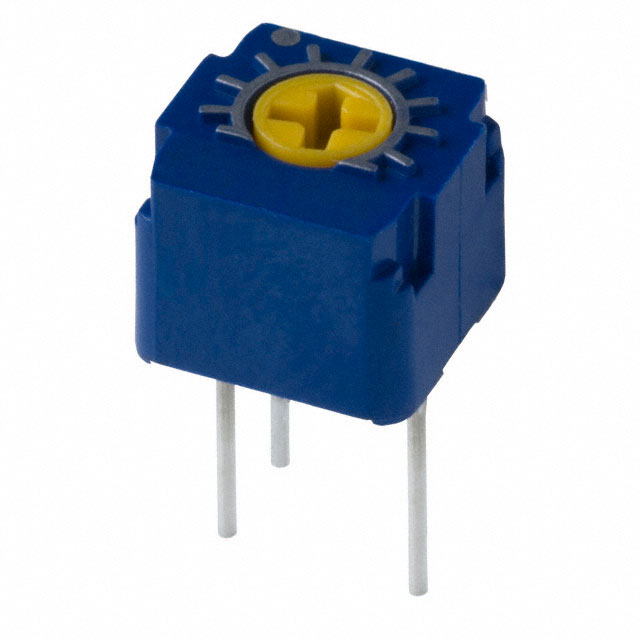

CT6ETP Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 50K OHM 0.5W PC PIN TOP

Part	Power (Watts)	Power (Watts)	Temperature Coefficient	Resistive Material	Termination Style	Adjustment Type	Number of Turns	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Resistance
Nidec Components Corporation CT-6ETP503	0.5 W	0.5 W	100 ppm/°C	Cermet	PC Pins	Top Adjustment	1	10 %	7 mm	0.276 in	0.276 in	7 mm	Through Hole	50 kOhms
Nidec Components Corporation CT-6ETP500	0.5 W	0.5 W	100 ppm/°C	Cermet	PC Pins	Top Adjustment	1	10 %	7 mm	0.276 in	0.276 in	7 mm	Through Hole	50 Ohms
Nidec Components Corporation CT-6ETP103	0.5 W	0.5 W	100 ppm/°C	Cermet	PC Pins	Top Adjustment	1	10 %	7 mm	0.276 in	0.276 in	7 mm	Through Hole	10000 Ohms
Nidec Components Corporation CT-6ETP200	0.5 W	0.5 W	250 ppm/°C	Cermet	PC Pins	Top Adjustment	1	10 %	7 mm	0.276 in	0.276 in	7 mm	Through Hole	20 Ohms
Nidec Components Corporation CT-6ETP204	0.5 W	0.5 W	100 ppm/°C	Cermet	PC Pins	Top Adjustment	1	10 %	7 mm	0.276 in	0.276 in	7 mm	Through Hole	200000 Ohms
Nidec Components Corporation CT-6ETP101	0.5 W	0.5 W	100 ppm/°C	Cermet	PC Pins	Top Adjustment	1	10 %	7 mm	0.276 in	0.276 in	7 mm	Through Hole	100 Ohms
Nidec Components Corporation CT-6ETP104	0.5 W	0.5 W	100 ppm/°C	Cermet	PC Pins	Top Adjustment	1	10 %	7 mm	0.276 in	0.276 in	7 mm	Through Hole	100 kOhms
Nidec Components Corporation CT-6ETP105	0.5 W	0.5 W	100 ppm/°C	Cermet	PC Pins	Top Adjustment	1	10 %	7 mm	0.276 in	0.276 in	7 mm	Through Hole	1 MOhms
Nidec Components Corporation CT-6ETP504	0.5 W	0.5 W	100 ppm/°C	Cermet	PC Pins	Top Adjustment	1	10 %	7 mm	0.276 in	0.276 in	7 mm	Through Hole
Nidec Components Corporation CT-6ETP205	0.5 W	0.5 W	100 ppm/°C	Cermet	PC Pins	Top Adjustment	1	10 %	7 mm	0.276 in	0.276 in	7 mm	Through Hole	2 MOhms
